| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom 2-13000 Strands High Frequency Copper Litz Wire For Winding | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.2mm | Conductor: | Copper |
| Key Word: | Custom 2-13000 Strands High Frequency Copper Litz Wire For Winding | No. Of Strands: | 40 |
| Thermal Rating: | 155 | ||
| Highlight: | High Frequency Copper Litz Wire,Winding Copper Litz Wire,Custom Copper Litz Wire |
||

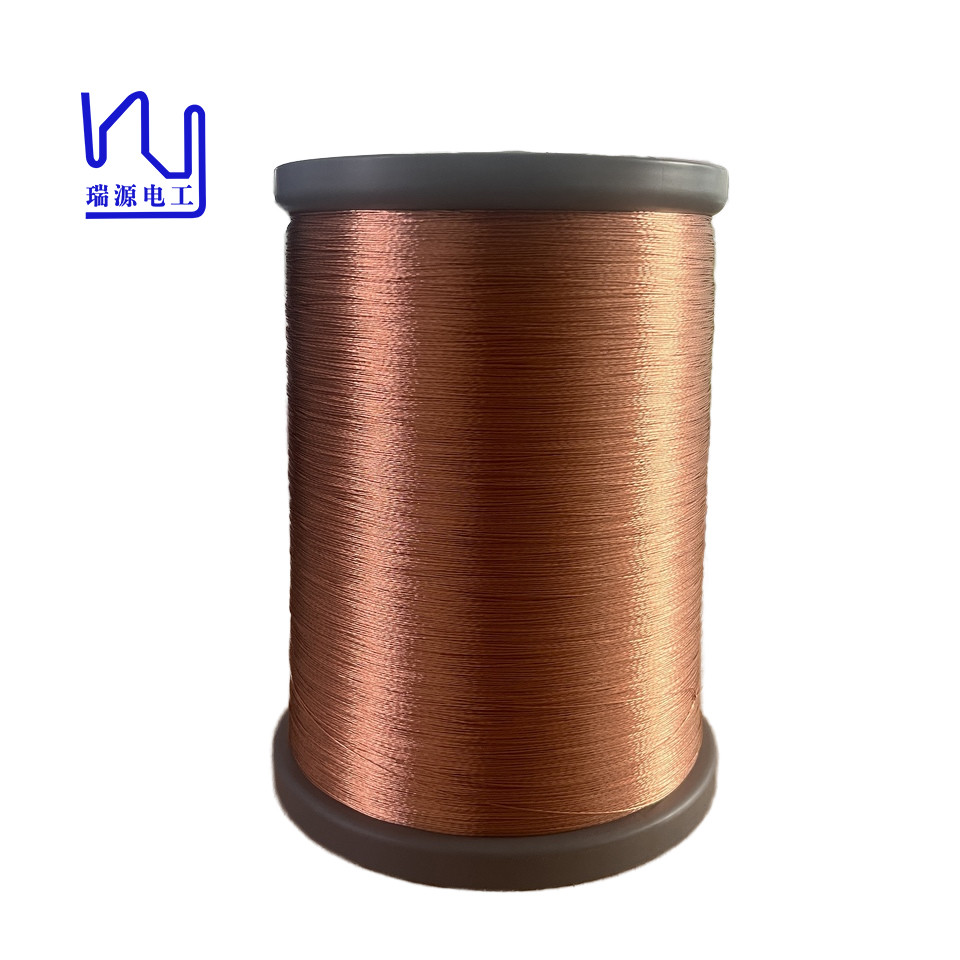

Custom 2-13000 Strands High Frequency Copper Litz Wire For Winding
Furthermore, the use of Litz wire in high-frequency applications extends beyond transformers. It is also widely used in inductors, motors, and other electronic devices where high efficiency and low losses are critical. The flexibility of our Litz wire allows for easy routing and installation in tight spaces, making it a versatile choice for engineers and designers. Whether you are developing cutting-edge audio equipment, RF amplifiers, or power supplies, our high-frequency Litz wire can provide you with the reliability and performance you need to succeed.
| Outgoing test of stranded wire | Spec: 0.2x4 | Model: 2UEWF | |
| Conductor diameter(mm) | 0.20±0.003 | 0.198 | 0.200 |
| Overall diameter (mm) | 0.216-0.231 | 0.220 | 0.223 |
| Pitch(mm) | 14±2 | OK | OK |
| Overall Diameter | Max.0.53 | 0.51 | 0.51 |
| Max pinholes Faults/6m | Max. 6 | 0 | 0 |
| Max resistance (Ω/m at20℃) | Max. 0.1443 | 0.1376 | 0.1371 |
| Breakdown voltage Mini (V) | 1600 | 5700 | 5800 |
