| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.2mm High Frequency Litz Wire 4 Stranded Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.2mm | Conductor: | Copper |
| Key Word: | 0.2mm High Frequency Litz Wire 4 Stranded Copper Wire | No. Of Strands: | 40 |
| Thermal Rating: | 155 | ||
| Highlight: | 4 Stranded Copper Litz Wire,High Frequency Copper Litz Wire,0.2mm Copper Litz Wire |
||

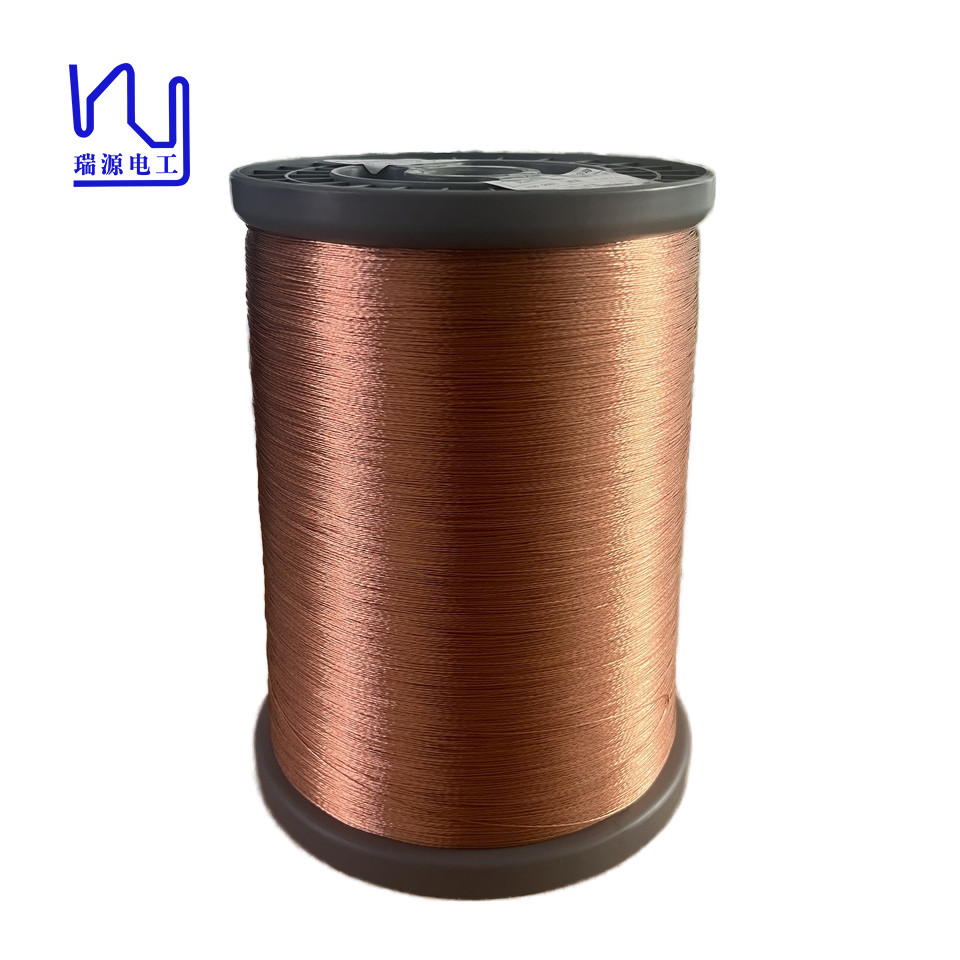

0.2mm high frequency litz wire 4 Stranded Copper Wire
High frequency Litz wire is of particular interest in transformer applications. In high frequency transformers, energy transfer efficiency is critical. Traditional solid wires experience increased resistance and losses due to the skin effect, as alternating current tends to flow near the surface of the conductor. By using Litz wire, which is made up of multiple insulated strands, the effective surface area is increased, allowing for better current distribution and reduced losses. This results in improved efficiency and performance, making our high frequency Litz wire an essential component of modern transformer design.
| Outgoing test of stranded wire | Spec: 0.2x4 | Model: 2UEWF | |
| Conductor diameter(mm) | 0.20±0.003 | 0.198 | 0.200 |
| Overall diameter (mm) | 0.216-0.231 | 0.220 | 0.223 |
| Pitch(mm) | 14±2 | OK | OK |
| Overall Diameter | Max.0.53 | 0.51 | 0.51 |
| Max pinholes Faults/6m | Max. 6 | 0 | 0 |
| Max resistance (Ω/m at20℃) | Max. 0.1443 | 0.1376 | 0.1371 |
| Breakdown voltage Mini (V) | 1600 | 5700 | 5800 |
