| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.03mm | Number Of Strands: | 1080 |
|---|---|---|---|
| Jacket: | Nylon | Other Option Of Jackets: | Polyester, Natural Silk |
| Conductor Material: | Copper | Key Word: | Custom Multi-strands 1080 Silk Covered Litz Wire For Transformer Winding |
| Product Name: | Custom Multi-strands 1080 Silk Covered Litz Wire For Transformer Winding | ||
| Highlight: | Transformer Winding Litz Wire,Custom Multi-strands Litz Wire,Silk Covered Litz Wire |
||

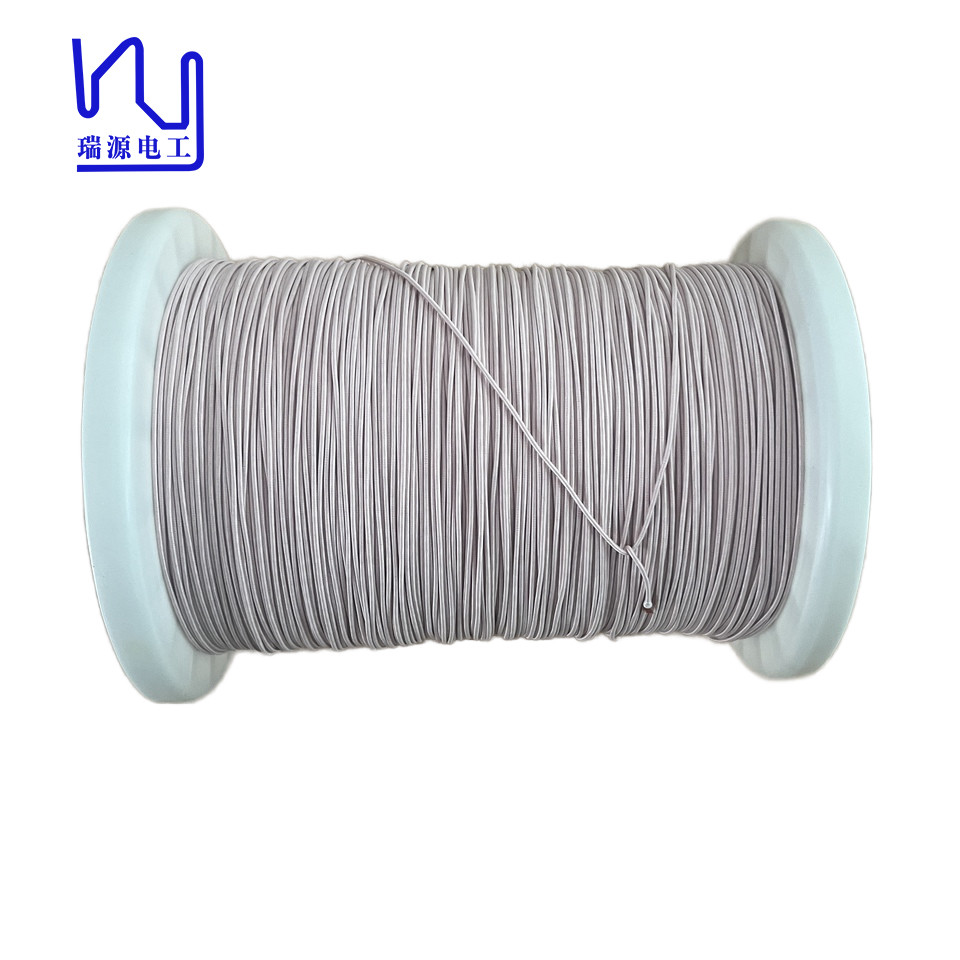

Custom Multi-strands 1080 Silk Covered Litz Wire For Transformer Winding
As the demand for electric vehicles continues to grow, the need for high-performance cabling solutions is becoming increasingly important. The silk covered litz wires are designed to meet the stringent requirements of electric motors, battery management systems and charging infrastructure, providing the necessary electrical conductivity and thermal properties to support the next generation of sustainable transportation.
|
Item |
Technical requests |
Sample 1 |
Sample 2 |
Sample 3 |
|
Single wire diameter mm |
0.110-0.125 |
0.113 |
0.111 |
0.112 |
|
Conductor Diameter mm |
0.100±0.003 |
0.10 |
0.10 |
0.10 |
|
O.D. mm |
Max.1.48 |
1.27 |
1.31 |
1.34 |
|
Pitch |
17±5 |
√ |
√ |
√ |
|
Resistance Ω/Km(20℃) |
Max.28.35 |
√ |
√ |
√ |
|
Breakdown Voltage V |
Min.1100 |
2700 |
2700 |
2600 |
|
Pinhole |
84 faults/5m |
3 |
4 |
5 |
|
Solerability |
390 ±5C° 6s |
ok |
ok |
ok |
