| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.03mm | Number Of Strands: | 30 |
|---|---|---|---|
| Jacket: | Nylon | Other Option Of Jackets: | Polyester, Natural Silk |
| Conductor Material: | Copper | Key Word: | 2USTC-F 30x0.03 High Frequency Silk Covered Litz Wire For Transformer |
| Product Name: | 2USTC-F 30x0.03 High Frequency Silk Covered Litz Wire For Transformer | ||
| Highlight: | Transformer Silk Covered Litz Wire,2USTC-F Silk Covered Litz Wire,Transformer Ustc Litz Wire |
||

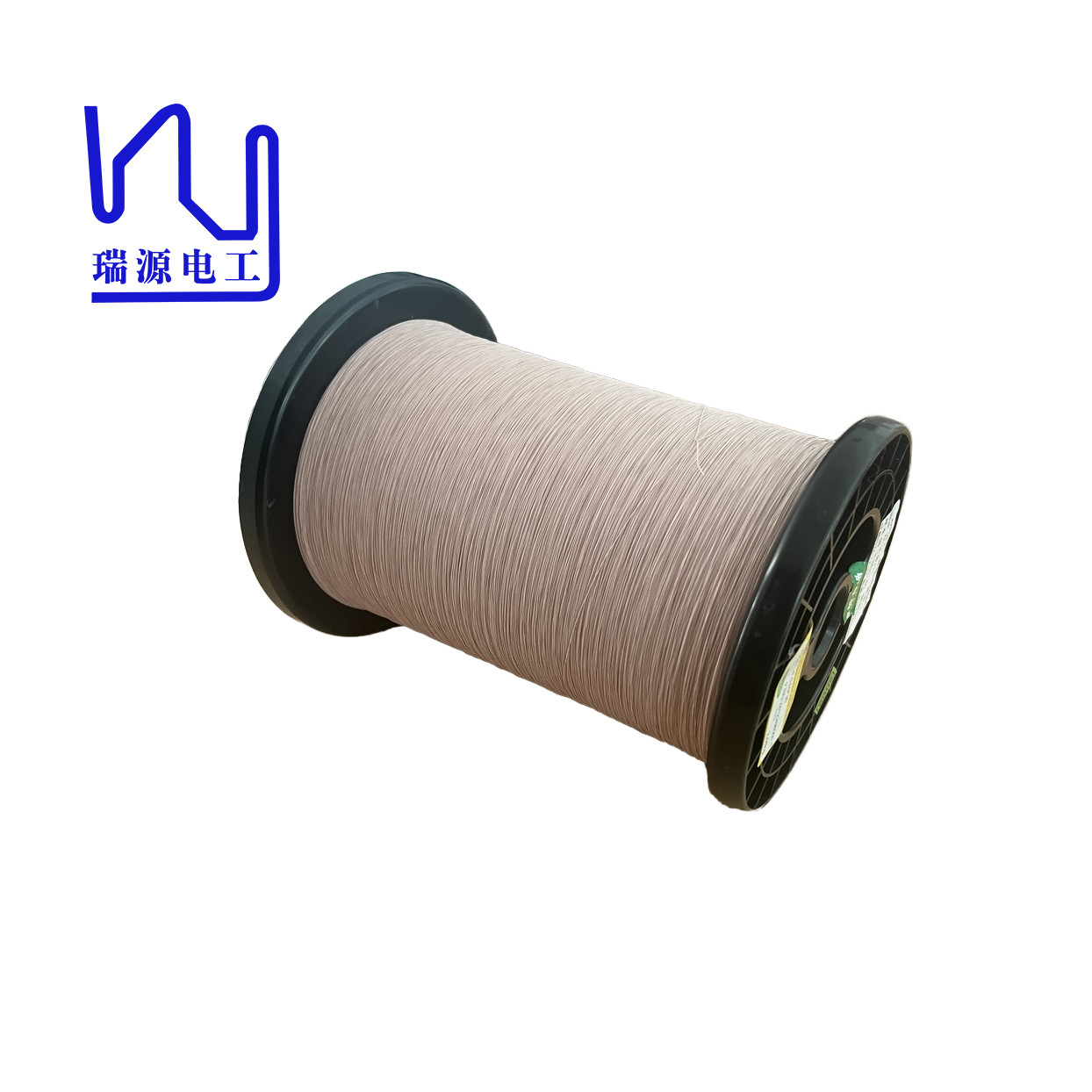

2USTC-F 30x0.03 High Frequency Silk Covered Litz Wire For Transformer
This stranded wire is carefully wrapped with a nylon yarn on the outer layer to provide enhanced protection and insulation. The Litz wire consists of 30 strands of ultra-fine 0.03mm enameled copper wire, ensuring optimal conductivity and minimal skin effect at high frequencies. For those seeking a finer gauge, we offer the option of using 0.025mm wire.
|
Item |
Technical requests |
Sample 1 |
Sample 2 |
Sample 3 |
|
Single wire diameter mm |
0.110-0.125 |
0.113 |
0.111 |
0.112 |
|
Conductor Diameter mm |
0.100±0.003 |
0.10 |
0.10 |
0.10 |
|
O.D. mm |
Max.1.48 |
1.27 |
1.31 |
1.34 |
|
Pitch |
17±5 |
√ |
√ |
√ |
|
Resistance Ω/Km(20℃) |
Max.28.35 |
√ |
√ |
√ |
|
Breakdown Voltage V |
Min.1100 |
2700 |
2700 |
2600 |
|
Pinhole |
84 faults/5m |
3 |
4 |
5 |
|
Solerability |
390 ±5C° 6s |
ok |
ok |
ok |
