| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.1mm | Number Of Strands: | 80 |
|---|---|---|---|
| Jacket: | Natural Silk | Other Option Of Jackets: | Polyester, Nylon |
| Conductor Material: | Copper | Key Word: | 0.1mmx80 Multiple Strands Real Silk Covered Litz WireCustom Natural Silk Coated Litz Wire For 0.1mmx80 |
| Product Name: | Custom Natural Silk Coated Litz Wire For 0.1mmx80 | ||
| Highlight: | Custom Natural Silk Coated Litz Wire,Custom Litz Wire,0.1mmx80 Litz Wire |
||

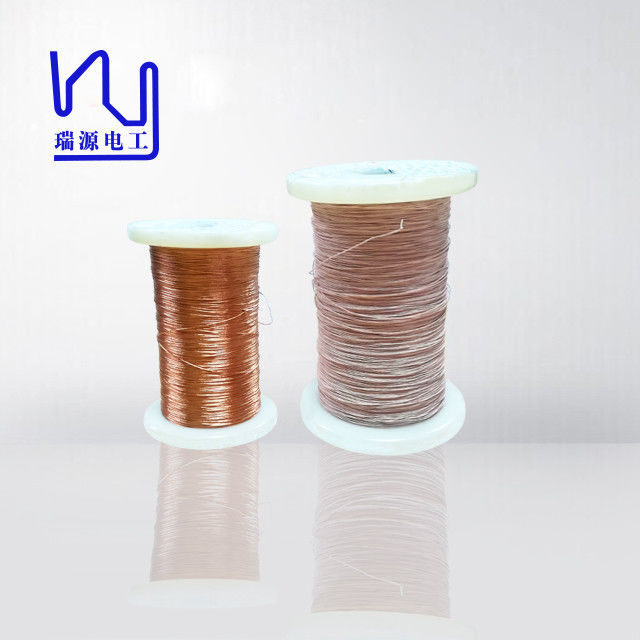

Custom Natural Silk Coated Litz Wire For 0.1mmx80
Our custom high-frequency Silk ocvered Litz wire represents the pinnacle of audio engineering and craftsmanship. Featuring a natural silk outer layer, 80-strand enameled copper wire, and small-batch customization options, this wire is designed for those who refuse to compromise on quality.
|
Type Conductor diameter*Strand number |
2USTC-F 0.10*80 | ||
|
Single wire(strand)
|
Conductor diameter(mm) | 0.100±0.003 | |
| overall diameter (mm) | 0.107-0.125 | ||
| Thermal Class(℃) | 155 | ||
|
Strands construction
|
Strands number | 80 | |
| Pitch(mm) | 29±5 | ||
| bunching direction | S | ||
|
Insulation layer
|
Material type | Natural silk | |
| Material specs(mm*mm or D) | 300 | ||
| Times of Wrapping | 1 | ||
| Overlap(%) or thickness(mm),mini | 0.02 | ||
| Wrapping direction | S | ||
|
Characteristics
|
Overall Diameter |
Nominal (mm) | 1.20 |
| Max(mm) | 1.28 | ||
| Max pinholes Faults/6m | 40 | ||
| Max resistance (Ω/Km at20℃) | 29.76 | ||
| Breakdown voltage Mini (V) | 1100 | ||
