| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.1mm | Number Of Strands: | 80 |
|---|---|---|---|
| Jacket: | Natural Silk | Other Option Of Jackets: | Polyester, Nylon |
| Conductor Material: | Copper | Key Word: | Custom Nature Silk Covered Litz Wire Green Color Enameled Copper Litz Wire For Audio |
| Product Name: | Custom Nature Silk Covered Litz Wire Green Color Enameled Copper Litz Wire For Audio | ||
| Highlight: | Audio Enameled Copper Litz Wire,Custom Nature Silk Covered Litz Wire,Green Color Enameled Copper Litz Wire |
||

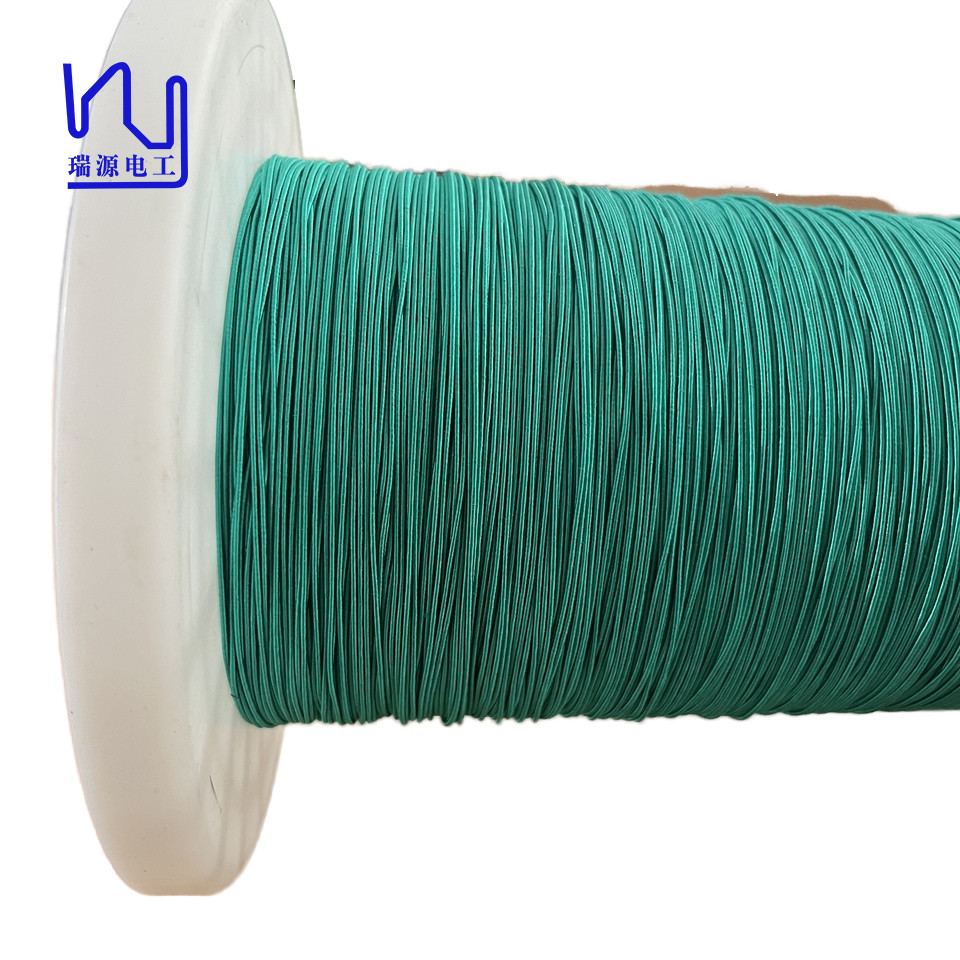

Custom Nature Silk Covered Litz Wire Green Color Enameled Copper Litz Wire For Audio
Being able to customise wire in small batches, with a minimum order of just 10kg, means you can experiment with different designs and applications without the hassle of mass production. This flexibility is particularly beneficial for boutique audio manufacturers and hobbyists who value quality and individuality.
|
Type Conductor diameter*Strand number |
2USTC-F 0.10*80 | ||
|
Single wire(strand)
|
Conductor diameter(mm) | 0.100±0.003 | |
| overall diameter (mm) | 0.107-0.125 | ||
| Thermal Class(℃) | 155 | ||
|
Strands construction
|
Strands number | 80 | |
| Pitch(mm) | 29±5 | ||
| bunching direction | S | ||
|
Insulation layer
|
Material type | Natural silk | |
| Material specs(mm*mm or D) | 300 | ||
| Times of Wrapping | 1 | ||
| Overlap(%) or thickness(mm),mini | 0.02 | ||
| Wrapping direction | S | ||
|
Characteristics
|
Overall Diameter |
Nominal (mm) | 1.20 |
| Max(mm) | 1.28 | ||
| Max pinholes Faults/6m | 40 | ||
| Max resistance (Ω/Km at20℃) | 29.76 | ||
| Breakdown voltage Mini (V) | 1100 | ||
