| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.1mm | Number Of Strands: | 80 |
|---|---|---|---|
| Jacket: | Natural Silk | Other Option Of Jackets: | Polyester, Nylon |
| Conductor Material: | Copper | Key Word: | 0.1mmx 80 Natural Silk Covered Litz Wire Green/ Red Wire |
| Product Name: | 0.1mmx 80 Natural Silk Covered Litz Wire Green/ Red Wire | ||
| Highlight: | Red Natural Silk Covered Litz Wire,Green Natural Silk Covered Litz Wire,Green Ustc Litz Wire |
||

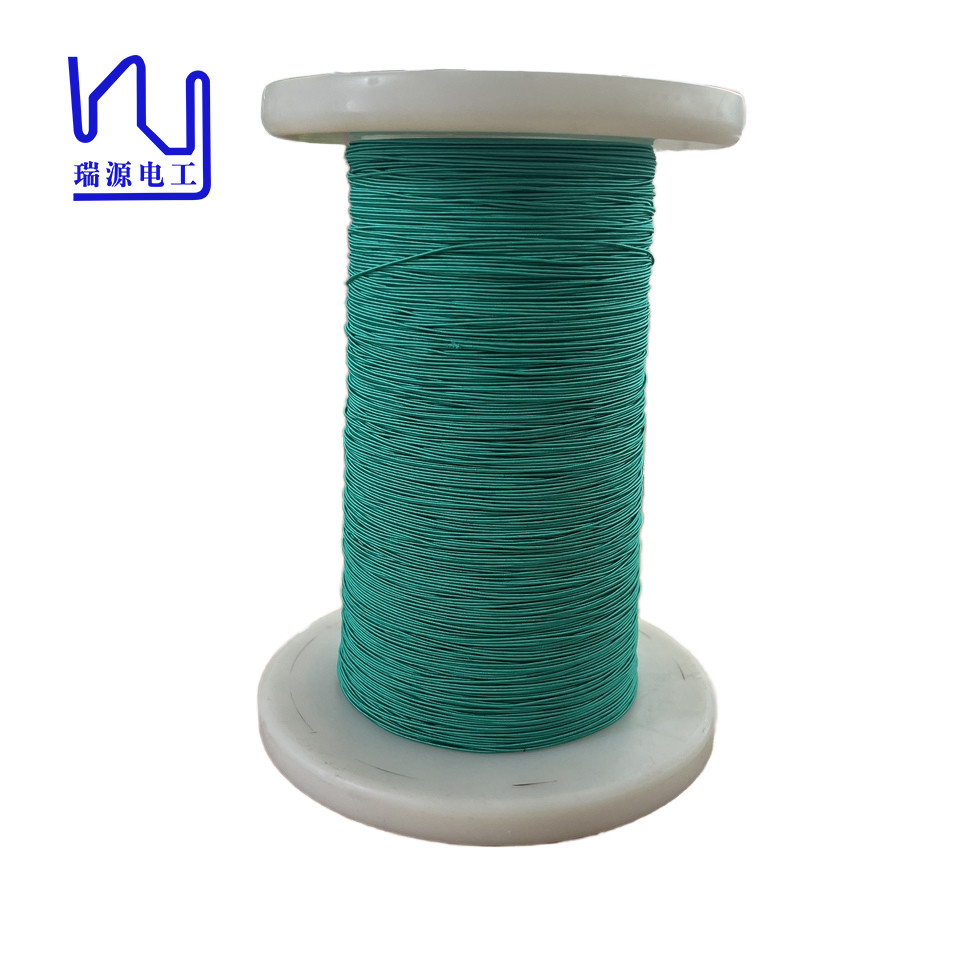

0.1mmx 80 Natural Silk Covered Litz Wire Green/ Red Wire
The inner core consists of 80 strands of 0.1mm enameled copper wire, designed to minimize signal loss and maximize fidelity. This unique combination of materials makes our Silk Covered Litz Wire an excellent choice for high-end audio applications.
Whether you design speakers, amplifiers, or other audio components, our silk-wrapped Litz wire can help you achieve the clarity and richness that discerning listeners crave.
Type Conductor diameter*Strand number | 2USTC-F 0.10*80 | ||
Single wire(strand)
| Conductor diameter(mm) | 0.100±0.003 | |
| overall diameter (mm) | 0.107-0.125 | ||
| Thermal Class(℃) | 155 | ||
Strands construction
| Strands number | 80 | |
| Pitch(mm) | 29±5 | ||
| bunching direction | S | ||
Insulation layer
| Material type | Natural silk | |
| Material specs(mm*mm or D) | 300 | ||
| Times of Wrapping | 1 | ||
| Overlap(%) or thickness(mm),mini | 0.02 | ||
| Wrapping direction | S | ||
Characteristics
| Overall Diameter | Nominal (mm) | 1.20 |
| Max(mm) | 1.28 | ||
| Max pinholes Faults/6m | 40 | ||
| Max resistance (Ω/Km at20℃) | 29.76 | ||
| Breakdown voltage Mini (V) | 1100 | ||
