| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.1mm | Number Of Strands: | 80 |
|---|---|---|---|
| Jacket: | Natural Silk | Other Option Of Jackets: | Polyester, Nylon |
| Conductor Material: | Copper | Key Word: | Green Natural Silk Covered Ltiz Wire 80x0.1mm Multiple Stranded Wire For Audio |
| Product Name: | Green Natural Silk Covered Ltiz Wire 80x0.1mm Multiple Stranded Wire For Audio | ||
| Highlight: | Green Ustc Litz Wire,Natural Ustc Litz Wire,Audio Ustc Litz Wire |
||

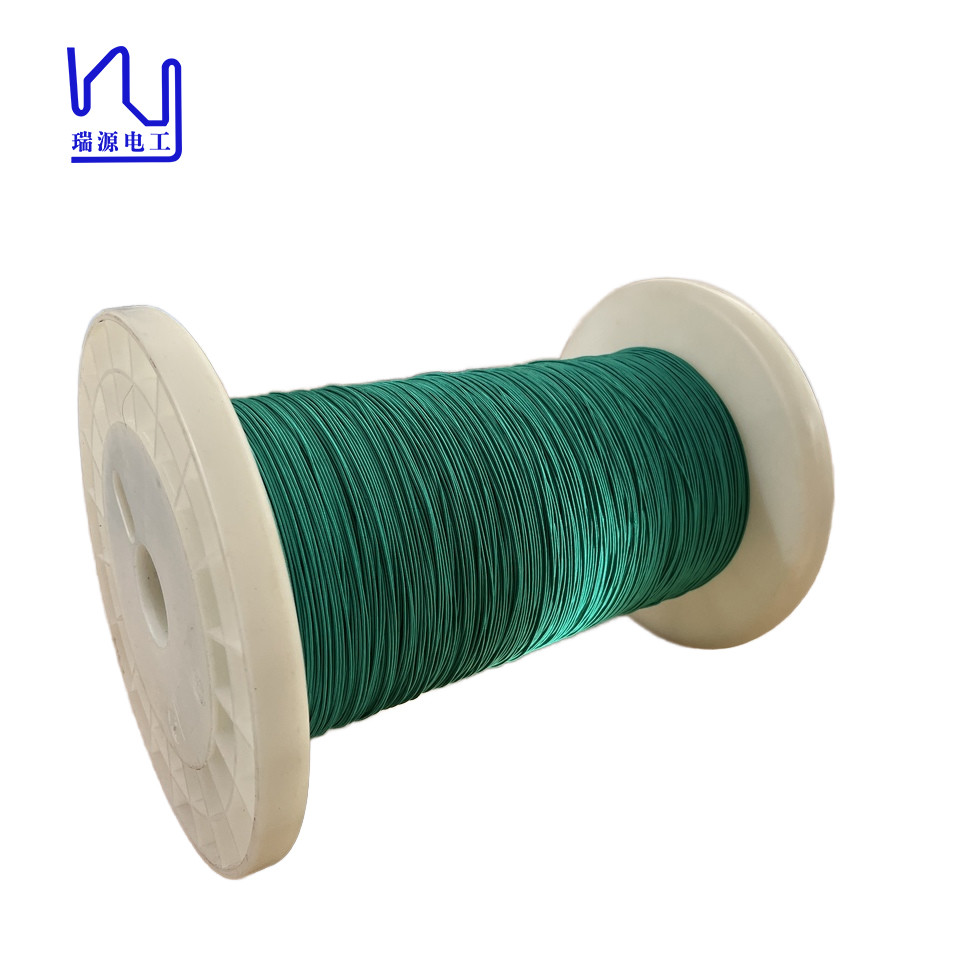

Green Natural Silk Covered Ltiz Wire 80x0.1mm Multiple Stranded Wire For Audio
This Silk Covered Litz Wire is the premium choice for audiophiles and audio equipment manufacturers seeking to elevate sound quality. Carefully crafted from natural silk, this custom high frequency wire features an outer layer that is not only aesthetically pleasing, but also enhances the overall performance of your audio product.
Type Conductor diameter*Strand number | 2USTC-F 0.10*80 | ||
Single wire(strand)
| Conductor diameter(mm) | 0.100±0.003 | |
| overall diameter (mm) | 0.107-0.125 | ||
| Thermal Class(℃) | 155 | ||
Strands construction
| Strands number | 80 | |
| Pitch(mm) | 29±5 | ||
| bunching direction | S | ||
Insulation layer
| Material type | Natural silk | |
| Material specs(mm*mm or D) | 300 | ||
| Times of Wrapping | 1 | ||
| Overlap(%) or thickness(mm),mini | 0.02 | ||
| Wrapping direction | S | ||
Characteristics
| Overall Diameter | Nominal (mm) | 1.20 |
| Max(mm) | 1.28 | ||
| Max pinholes Faults/6m | 40 | ||
| Max resistance (Ω/Km at20℃) | 29.76 | ||
| Breakdown voltage Mini (V) | 1100 | ||
