| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.08mm | Number Of Strands: | 3000 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver/Nylon | Key Word: | Custom Flat 3000 Strands Silk Covered Litz Wire For Transformer |
| Product Name: | Custom Flat 3000 Strands Silk Covered Litz Wire For Transformer | ||
| Highlight: | Silk Covered Litz Wire,Custom Flat Litz Wire,3000 Strands Litz Wire |
||

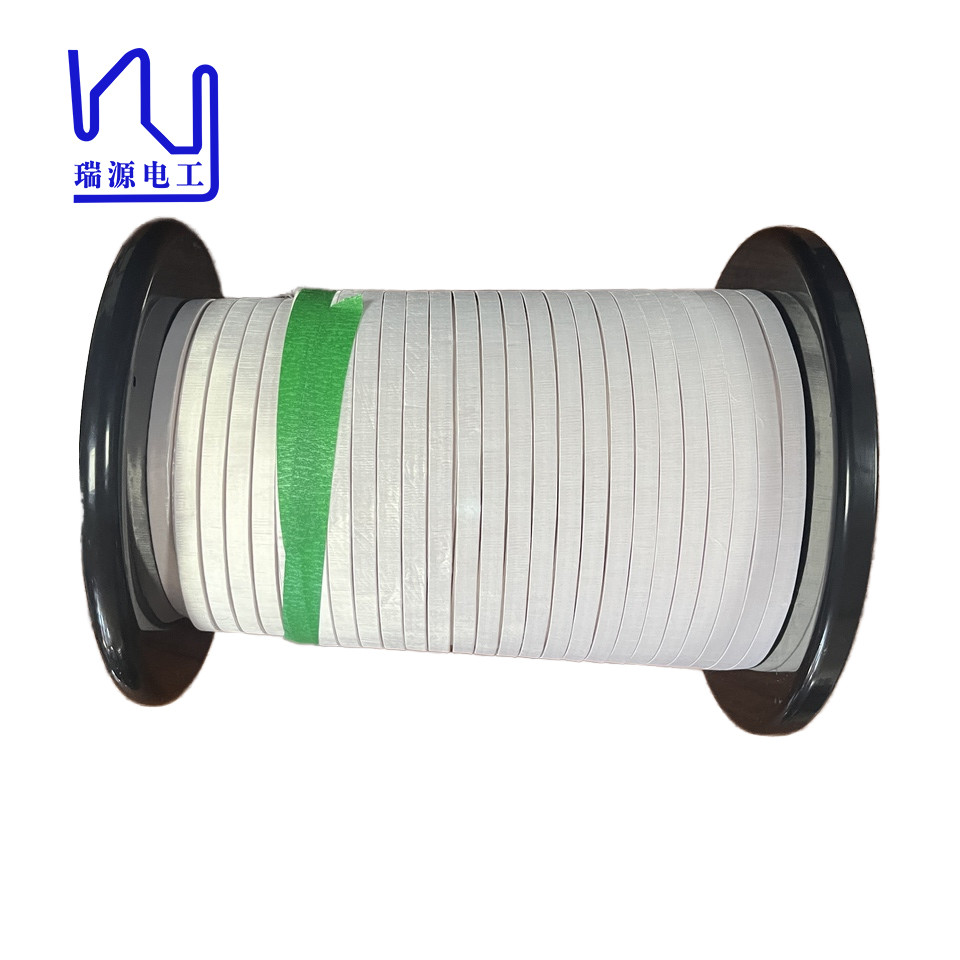

Custom Flat 3000 Strands Silk Covered Litz Wire For Transformer
What sets this flat nylon served litz wire apart from regular litz wire is its unique flat design. Unlike ordinary round nylon covered litz wire, this flat wire has a significant ratio, with a width of 9.4 mm and a thickness of 3.4 mm. This structure cannot be achieved through extrusion methods. Instead, the manufacturing process involves carefully arranging multiple strands of stranded wire and wrapping them with protective nylon yarn. This careful construction ensures that the internal enameled wire remains intact, allowing for optimal conductivity and performance in demanding environments.
|
Outgoing test of 0.08x1000 flat nylon served litz wrie |
||
|
Spec: 2USTC-F |
Model:0.08x1000x3(9.4*3.4) |
|
|
Item |
Tech requirement |
Test value |
|
Single wire diameter mm |
0.087-0.103 |
0.089-0.091 |
|
Conductor diameter mm |
0.08(＋0.003-0.004) |
0.076-0.079 |
|
Width mm |
/ |
8.85-9.05 |
|
Thickness mm |
/ |
3.21-3.40 |
|
Resistance Ω/m |
≤0.001258 |
0.001221 |
|
Breakdown voltage V |
≥950 |
1100 |
|
Pinch |
Parallel |
Parallel |
|
No. Of strand |
3000 |
3000 |
