| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.08mm | Number Of Strands: | 3000 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver/Nylon | Key Word: | Mult-Strands 0.08mm Flat Nylon Serving Copper Litz Wire |
| Product Name: | Mult-Strands 0.08mm Flat Nylon Serving Copper Litz Wire | ||
| Highlight: | Flat Nylon Serving Copper Litz Wire,Mult Strands Copper Litz Wire,0.08mm Copper Litz Wire |
||

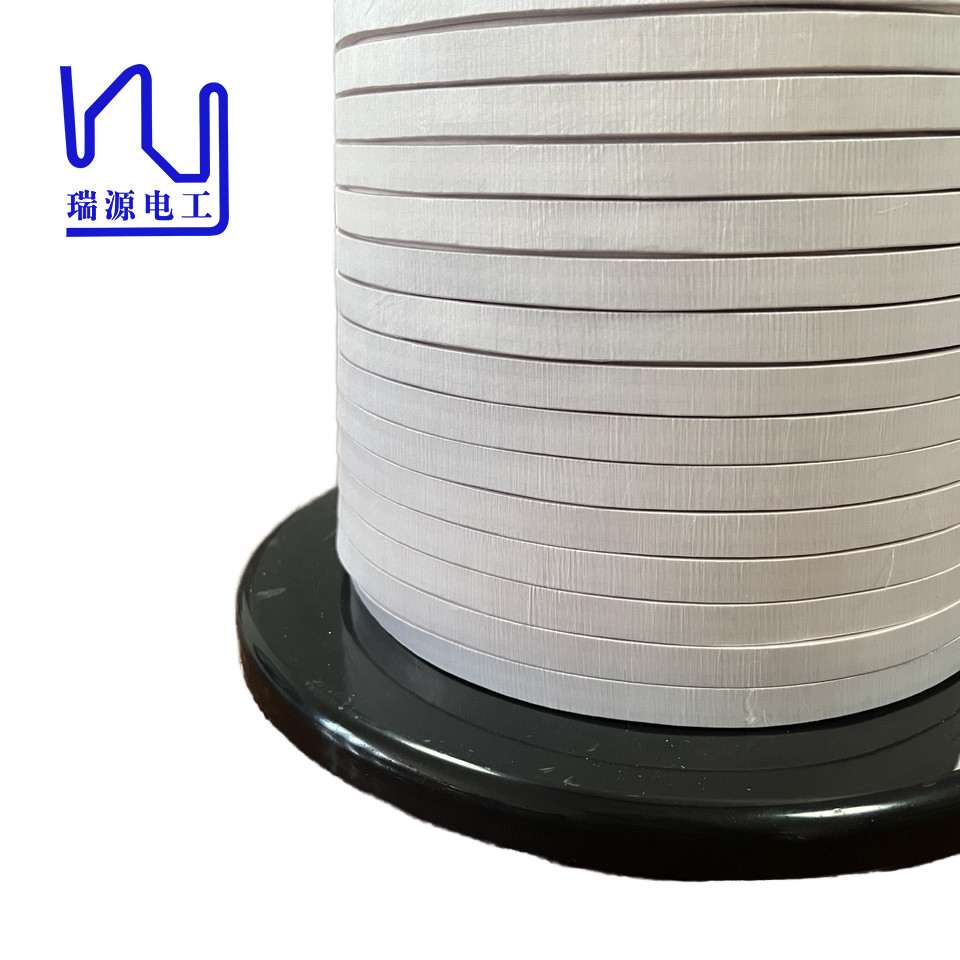

Mult-Strands 0.08mm Flat Nylon Serving Copper Litz Wire
This flat nylon served litz wire has a single wire diameter of 0.08 mm and consists of 3000 wire , making it an excellent choice for applications requiring precision and durability.
What sets this flat nylon served litz wire apart from regular litz wire is its unique flat design. Unlike ordinary round nylon covered litz wire, this flat wire has a significant ratio, with a width of 9.4 mm and a thickness of 3.4 mm. This structure cannot be achieved through extrusion methods.
|
Outgoing test of 0.08x1000 flat nylon served litz wrie |
||
|
Spec: 2USTC-F |
Model:0.08x1000x3(9.4*3.4) |
|
|
Item |
Tech requirement |
Test value |
|
Single wire diameter mm |
0.087-0.103 |
0.089-0.091 |
|
Conductor diameter mm |
0.08(＋0.003-0.004) |
0.076-0.079 |
|
Width mm |
/ |
8.85-9.05 |
|
Thickness mm |
/ |
3.21-3.40 |
|
Resistance Ω/m |
≤0.001258 |
0.001221 |
|
Breakdown voltage V |
≥950 |
1100 |
|
Pinch |
Parallel |
Parallel |
|
No. Of strand |
3000 |
3000 |
