| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | UL Certified 0.04mm*2375 Strands High Frequency Twisted Enameled Copper HF Basic Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Conductor: | Copper |
| Key Word: | UL Certified 0.04mm*2375 Strands High Frequency Twisted Enameled Copper HF Basic Litz Wire | No. Of Strands: | 2375 |
| Thermal Rating: | 155 | ||
| Highlight: | High Frequency Copper Litz Wire,0.04mm*2375 Strands Copper Litz Wire,UL Certified Copper Litz Wire |
||

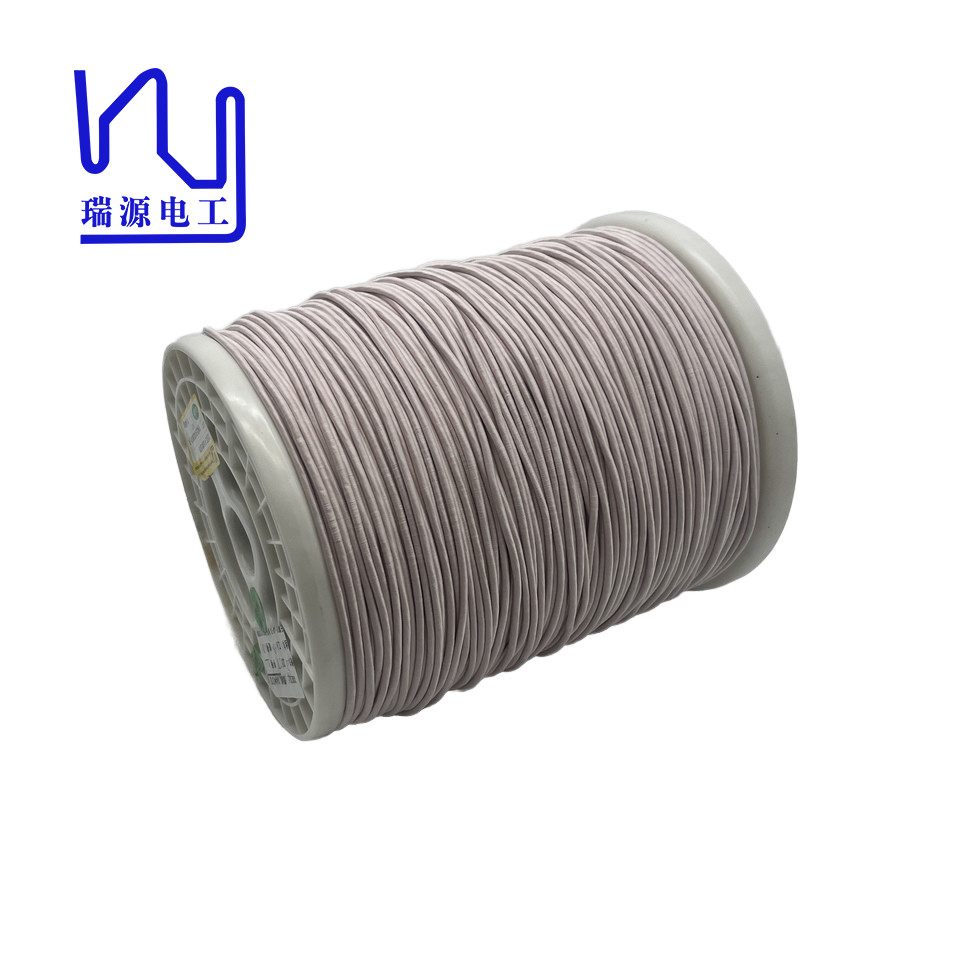

UL Certified 0.04mm*2375 Strands High Frequency Twisted Enameled Copper HF Basic Litz Wire
The applications for our silk covered Litz Wire extend beyond transformer windings. Its unique structure and properties make it an excellent choice for a wide range of electromagnetic devices, including inductors, motors, and generators. By minimizing skin-effect and proximity-effect losses, the silk covered litz wire improves the overall performance of these devices, resulting in higher efficiency and lower energy consumption. Engineers and designers can leverage the benefits of silk covered litz Wire to create innovative solutions that meet the evolving needs of the electrical industry.
|
Outgoing test report of 0.04x2375 nylon served litz wire |
||
|
Item |
Technical requests |
Test Value |
|
Conductor Diameter mm |
0.043-0.056 |
0.047-0.049 |
|
Single wire diameter mm |
0.04±0.002 |
0.038-0.040 |
|
O.D.mm |
Max.3.41 |
2.90-3.21 |
|
Resistance (20℃) |
Max.0.001181 |
0.00116 |
|
Breakdown Voltage v |
Min.6000 |
13000 |
|
Pitch mm |
40±10 |
√ |
|
No. of strands |
2375 |
√ |
