| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Customizable Litz Wire 0.04mmx2375 Strands Twisted Insulated Copper Stranded Litz Wire For HF Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Conductor: | Copper |
| Key Word: | Customizable Litz Wire 0.04mmx2375 Strands Twisted Insulated Copper Stranded Litz Wire For HF Transformer | No. Of Strands: | 2375 |
| Thermal Rating: | 155 | ||
| Highlight: | Twisted Insulated Litz Wire,HF Transformer Litz Wire,0.04mmx2375 Strands Litz Wire |
||

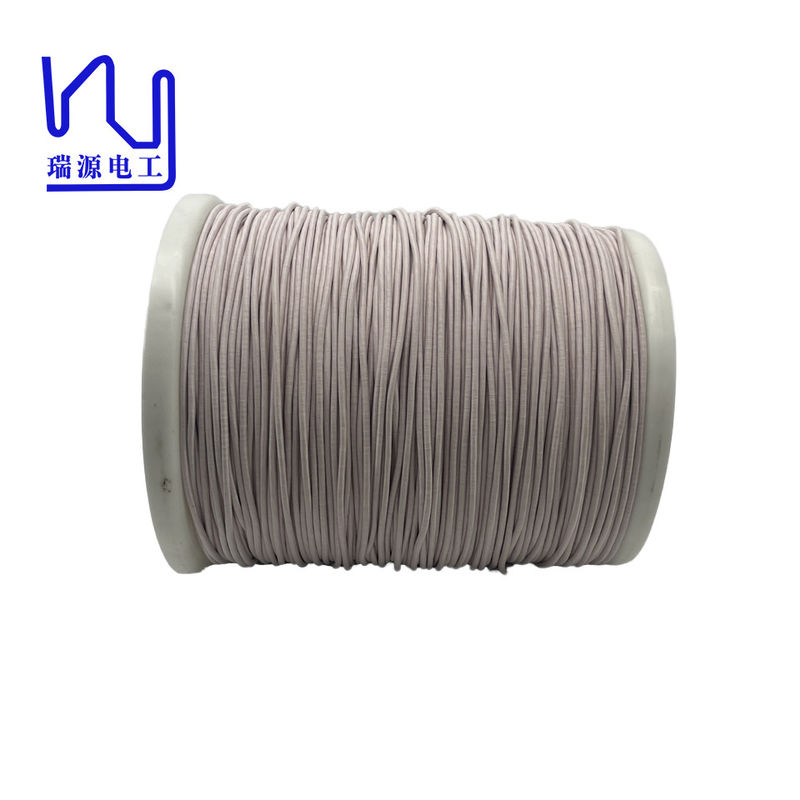

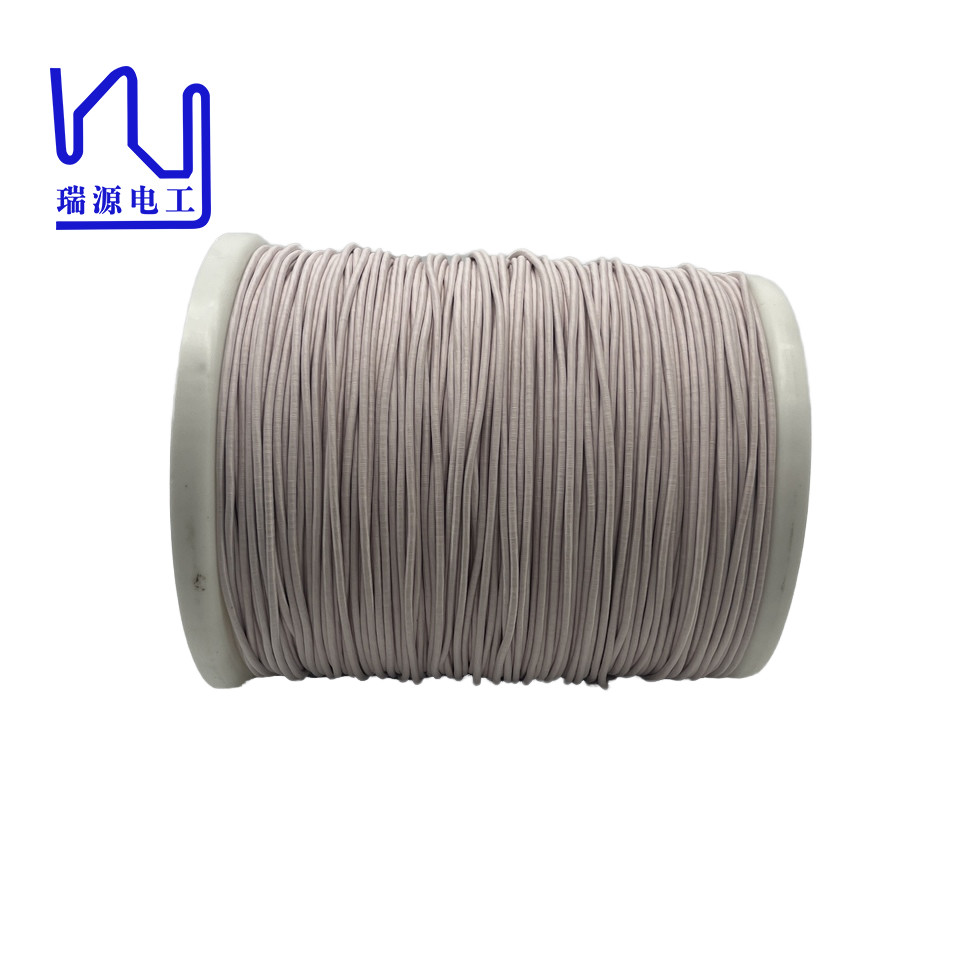

Customizable Litz Wire 0.04mmx2375 Strands Twisted Insulated Copper Stranded Litz Wire For HF Transformer
For those seeking an alternative, we also offer polyester yarn and real silk that can be further customized to specific project requirements. This versatility makes silk coverd litz wire suitable for a variety of transformer designs, from small applications to large industrial systems.
|
Outgoing test report of 0.04x2375 nylon served litz wire |
||
|
Item |
Technical requests |
Test Value |
|
Conductor Diameter mm |
0.043-0.056 |
0.047-0.049 |
|
Single wire diameter mm |
0.04±0.002 |
0.038-0.040 |
|
O.D.mm |
Max.3.41 |
2.90-3.21 |
|
Resistance (20℃) |
Max.0.001181 |
0.00116 |
|
Breakdown Voltage v |
Min.6000 |
13000 |
|
Pitch mm |
40±10 |
√ |
|
No. of strands |
2375 |
√ |
