| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC / UDTC 0.04mm HF Insulated Enameled Twisted Silk Covered Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Conductor: | Copper |
| Key Word: | USTC / UDTC 0.04mm HF Insulated Enameled Twisted Silk Covered Litz Wire | No. Of Strands: | 2375 |
| Thermal Rating: | 155 | ||
| Highlight: | USTC Copper Litz Wire,UDTC Copper Litz Wire,0.04mm Copper Litz Wire |
||

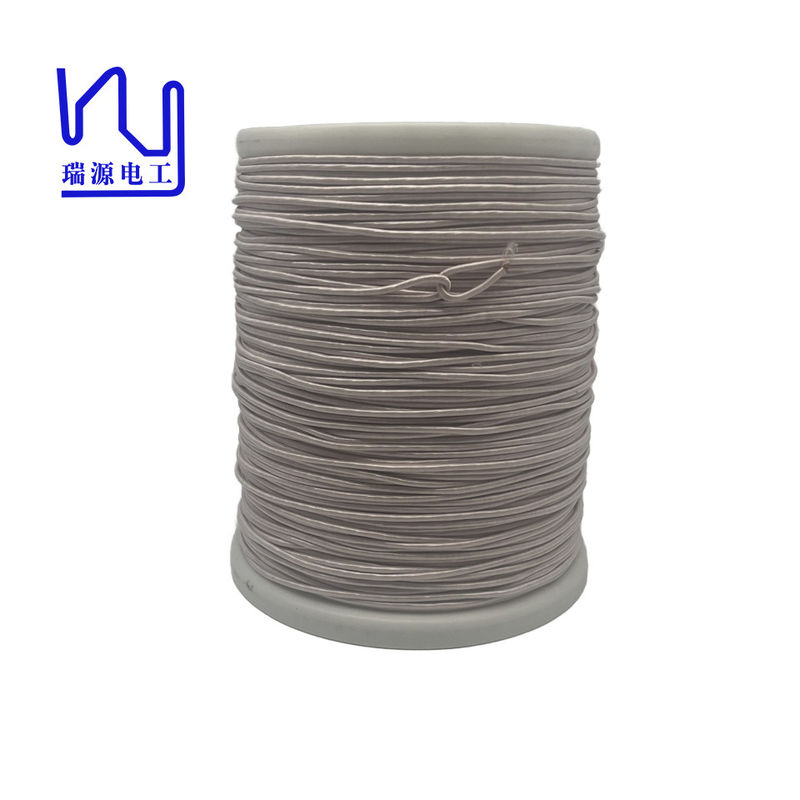

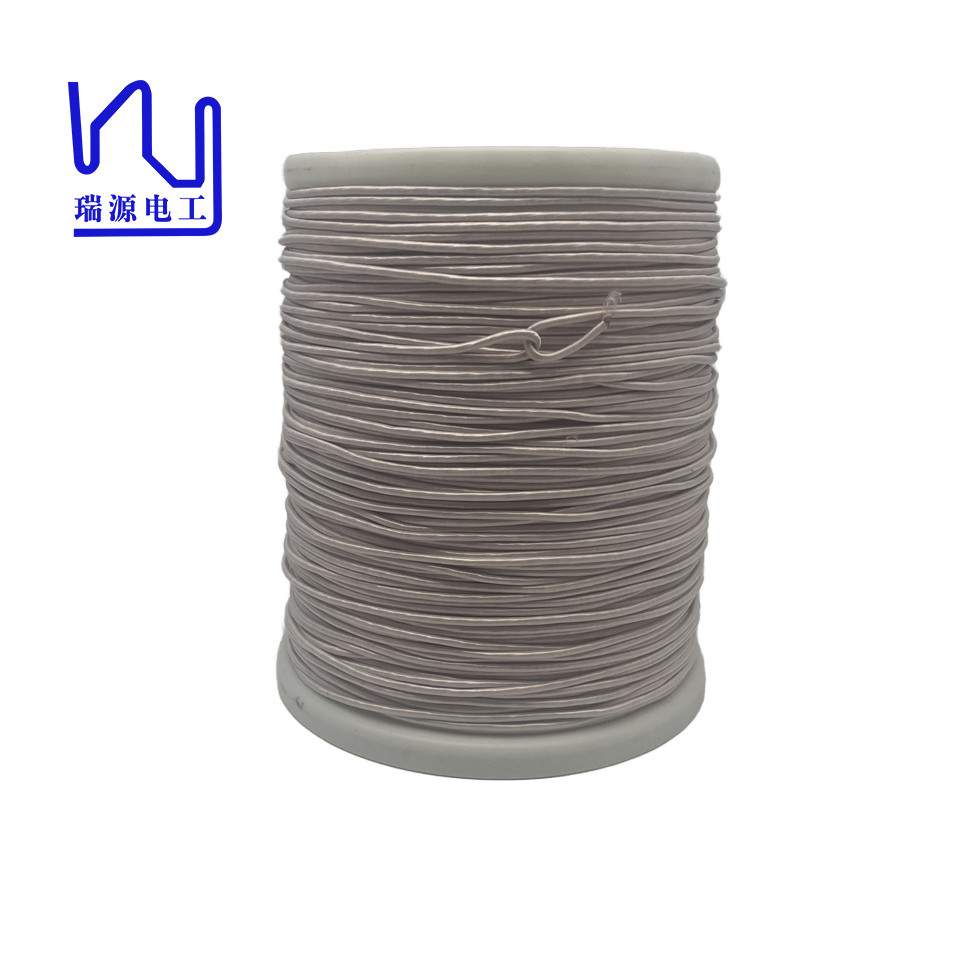

USTC / UDTC 0.04mm HF Insulated Enameled Twisted Silk Covered Litz Wire
One of the standout features of the silk covered Litz wire is its outstanding level of high temperature resistance, up to 155 degrees Celsius. This high heat resistance ensures that the wire can operate effectively in environments where heat generation is a concern, such as in transformers where energy losses are high. The ability to withstand high temperatures without compromising performance is critical to maintaining the life and reliability of transformer windings. By using nylon served Litz wire, engineers can design transformers that operate efficiently under high load conditions, ultimately achieving better energy savings and reduced operating costs.
|
Outgoing test report of 0.04x2375 nylon served litz wire |
||
|
Item |
Technical requests |
Test Value |
|
Conductor Diameter mm |
0.043-0.056 |
0.047-0.049 |
|
Single wire diameter mm |
0.04±0.002 |
0.038-0.040 |
|
O.D.mm |
Max.3.41 |
2.90-3.21 |
|
Resistance (20℃) |
Max.0.001181 |
0.00116 |
|
Breakdown Voltage v |
Min.6000 |
13000 |
|
Pitch mm |
40±10 |
√ |
|
No. of strands |
2375 |
√ |
