| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom UDTC 155 Degree Silk Coated Litz Wire For Electronic Products | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Conductor: | Copper |
| Key Word: | Custom UDTC 155 Degree Silk Coated Litz Wire For Electronic Products | No. Of Strands: | 2375 |
| Thermal Rating: | 155 | ||
| Highlight: | 155 Degree Silk Coated Litz Wire,Custom Silk Coated Litz Wire,Electronic Products Silk Coated Litz Wire |
||

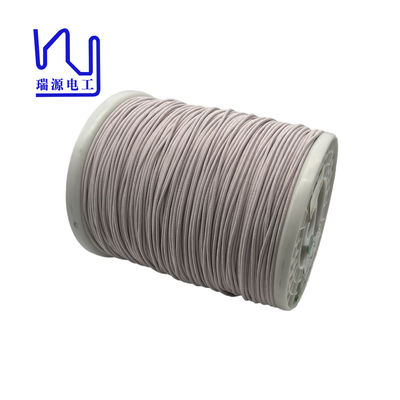

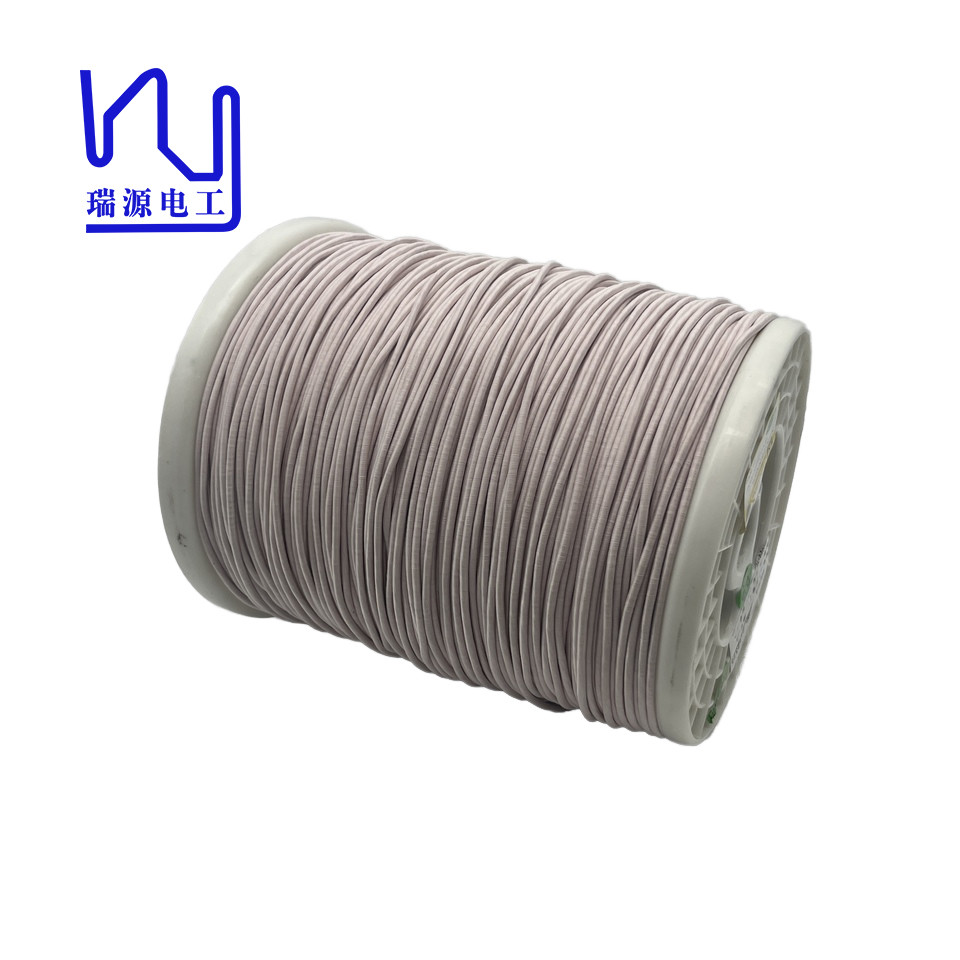

Custom UDTC 155 Degree Silk Coated Litz Wire For Electronic Products
One of the standout features of the silk covered Litz wire is its outstanding level of high temperature resistance, up to 155 degrees Celsius. This high heat resistance ensures that the wire can operate effectively in environments where heat generation is a concern, such as in transformers where energy losses are high.
|
Outgoing test report of 0.04x2375 nylon served litz wire |
||
|
Item |
Technical requests |
Test Value |
|
Conductor Diameter mm |
0.043-0.056 |
0.047-0.049 |
|
Single wire diameter mm |
0.04±0.002 |
0.038-0.040 |
|
O.D.mm |
Max.3.41 |
2.90-3.21 |
|
Resistance (20℃) |
Max.0.001181 |
0.00116 |
|
Breakdown Voltage v |
Min.6000 |
13000 |
|
Pitch mm |
40±10 |
√ |
|
No. of strands |
2375 |
√ |
