| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom Insulated UEW Twisted High Frequency 0.32mm Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.32mm | Conductor: | Copper |
| Key Word: | Electrical Vehicle Use 2UEW-F 0.32mm High Frequency Copper Litz WireCustom Insulated UEW Twisted High Frequency 0.32mm Copper Litz Wire | No. Of Strands: | 32 |
| Thermal Rating: | 155 | ||
| Highlight: | UEW Twisted Copper Litz Wire,Custom Insulated Copper Litz Wire,0.32mm Copper Litz Wire |
||

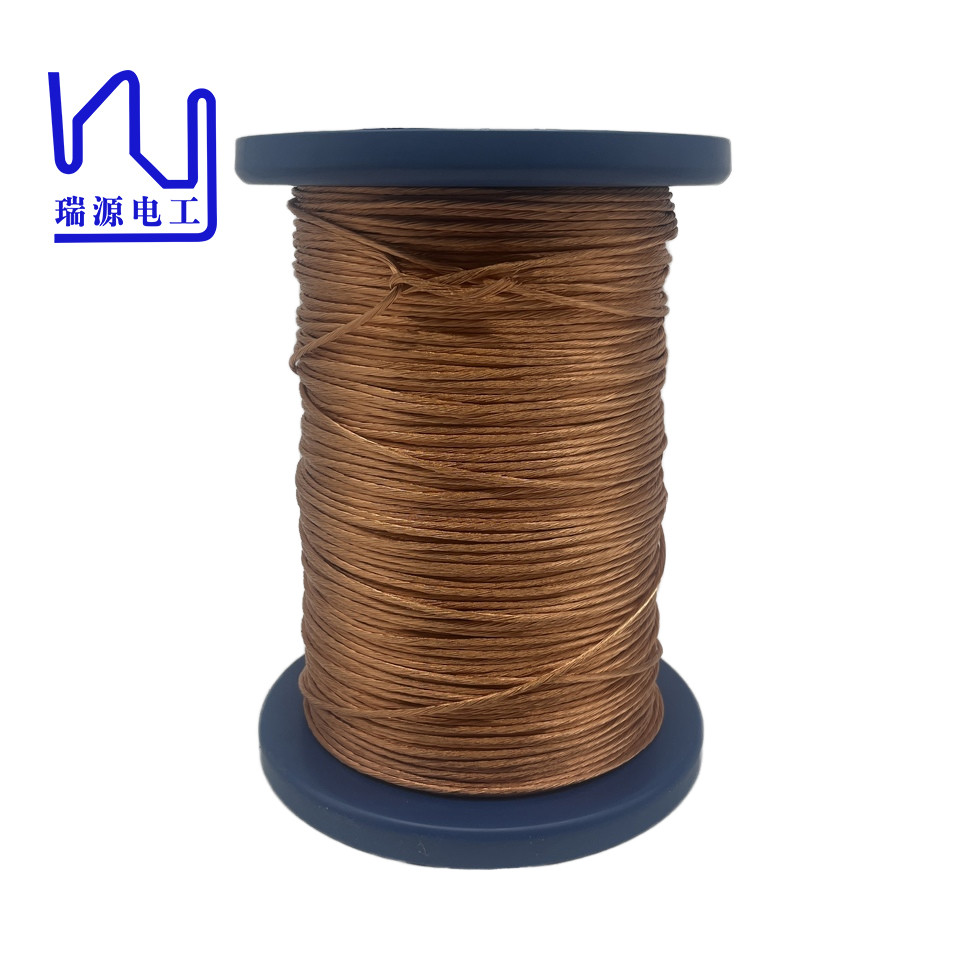

Custom Insulated UEW Twisted High Frequency 0.32mm Copper Litz Wire
We know that every project is unique and we are committed to providing you with the best solution. Our team of experts are here to help you choose the stranded or litz wire that suits your needs, ensuring you get the support and guidance you need to make an informed decision. With our wide range of products and customization options, we are confident that we can meet your requirements and help you achieve your project goals.
| Item | Out conductor diameter mm | Conductor diameter mm | Overall diameter mm | Pitch mm |
Resistance Ω /m(20℃) |
Breakdown voltage V |
Solderability 390±5 ℃10S
|
| Tech requirement | 0.335-0.357 | 0.32 | 2.50 | 33 | 0.006963 | 2000 | Surface smooth, no crack |
| ± | 0.005 | Max. | 7 | max | Min | ||
| 1 | 0.344-0.347 | 0.317-0.32 | 2.28 | √ | 0.006786 | 4400 | √ |
