| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Class 155 0.32mmx32 Enameled Copper Stranded Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.32mm | Conductor: | Copper |
| Key Word: | Class 155 0.32mmx32 Enameled Copper Stranded Wire | No. Of Strands: | 32 |
| Thermal Rating: | 155 | ||
| Highlight: | 0.32mm Enameled Copper Stranded Wire,Class 155 Enameled Copper Stranded Wire,0.32mmx32 Enameled Copper Stranded Wire |
||

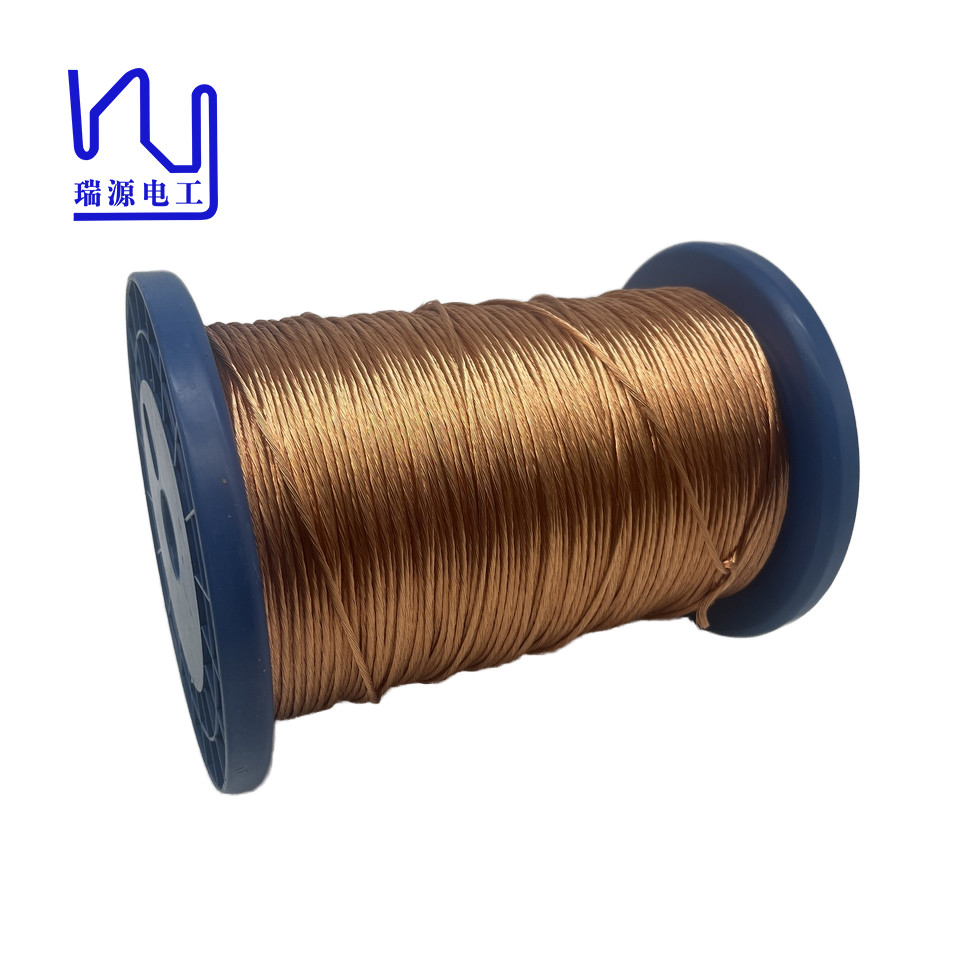

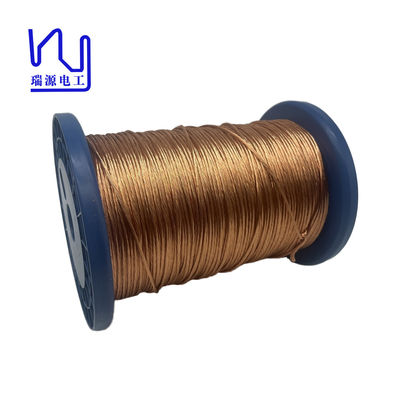

Class 155 0.32mmx32 Enameled Copper Stranded Wire
Litz wire is a stranded wire specifically designed to reduce skin effect and proximity effect losses that occur at high frequencies. By utilizing multiple strands of wire, our Litz wire ensures that current is evenly distributed across the entire surface area, improving efficiency and performance. This property is particularly advantageous in the construction of high-frequency transformers, where minimizing energy losses is crucial.
| Item | Out conductor diameter mm | Conductor diameter mm | Overall diameter mm | Pitch mm |
Resistance Ω /m(20℃) |
Breakdown voltage V |
Solderability 390±5 ℃10S
|
| Tech requirement | 0.335-0.357 | 0.32 | 2.50 | 33 | 0.006963 | 2000 | Surface smooth, no crack |
| ± | 0.005 | Max. | 7 | max | Min | ||
| 1 | 0.344-0.347 | 0.317-0.32 | 2.28 | √ | 0.006786 | 4400 | √ |
