| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2UEW-F Litz Wire 0.32mmx32 Enameled Copper Stranded Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.32mm | Conductor: | Copper |
| Key Word: | 2UEW-F Litz Wire 0.32mmx32 Enameled Copper Stranded Wire | No. Of Strands: | 32 |
| Thermal Rating: | 155 | ||
| Highlight: | 2UEW-F Enameled Copper Stranded Wire,0.32mm Enameled Copper Stranded Wire,0.32mmx32 Enameled Copper Stranded Wire |
||

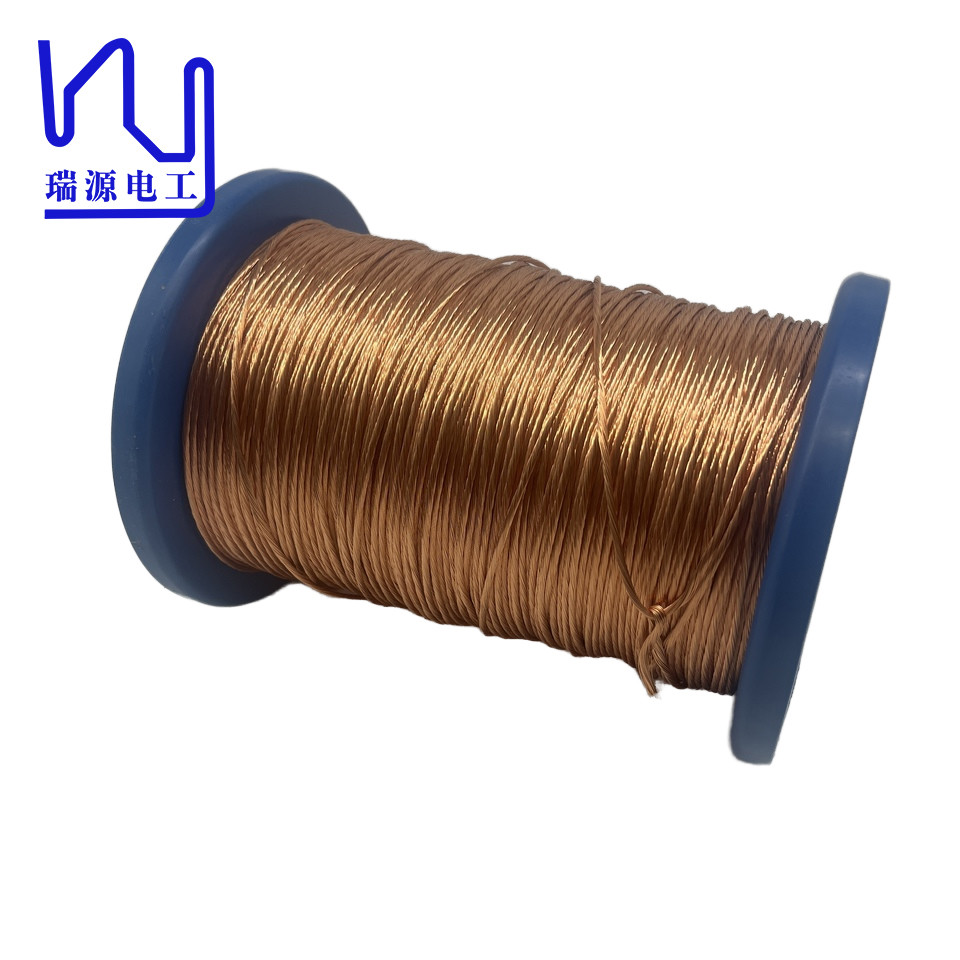

2UEW-F Litz Wire 0.32mmx32 Enameled Copper Stranded Wire
In the ever-growing field of electrical engineering, the need for high-performance components is of paramount importance. This special stranded wires stand out with a single wire diameter of 0.32 mm and are made of 32 strands of enameled copper wire.
| Item | Out conductor diameter mm | Conductor diameter mm | Overall diameter mm | Pitch mm |
Resistance Ω /m(20℃) |
Breakdown voltage V |
Solderability 390±5 ℃10S
|
| Tech requirement | 0.335-0.357 | 0.32 | 2.50 | 33 | 0.006963 | 2000 | Surface smooth, no crack |
| ± | 0.005 | Max. | 7 | max | Min | ||
| 1 | 0.344-0.347 | 0.317-0.32 | 2.28 | √ | 0.006786 | 4400 | √ |
