| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Taped litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | F4 Taped Litz Wire 0.05mmx600 PTFE Stranded Enameled Copper WireClass F 0.05mm Enameled Copper Wire 600 Strands Taped Litz Wire PTFE | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Conductor: | Copper |
| Insulation: | Ptfe Film | Rated Temperature: | 155 |
| Key Word: | Class F 0.05mm Enameled Copper Wire 600 Strands Taped Litz Wire PTFE | No. Of Strands: | 600 |
| Highlight: | 600 Strands Enameled Copper Wire,0.05mm Enameled Copper Wire,PTFE Enameled Copper Wire |
||

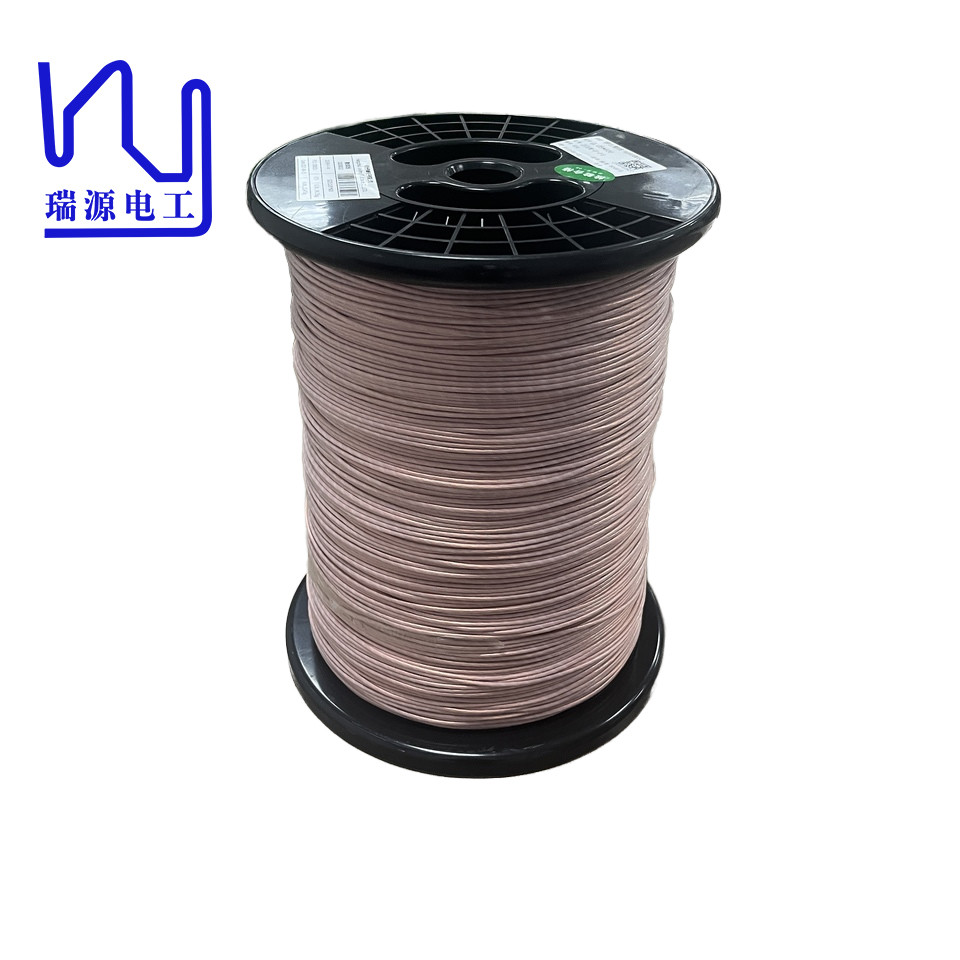

Class F 0.05mm Enameled Copper Wire 600 Strands Taped Litz Wire PTFE
This is a fully customized taped Litz wire, consisting of 600 strands of enameled wire stranded together with a single wire diameter of only 0.05 mm.
Whether you are working on cutting-edge telecommunications systems or high-performance automotive components, our litz wire is the ideal solution for optimal results. Trust our expertise and let us help you elevate your project with state-of-the-art taped litz wire. Please contact us today to learn more about how we can customize this product to meet your specific requirements.
|
Item
No |
Single wire diameter mm |
Conductor diameter mm |
O.D. mm |
Resistance Ω /m |
Dielectric strength v |
Pitch (mm) |
No. of strand |
Tape |
winding |
|
verlap % |
|||||||||
|
Tech requirement |
0.058-0.069 |
0.05±0.003 |
≤2.67 |
≤0.01707 |
≥6000 |
37±3 |
600 |
≥50 |
No crack |
|
1 |
0.058-0.061 |
0.048-0.050 |
2.07-2.24 |
0.0150 |
14600 |
37 |
600 |
54 |
OK |
|
2 |
0.058-0.061 |
0.048-0.050 |
2.05-2.23 |
0.0150 |
14200 |
37 |
600 |
53 |
OK |
|
3 |
0.058-0.060 |
0.048-0.050 |
2.0-2.20 |
0.0151 |
14500 |
37 |
600 |
55 |
OK |
|
4 |
0.058-0.060 |
0.048-0.050 |
2.05-2.23. |
0.0152 |
15000 |
37 |
600 |
54 |
OK |
|
5 |
0.058-0.060 |
0.048-0.050 |
2.04-2.19 |
0.0153 |
14900 |
37 |
600 |
55 |
OK |
|
6 |
0.058-0.061 |
0.048-0.050 |
2.00-2.17 |
0.0149 |
14700 |
37 |
600 |
54 |
OK |
|
7 |
0.058-0.062 |
0.048-0.050 |
1.99-2.20 |
0.0150 |
14200 |
37 |
600 |
53 |
OK |
