| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Taped litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | F4 Taped Litz Wire 0.05mmx600 PTFE Stranded Enameled Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Conductor: | Copper |
| Insulation: | Ptfe Film | Rated Temperature: | 155 |
| Key Word: | F4 Taped Litz Wire 0.05mmx600 PTFE Stranded Enameled Copper Wire | No. Of Strands: | 600 |
| Highlight: | F4 Taped Litz Wire,0.05mmx600 PTFE Stranded Enameled Copper Wire,PTFE Stranded Enameled Copper Wire |
||

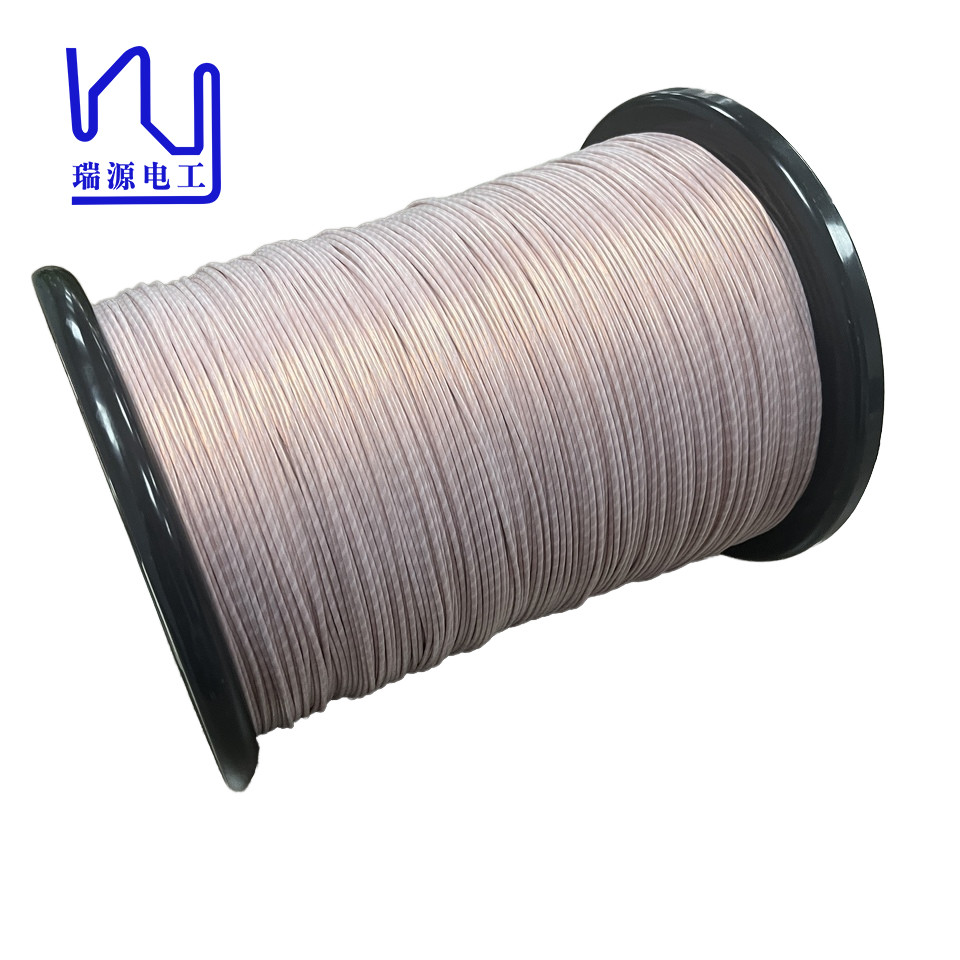

F4 Taped Litz Wire 0.05mmx600 PTFE Stranded Enameled Copper Wire
In high-frequency fields such as telecommunications, aerospace and automotive industries, the performance of electrical components is critical. Our Litz wires minimize skin and proximity effects, which are common challenges in high frequency applications.
Our commitment to customization means we can customize the specifications of our taped litz wire to meet the unique needs of your project.
|
Item
No |
Single wire diameter mm |
Conductor diameter mm |
O.D. mm |
Resistance Ω /m |
Dielectric strength v |
Pitch (mm) |
No. of strand |
Tape |
winding |
|
verlap % |
|||||||||
|
Tech requirement |
0.058-0.069 |
0.05±0.003 |
≤2.67 |
≤0.01707 |
≥6000 |
37±3 |
600 |
≥50 |
No crack |
|
1 |
0.058-0.061 |
0.048-0.050 |
2.07-2.24 |
0.0150 |
14600 |
37 |
600 |
54 |
OK |
|
2 |
0.058-0.061 |
0.048-0.050 |
2.05-2.23 |
0.0150 |
14200 |
37 |
600 |
53 |
OK |
|
3 |
0.058-0.060 |
0.048-0.050 |
2.0-2.20 |
0.0151 |
14500 |
37 |
600 |
55 |
OK |
|
4 |
0.058-0.060 |
0.048-0.050 |
2.05-2.23. |
0.0152 |
15000 |
37 |
600 |
54 |
OK |
|
5 |
0.058-0.060 |
0.048-0.050 |
2.04-2.19 |
0.0153 |
14900 |
37 |
600 |
55 |
OK |
|
6 |
0.058-0.061 |
0.048-0.050 |
2.00-2.17 |
0.0149 |
14700 |
37 |
600 |
54 |
OK |
|
7 |
0.058-0.062 |
0.048-0.050 |
1.99-2.20 |
0.0150 |
14200 |
37 |
600 |
53 |
OK |
