| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Taped litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Taped Litz Wire 0.05mmx600 PTFE Insulated Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Conductor: | Copper |
| Insulation: | Ptfe Film | Rated Temperature: | 155 |
| Key Word: | Taped Litz Wire 0.05mmx600 PTFE Insulated Copper Wire | No. Of Strands: | 600 |
| Highlight: | 0.05mmx600 Taped Litz Wire,PTFE Insulated Taped Litz Wire,0.05mmx600 PTFE Insulated Copper Wire |
||

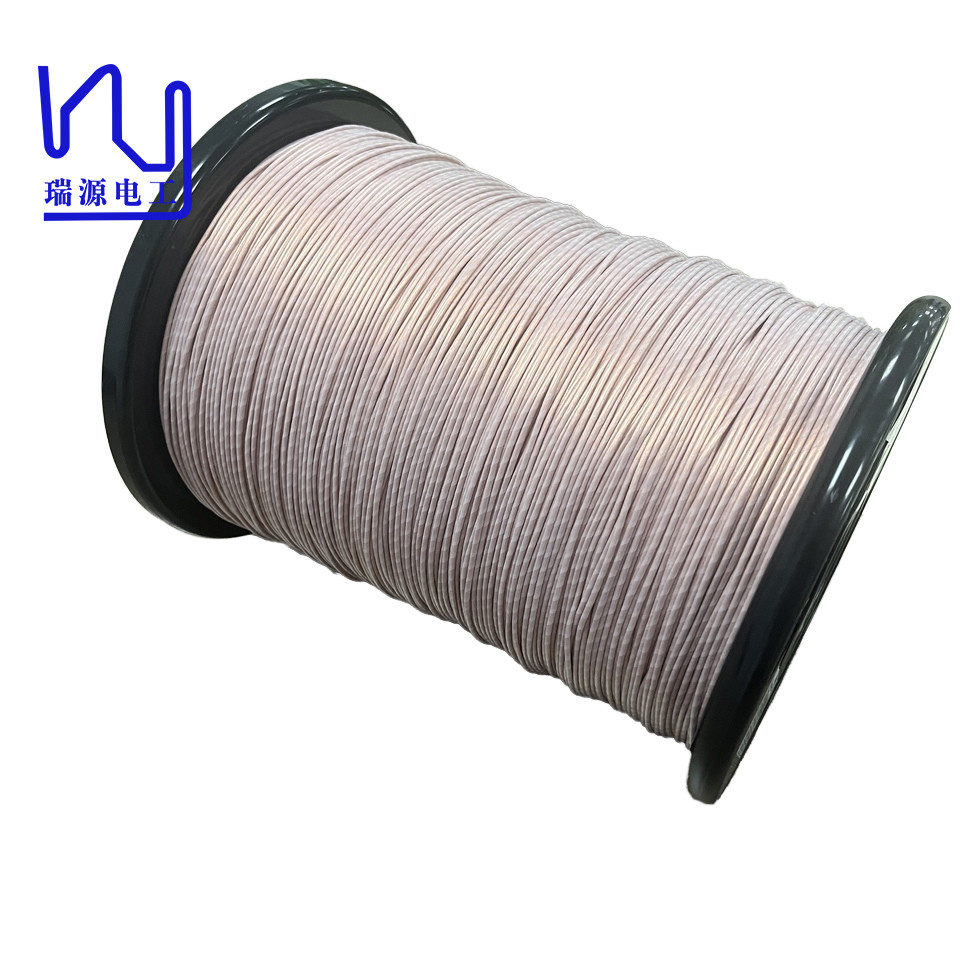

Taped Litz Wire 0.05mmx600 PTFE Insulated Copper Wire
This is a fully customized taped Litz wire, consisting of 600 strands of enameled wire stranded together with a single wire diameter of only 0.05 mm.
The outstanding features of this taped litz wire is its unique outer film. The taped litz wires are typically wrapped with a polyesterimide (PI) film, our products are specifically designed with a PTFE (Teflon) film. PTFE films have excellent insulating properties, making them ideal for applications where thermal and electrical properties are critical. This customization allows us to meet our customers' specific needs, ensuring they receive a product that perfectly matches their operational requirements.
|
Item
No |
Single wire diameter mm |
Conductor diameter mm |
O.D. mm |
Resistance Ω /m |
Dielectric strength v |
Pitch (mm) |
No. of strand |
Tape |
winding |
|
verlap % |
|||||||||
|
Tech requirement |
0.058-0.069 |
0.05±0.003 |
≤2.67 |
≤0.01707 |
≥6000 |
37±3 |
600 |
≥50 |
No crack |
|
1 |
0.058-0.061 |
0.048-0.050 |
2.07-2.24 |
0.0150 |
14600 |
37 |
600 |
54 |
OK |
|
2 |
0.058-0.061 |
0.048-0.050 |
2.05-2.23 |
0.0150 |
14200 |
37 |
600 |
53 |
OK |
|
3 |
0.058-0.060 |
0.048-0.050 |
2.0-2.20 |
0.0151 |
14500 |
37 |
600 |
55 |
OK |
|
4 |
0.058-0.060 |
0.048-0.050 |
2.05-2.23. |
0.0152 |
15000 |
37 |
600 |
54 |
OK |
|
5 |
0.058-0.060 |
0.048-0.050 |
2.04-2.19 |
0.0153 |
14900 |
37 |
600 |
55 |
OK |
|
6 |
0.058-0.061 |
0.048-0.050 |
2.00-2.17 |
0.0149 |
14700 |
37 |
600 |
54 |
OK |
|
7 |
0.058-0.062 |
0.048-0.050 |
1.99-2.20 |
0.0150 |
14200 |
37 |
600 |
53 |
OK |
