| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Taped litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2UEW-F-PI 0.05mm X 75 Taped Litz Wire Copper Stranded Insulated Wire2UEW-F Taped Litz Wire 0.05mmx600 PTFE Insulation Taped Stranded Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Conductor: | Copper |
| Insulation: | Ptfe Film | Rated Temperature: | 155 |
| Key Word: | 2UEW-F Taped Litz Wire 0.05mmx600 PTFE Insulation Taped Stranded Copper Wire | No. Of Strands: | 600 |
| Highlight: | 0.05mmx600 PTFE Insulation Taped Litz Wire,2UEW-F Taped Litz Wire,Stranded Copper Wire Taped Litz Wire |
||

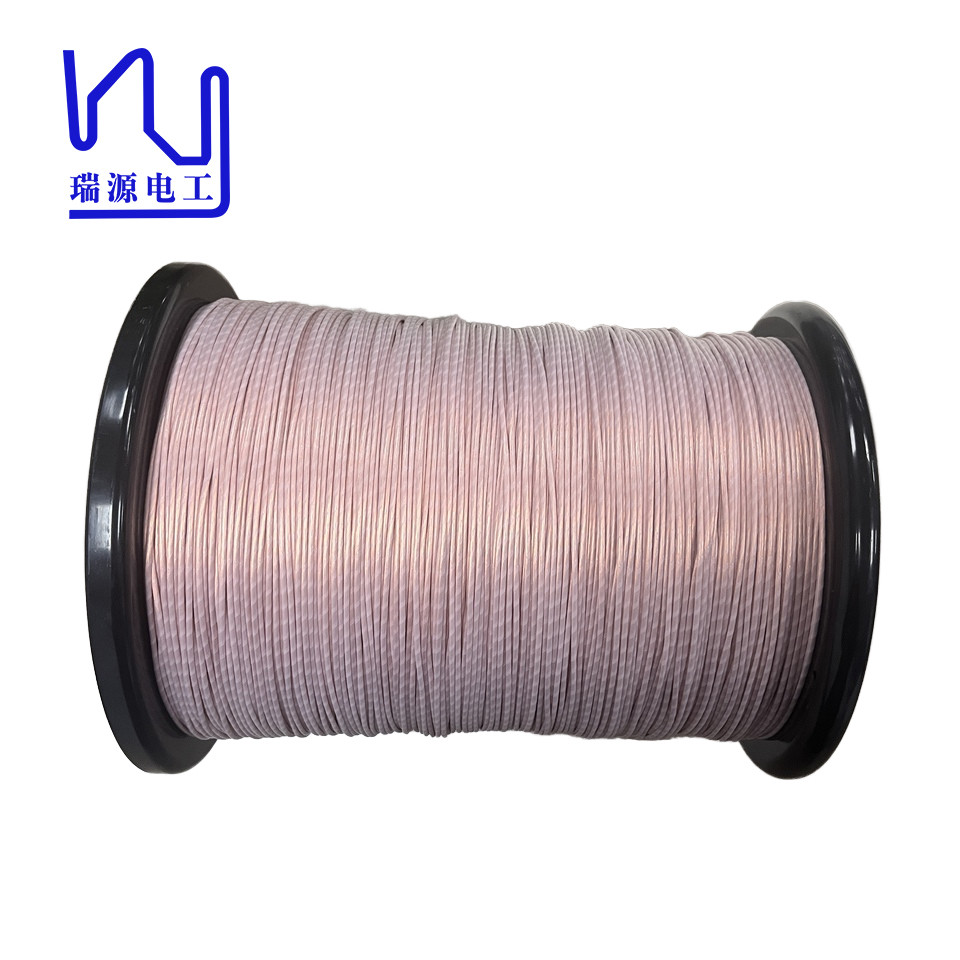

2UEW-F Taped Litz Wire 0.05mmx600 PTFE Insulation Taped Stranded Copper Wire
This taped litz wire has a single wire diameter of 0.05 mm and is carefully twisted from 600 strands to ensure optimal conductivity and flexibility.
The outstanding features of this taped litz wire is its unique outer film. The taped litz wires are typically wrapped with a polyesterimide (PI) film, our products are specifically designed with a PTFE (Teflon) film.
|
Item
No |
Single wire diameter mm |
Conductor diameter mm |
O.D. mm |
Resistance Ω /m |
Dielectric strength v |
Pitch (mm) |
No. of strand |
Tape |
winding |
|
verlap % |
|||||||||
|
Tech requirement |
0.058-0.069 |
0.05±0.003 |
≤2.67 |
≤0.01707 |
≥6000 |
37±3 |
600 |
≥50 |
No crack |
|
1 |
0.058-0.061 |
0.048-0.050 |
2.07-2.24 |
0.0150 |
14600 |
37 |
600 |
54 |
OK |
|
2 |
0.058-0.061 |
0.048-0.050 |
2.05-2.23 |
0.0150 |
14200 |
37 |
600 |
53 |
OK |
|
3 |
0.058-0.060 |
0.048-0.050 |
2.0-2.20 |
0.0151 |
14500 |
37 |
600 |
55 |
OK |
|
4 |
0.058-0.060 |
0.048-0.050 |
2.05-2.23. |
0.0152 |
15000 |
37 |
600 |
54 |
OK |
|
5 |
0.058-0.060 |
0.048-0.050 |
2.04-2.19 |
0.0153 |
14900 |
37 |
600 |
55 |
OK |
|
6 |
0.058-0.061 |
0.048-0.050 |
2.00-2.17 |
0.0149 |
14700 |
37 |
600 |
54 |
OK |
|
7 |
0.058-0.062 |
0.048-0.050 |
1.99-2.20 |
0.0150 |
14200 |
37 |
600 |
53 |
OK |
