| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.04mm | Number Of Strands: | 600 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver/Nylon | Key Word: | High-quality 0.04X600 Yarn Wrapped Copper Conductor Twisted Litz Wire |
| Product Name: | High-quality 0.04X600 Yarn Wrapped Copper Conductor Twisted Litz Wire | ||
| Highlight: | Twisted Litz Wire,0.04X600 Litz Wire,High Quality Litz Wire |
||

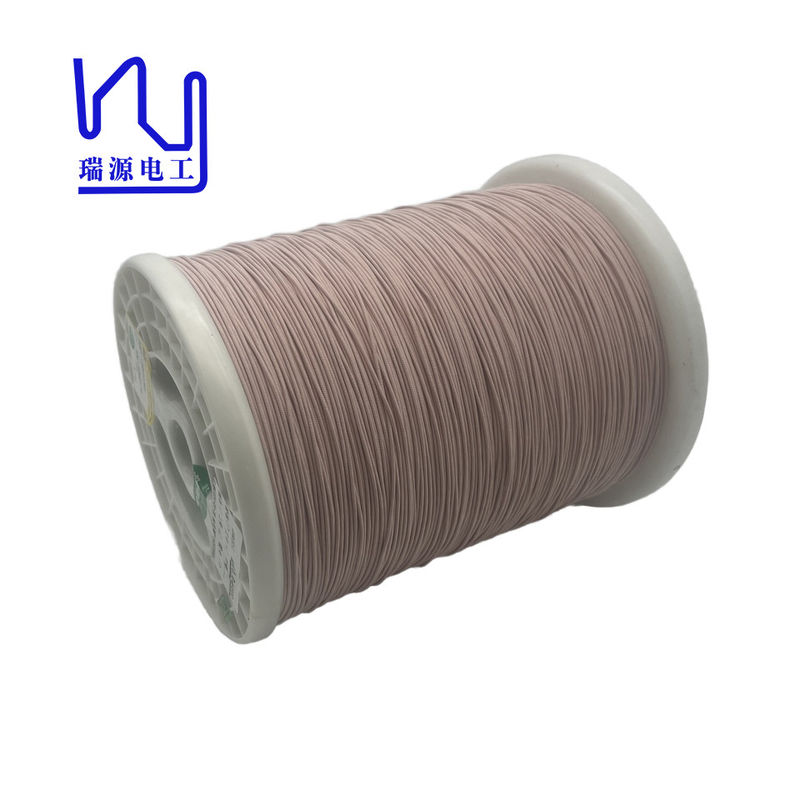

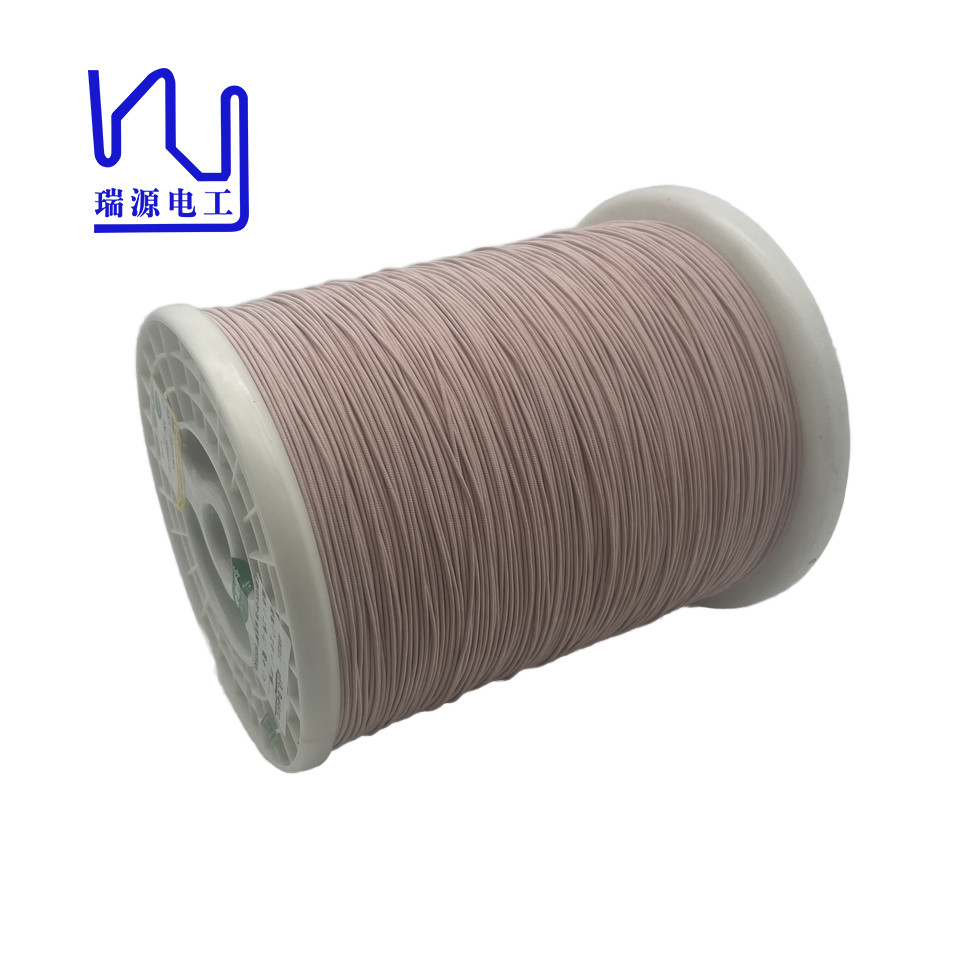

High-quality 0.04X600 Yarn Wrapped Copper Conductor Twisted Litz Wire
The silk covered litz wire can be used in transformer windings, especially in applications where high frequency performance is important. Litz wire is designed to reduce skin effect and proximity effect losses, making it suitable for use in high frequency transformers.
| Item | Tech requirement | Test value |
| Conductor outer diameter mm | 0.043-0.056 | 0.047-0.049 |
| Conductor diameter mm | 0.04±0.002 | 0.038-0.039 |
| O.D.mm | Max.1.87 | 1.35-1.47 |
| Resistance Ω/m(20℃) | Max.0.02612 | 0.02359 |
| Dielectric strength v | Min.1300 | 2400 |
| Solderability | 390±5℃, 8s Smooth,no pinhole | √ |
