| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.08mm | Number Of Strands: | 24 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver/Nylon | Key Word: | High-quality 0.08 Strands Litz Wire Served With Nylon/Polyester/Natural Silk |
| Product Name: | High-quality 0.08 Strands Litz Wire Served With Nylon/Polyester/Natural Silk | ||
| Highlight: | Nylon Litz Wire,Natural Silk Litz Wire,Polyester Litz Wire |
||

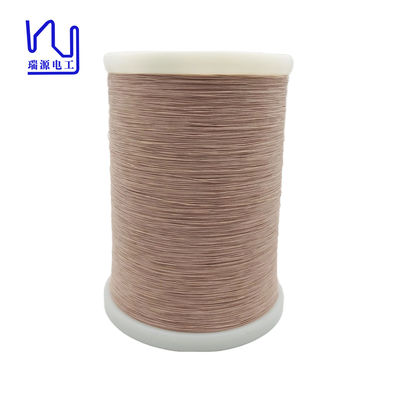

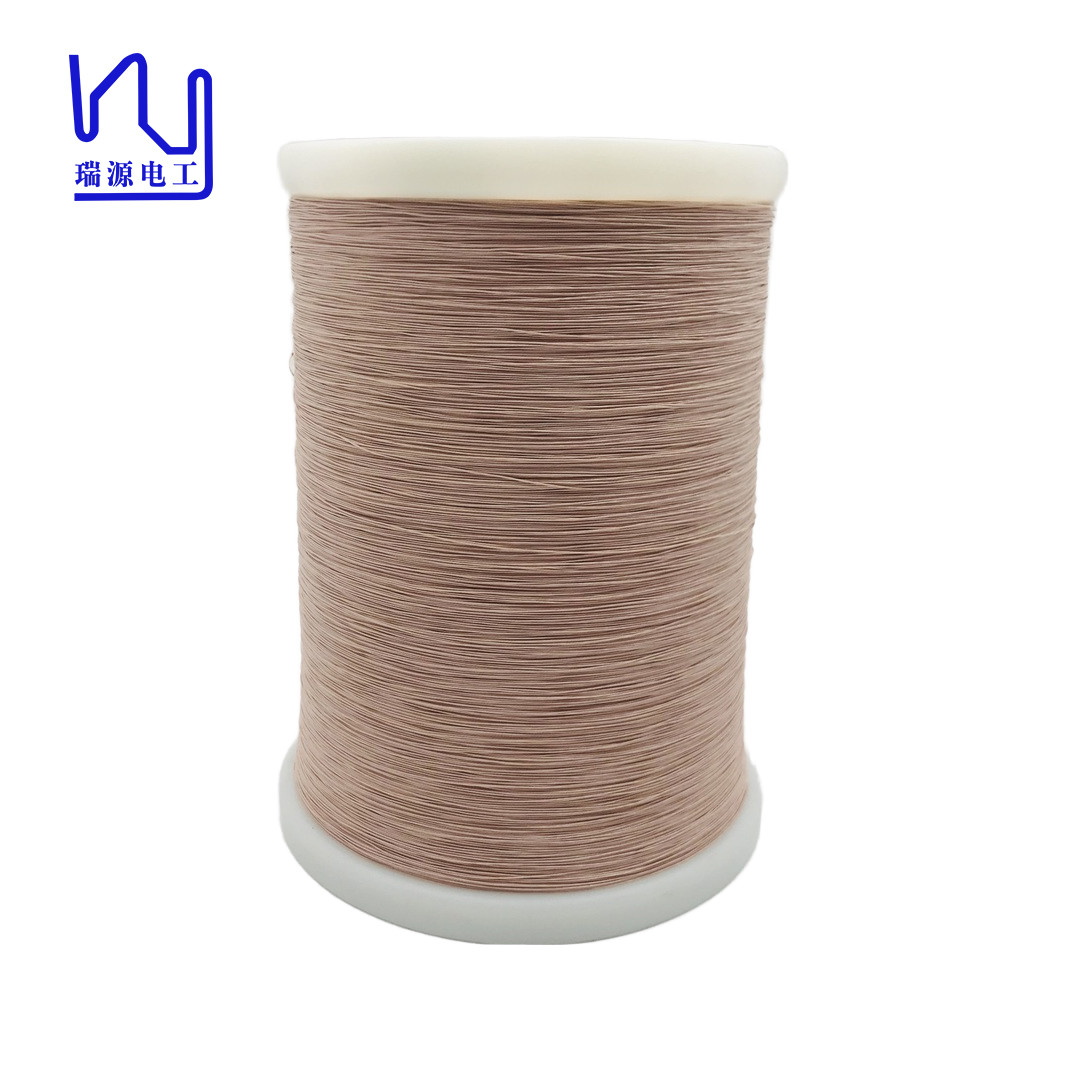

High-quality 0.08 Strands Litz Wire Served with Nylon/Polyester/Natural Silk
The minimum order quantity for this particular product is 10kg and can be customized in small quantities to suit your specific needs.
Our manufacturing capabilities enable us to produce silk covered litz wire with a minimum single wire diameter of 0.03 mm and up to 10,000 strands. This level of customization ensures that the product you receive exactly matches your design requirements, improving the overall performance of your electrical system.
| Description Conductor diameter*Strand number 0.08x24 silk covered litz wire |
||
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.005 | |
| Maximal overall diameter (mm) | 0.103 | |
| Thermal Class | 155 | |
Strand Composition |
Strand number | 24 |
| Pitch(mm) | 20±3 | |
| Stranding direction | S | |
Insulation layer |
Category | Nylon |
| UL | / | |
| Material specs(mm*mm or D) | 250+300 | |
| Times of Wrapping | 2 | |
| Overlap(%) or thickness(mm),min | 0.05 | |
| Wrapping direction | S | |
Characteristics |
Max O. D(mm) | 0.66 |
| Max pin holes 个/6m | 30 | |
| Max resistance (Ω/Km at20℃) | 157.3 | |
| Mini breakdown voltage (≧V ) | 1100 | |
