| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.08mm | Number Of Strands: | 24 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver/Nylon | Key Word: | Custom Nylon Served Enameled Litz Wire For Transformer |
| Product Name: | Custom Nylon Served Enameled Litz Wire For Transformer | ||
| Highlight: | Custom Enameled Litz Wire,Transformer Enameled Litz Wire,Nylon Served Enameled Litz Wire |
||

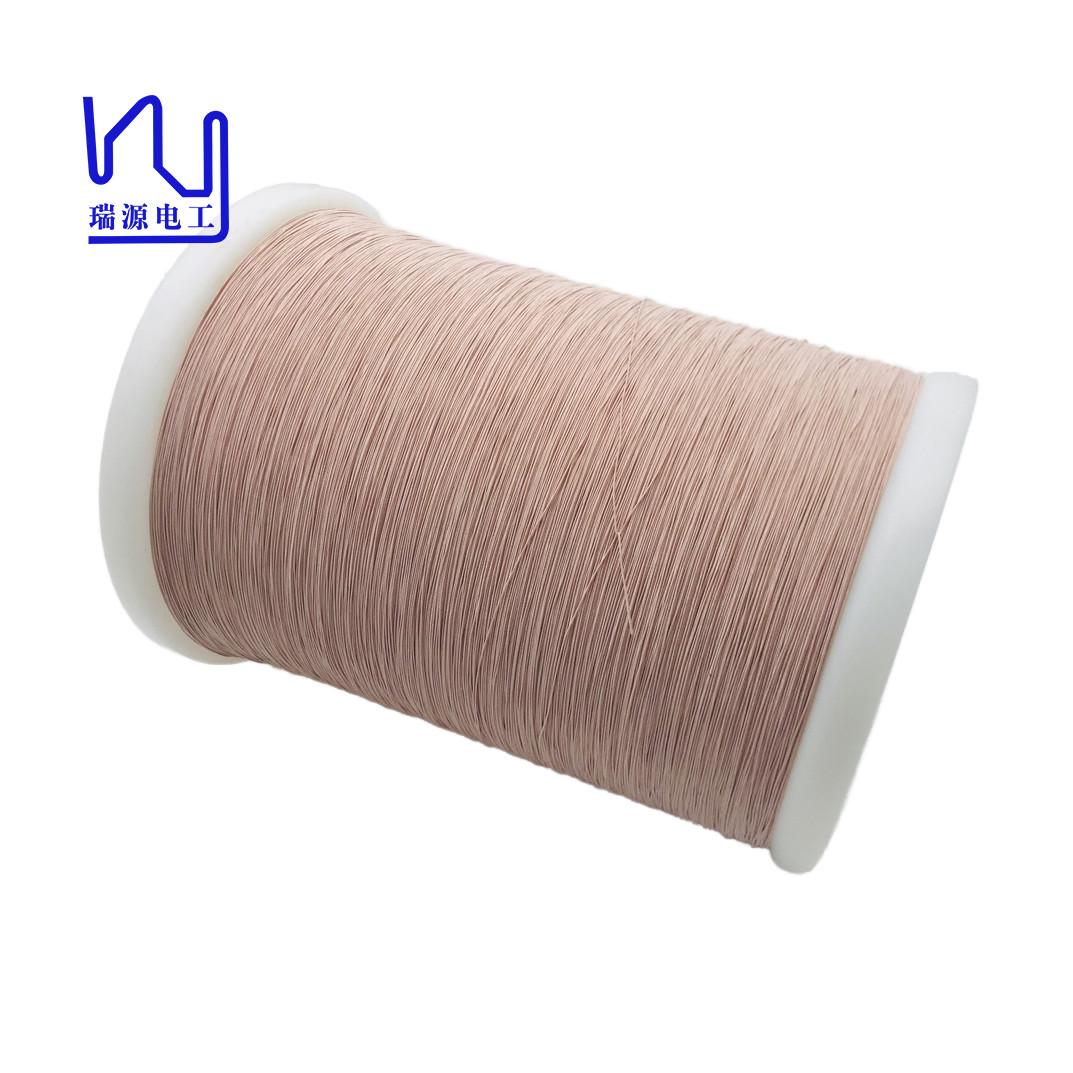

Custom Nylon Served Enameled Litz Wire For Transformer
As industries continue to move toward more sustainable and efficient technologies, our custom silk covered litz wire becomes an important part of the development of innovative electrical solutions. By choosing our products, you are not only investing in high-quality materials, but you are also entering into a partnership that prioritizes your unique needs. We are committed to delivering superior performance and reliability to ensure your electrical system is running at its best.
| Description Conductor diameter*Strand number 0.08x24 silk covered litz wire |
||
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.005 | |
| Maximal overall diameter (mm) | 0.103 | |
| Thermal Class | 155 | |
Strand Composition |
Strand number | 24 |
| Pitch(mm) | 20±3 | |
| Stranding direction | S | |
Insulation layer |
Category | Nylon |
| UL | / | |
| Material specs(mm*mm or D) | 250+300 | |
| Times of Wrapping | 2 | |
| Overlap(%) or thickness(mm),min | 0.05 | |
| Wrapping direction | S | |
Characteristics |
Max O. D(mm) | 0.66 |
| Max pin holes 个/6m | 30 | |
| Max resistance (Ω/Km at20℃) | 157.3 | |
| Mini breakdown voltage (≧V ) | 1100 | |
