| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.08mm | Number Of Strands: | 24 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver/Nylon | Key Word: | Custom Factory Price USTC White Silk Covered Round Enameled Copper Litz Wire |
| Product Name: | Custom Factory Price USTC White Silk Covered Round Enameled Copper Litz Wire | ||
| Highlight: | Custom Factory Price USTC Litz Wire,White Silk Covered USTC Litz Wire,Round Enameled Copper USTC Litz Wire |
||

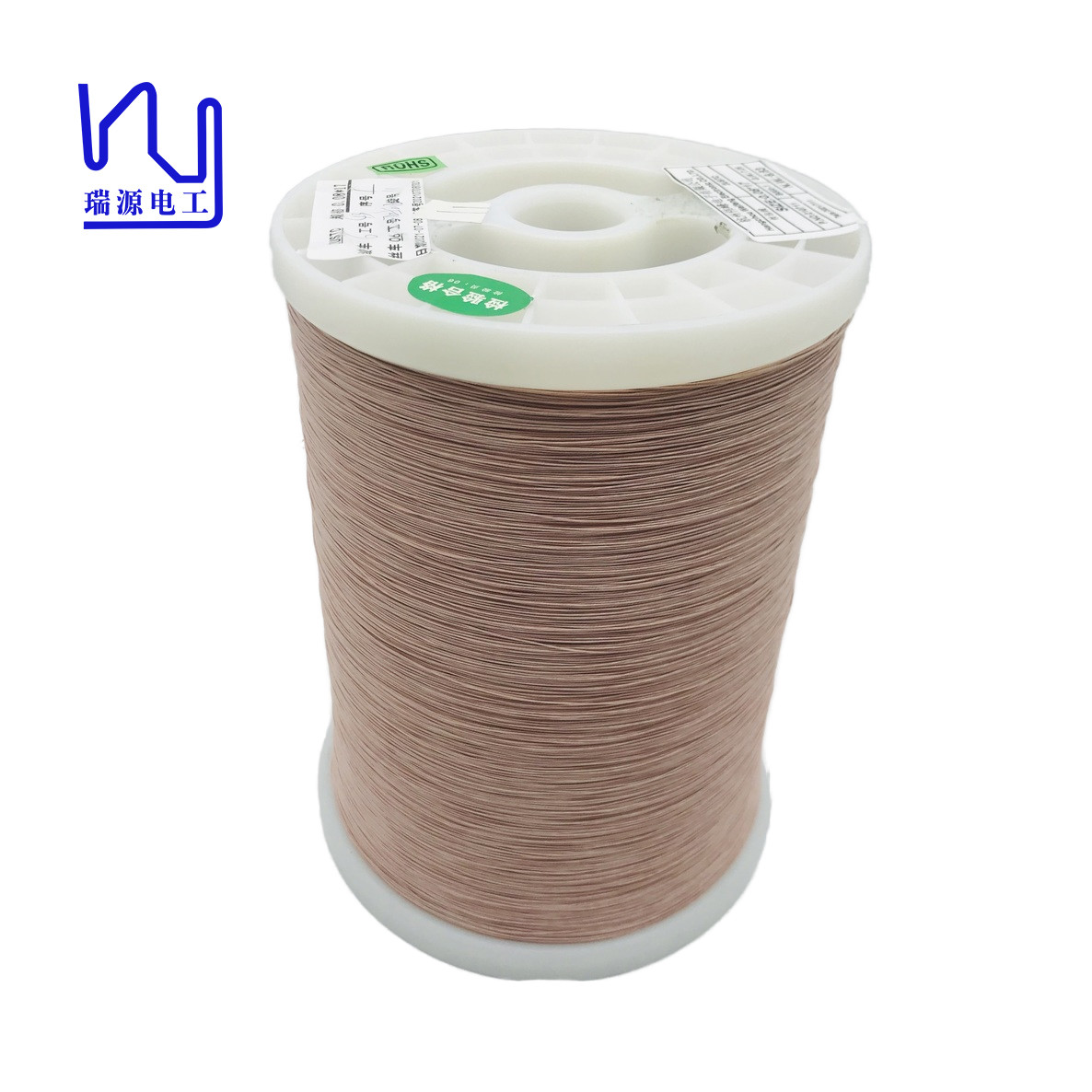

Custom Factory Price USTC White Silk Covered Round Enameled Copper Litz Wire
We also offer the option of flat silk covered litz wire. This versatility allows for further customization based on your specific application needs. Simply provide us with the width and thickness of the flat silk covered litz wire and our team of experts will produce it to your exact specifications. This adaptability makes our products suitable for a variety of industrial applications, from electric vehicle charging stations to transformer windings, where space and efficiency are critical.
| Description Conductor diameter*Strand number 0.08x24 silk covered litz wire |
||
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.005 | |
| Maximal overall diameter (mm) | 0.103 | |
| Thermal Class | 155 | |
Strand Composition |
Strand number | 24 |
| Pitch(mm) | 20±3 | |
| Stranding direction | S | |
Insulation layer |
Category | Nylon |
| UL | / | |
| Material specs(mm*mm or D) | 250+300 | |
| Times of Wrapping | 2 | |
| Overlap(%) or thickness(mm),min | 0.05 | |
| Wrapping direction | S | |
Characteristics |
Max O. D(mm) | 0.66 |
| Max pin holes 个/6m | 30 | |
| Max resistance (Ω/Km at20℃) | 157.3 | |
| Mini breakdown voltage (≧V ) | 1100 | |
