| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.08mm | Number Of Strands: | 24 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver/Nylon | Key Word: | USTC/UDTC 155/180 Silk Covered Litz Wire Copper Conductor For Winding |
| Product Name: | USTC/UDTC 155/180 Silk Covered Litz Wire Copper Conductor For Winding | ||
| Highlight: | Copper Conductor Silk Covered Litz Wire,Winding Silk Covered Litz Wire,USTC Silk Covered Litz Wire |
||

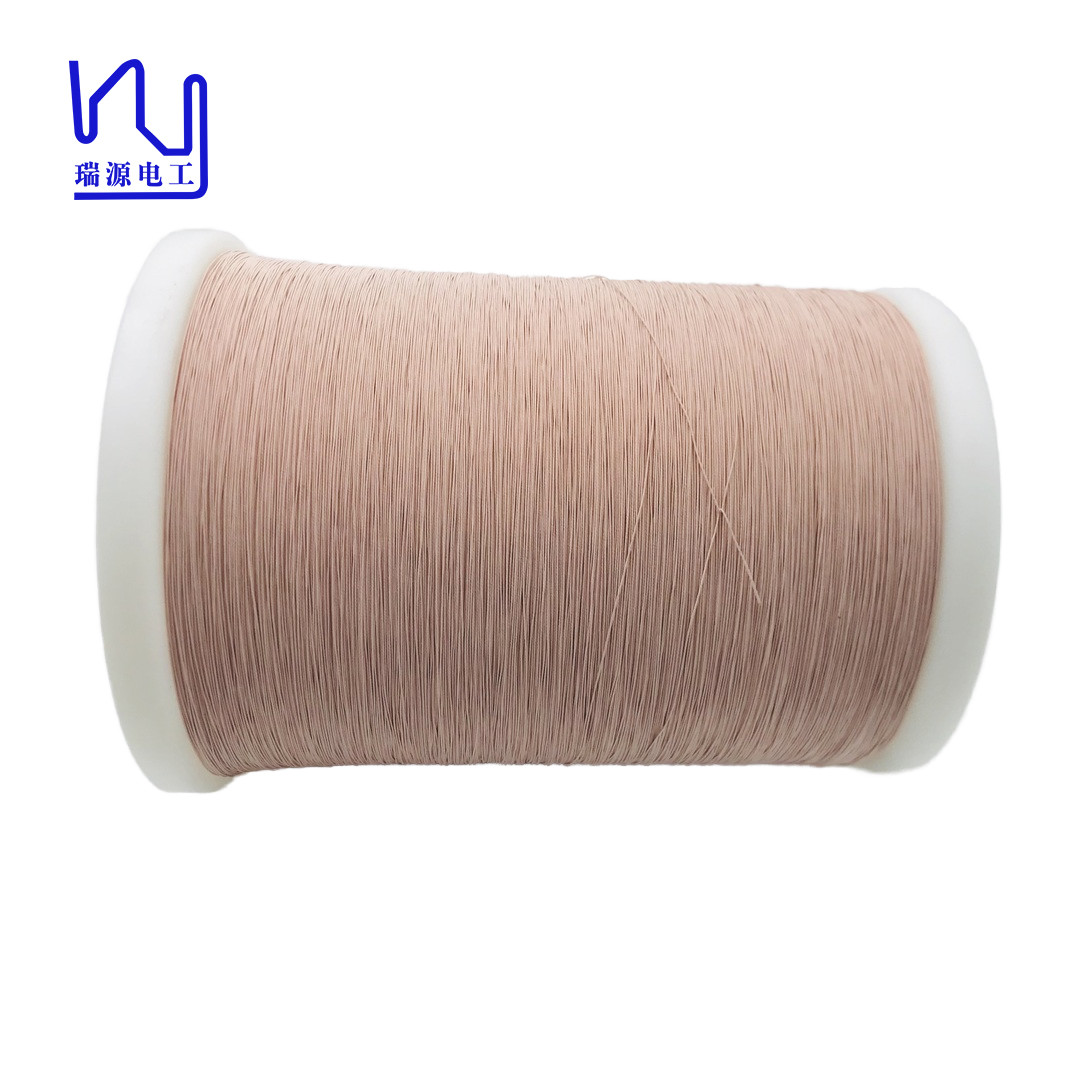

USTC/UDTC 155/180 Silk Covered Litz Wire Copper Conductor For Winding
One of the standout features of our silk covered wire is its fully customizable nature. We understand that each application may require different specifications, so we offer flexibility in terms of single wire size and strand count. Our manufacturing capabilities enable us to produce silk covered litz wire with a minimum single wire diameter of 0.03 mm and up to 10,000 strands. This level of customization ensures that the product you receive exactly matches your design requirements, improving the overall performance of your electrical system.
| Description Conductor diameter*Strand number 0.08x24 silk covered litz wire |
||
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.005 | |
| Maximal overall diameter (mm) | 0.103 | |
| Thermal Class | 155 | |
Strand Composition |
Strand number | 24 |
| Pitch(mm) | 20±3 | |
| Stranding direction | S | |
Insulation layer |
Category | Nylon |
| UL | / | |
| Material specs(mm*mm or D) | 250+300 | |
| Times of Wrapping | 2 | |
| Overlap(%) or thickness(mm),min | 0.05 | |
| Wrapping direction | S | |
Characteristics |
Max O. D(mm) | 0.66 |
| Max pin holes 个/6m | 30 | |
| Max resistance (Ω/Km at20℃) | 157.3 | |
| Mini breakdown voltage (≧V ) | 1100 | |
