| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.08mm | Number Of Strands: | 24 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver/Nylon | Key Word: | USTC-F 0.08mm X 24 Silk Covered Litz Wire For Transformer |
| Product Name: | USTC-F 0.08mm X 24 Silk Covered Litz Wire For Transformer | ||
| Highlight: | 0.08mm Silk Covered Litz Wire,USTC-F Silk Covered Litz Wire,Transformer Silk Covered Litz Wire |
||

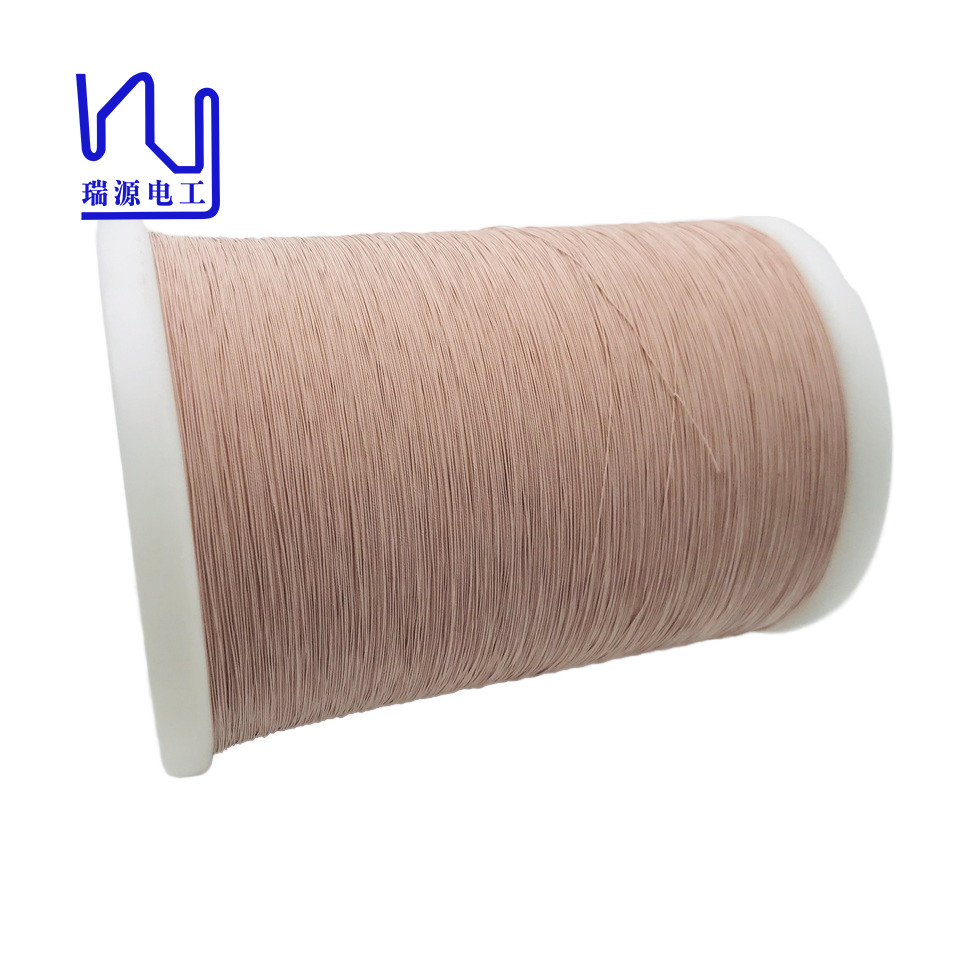

USTC-F 0.08mm x 24 Silk Covered Litz Wire For Transformer
Our silk covered litz wire is carefully crafted from 0.08mm enameled copper wire, twisted from 24 strands to form a strong yet flexible conductor. The outer layer is covered with nylon yarn, providing extra insulation . The minimum order quantity for this particular product is 10kg and can be customized in small quantities to suit your specific needs.
| Description Conductor diameter*Strand number 0.08x24 silk covered litz wire |
||
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.005 | |
| Maximal overall diameter (mm) | 0.103 | |
| Thermal Class | 155 | |
Strand Composition |
Strand number | 24 |
| Pitch(mm) | 20±3 | |
| Stranding direction | S | |
Insulation layer |
Category | Nylon |
| UL | / | |
| Material specs(mm*mm or D) | 250+300 | |
| Times of Wrapping | 2 | |
| Overlap(%) or thickness(mm),min | 0.05 | |
| Wrapping direction | S | |
Characteristics |
Max O. D(mm) | 0.66 |
| Max pin holes 个/6m | 30 | |
| Max resistance (Ω/Km at20℃) | 157.3 | |
| Mini breakdown voltage (≧V ) | 1100 | |
