| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 75 Strands 0.05mm PI Kapton Taped Winding Copper Litz Wire For Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Conductor: | Copper |
| Insulation: | PI Film | Rated Temperature: | 155 |
| Key Word: | 75 Strands 0.05mm PI Kapton Taped Winding Copper Litz Wire For Transformer | No. Of Strands: | 75 |
| Highlight: | 75 Strands Winding Copper Litz Wire,Transformer Winding Copper Litz Wire,0.05mm Winding Copper Litz Wire |
||

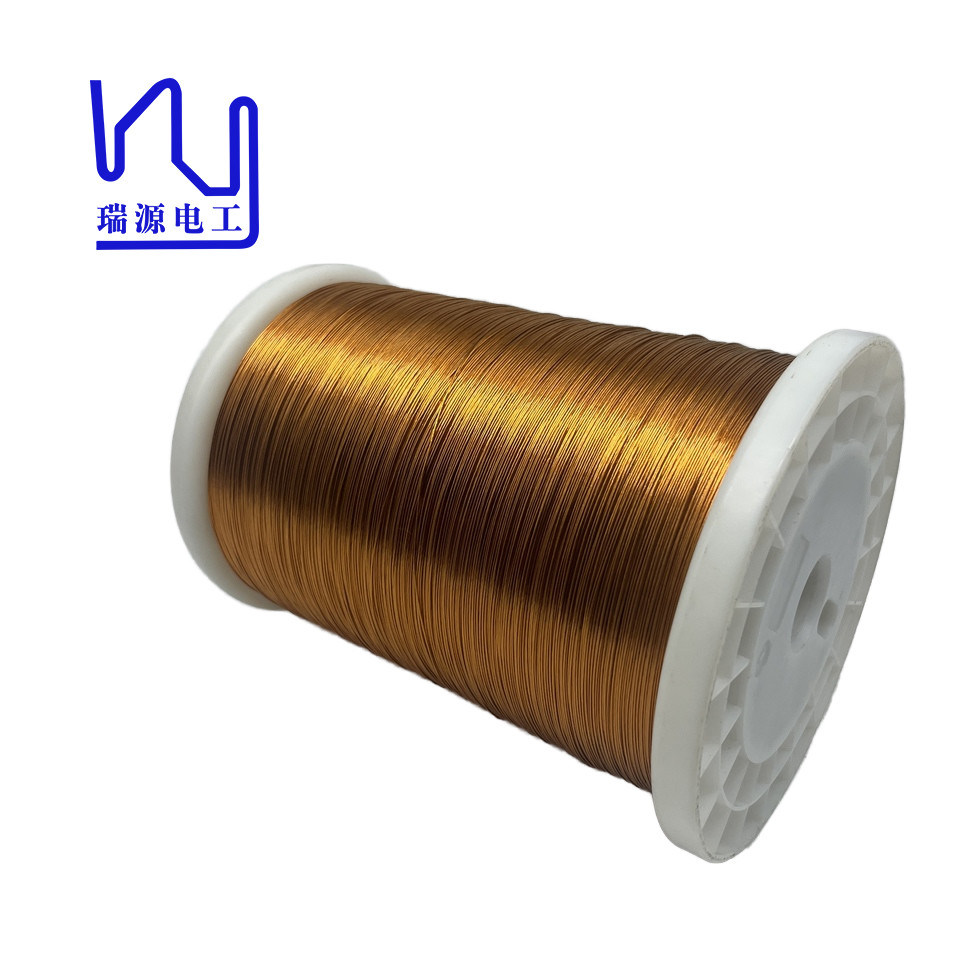

75 Strands 0.05mm PI Kapton taped Winding Copper Litz Wire for Transformer
In the industrial manufacturing sector, the excellent electrical properties of the taped litz wire make it an excellent choice for high-frequency transformers, where efficient energy transfer and minimal losses are crucial. The litz wire's flexibility and strength also make it suitable for use in electric motors, generators and other rotating machinery, where it can withstand the mechanical stress and vibration typically encountered in these environments. In addition, the enhanced insulation properties of polyesterimide film ensure that wires can operate safely and reliably in high-voltage applications, reducing the risk of electrical failure and downtime.
| Ttem
NO. |
Single wire
diameter mm |
Conductor
diameter mm |
O.D.mm | Resistance
Ω /m |
Dielectric strength V |
No.of
strands |
Overlap % |
|
Tech requirement |
0.058-0.069 | 0.05 ±0.003 | ≤0.77 | ≤0.1365 | ≥6000 | 75 | ≥50 |
| 1 | 0.058-0.061 | 0.047-0.050 | 0.65-0.73 | 0.1162 | 11500 | 75 | 52 |
| 2 | 0.058-0.061 | 0.045-0.050 | 0.65-0.73 | 0.1166 | 11600 | 75 | 53 |
