| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Taped Litz Wire 0.05mm X 75 Stranded Copper Wire PI Tape Litz Wire Solid Conductor | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Conductor: | Copper |
| Insulation: | PI Film | Rated Temperature: | 155 |
| Key Word: | Taped Litz Wire 0.05mm X 75 Stranded Copper Wire PI Tape Litz Wire Solid Conductor | No. Of Strands: | 75 |
| Highlight: | 75 Stranded Copper Litz Wire,0.05mm Copper Litz Wire,PI Tape Copper Litz Wire |
||

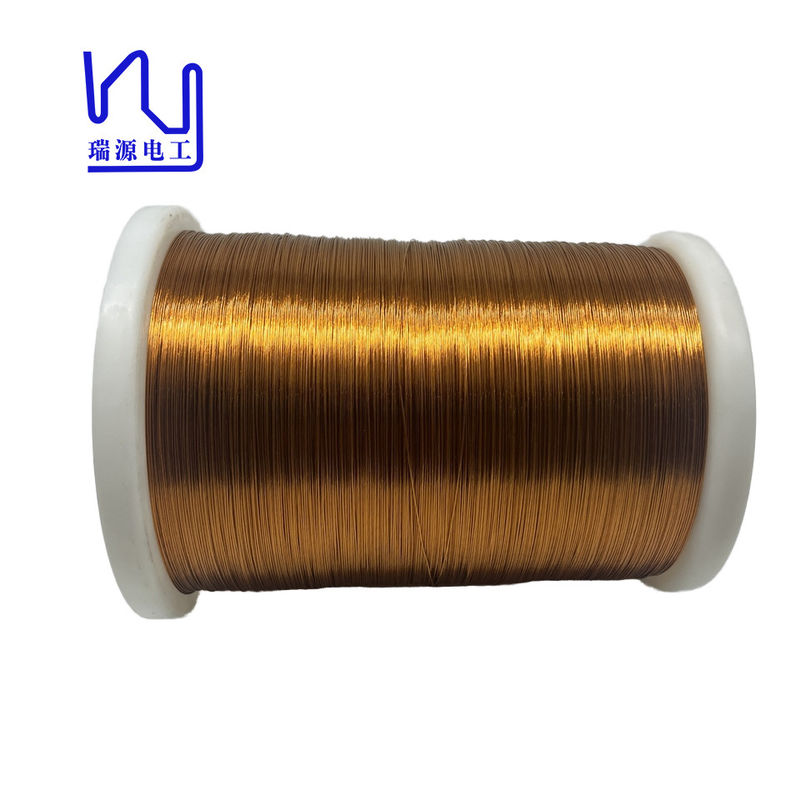

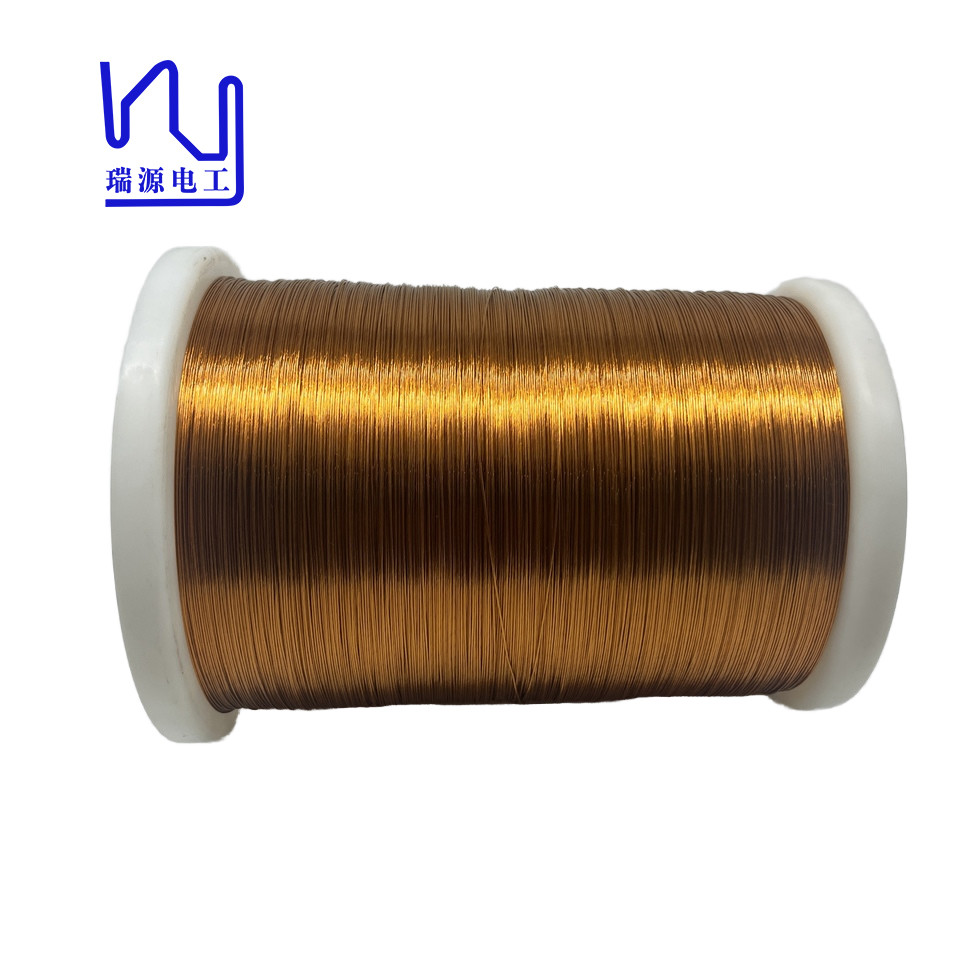

Taped Litz Wire 0.05mm x 75 Stranded Copper Wire PI tape litz Wire solid conductor
One of the outstanding features of our taped litz wire is the use of polyesterimide film as the insulating material. Polyesterimide film is recognized as the best insulation material in the world, with excellent thermal stability, chemical resistance and mechanical toughness. This high-performance insulation material can withstand extreme temperatures and harsh environmental conditions, ensuring the longevity and reliability of Litz wire in demanding applications. In addition, the polyesterimide film significantly improves voltage resistance levels and electrical isolation, providing additional safety and performance.
| Ttem
NO. |
Single wire
diameter mm |
Conductor
diameter mm |
O.D.mm | Resistance
Ω /m |
Dielectric strength V |
No.of
strands |
Overlap % |
|
Tech requirement |
0.058-0.069 | 0.05 ±0.003 | ≤0.77 | ≤0.1365 | ≥6000 | 75 | ≥50 |
| 1 | 0.058-0.061 | 0.047-0.050 | 0.65-0.73 | 0.1162 | 11500 | 75 | 52 |
| 2 | 0.058-0.061 | 0.045-0.050 | 0.65-0.73 | 0.1166 | 11600 | 75 | 53 |
