| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Diameter 0.04 - 0.30mm |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T |
| Supply Ability: | Satisfy your demand |
| Insulation: | Enamel | Construction (strands*single Wire): | 0.1mm* 35 |
|---|---|---|---|
| Key Word: | Multi Strands Copper Litz Wire Bondable Manget Wire For High Frequency Application | Single Wire Outer Diameter: | 0.1mm* 35 |
| Breakdown Voltage: | >2000V | Product Name: | Multi Strands Copper Litz Wire Bondable Manget Wire For High Frequency Application |
| Diameter: | 0.1mm | Rated Temperature: | 155 |
| Highlight: | Manget Copper Litz Wire,35 Strands Copper Litz Wire,0.1mm Copper Litz Wire |
||

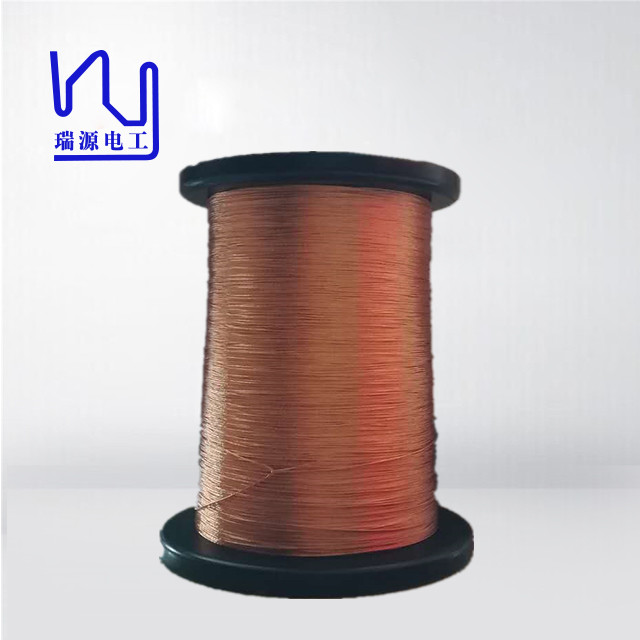

0.1mm* 35 Multi Strands Copper Litz Wire Manget Litz Wire
The small wires are then twisted into a bundle such that each wire spends the same amount of time in the middle and on the outside of the bundle. This creates multiple electrically identical routes for the electric to take, reducing the apparent resistance.
Features and benefits:
a) Minimize the power losses due to "skin effect".
b) Superior "Q" characteristics at high frequencies.
c) Lower eddy current loss to obtain less equivalent resistance which is advantageous for high voltage and high impedance coils design.
Certificates:
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
Application:
High frequency inductors and transformers, inverters, communication equipment, ultrasonic equipment, sonar equipment, television and radio equipment and induction heating equipment. With the newly immerged interest in wireless charging, inductive chargers
|
Item |
Copper litz wire |
|
Conductor diameter |
0.100 |
|
Construction (strands*single wire) |
35/0.10 |
|
Stranding direction |
S |
|
MOQ |
10KG |
