| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.08mm | Number Of Strands: | 10 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver | Key Word: | 0.03mm To 0.5mm High Frequency Magnet Stranded Twisted Silk Covered Copper Litz Wire |
| Product Name: | 0.03mm To 0.5mm High Frequency Magnet Stranded Twisted Silk Covered Copper Litz Wire | ||
| Highlight: | Twisted silk covered Copper Litz Wire,0.03mm litz magnet wire,0.5mm litz magnet wire |
||

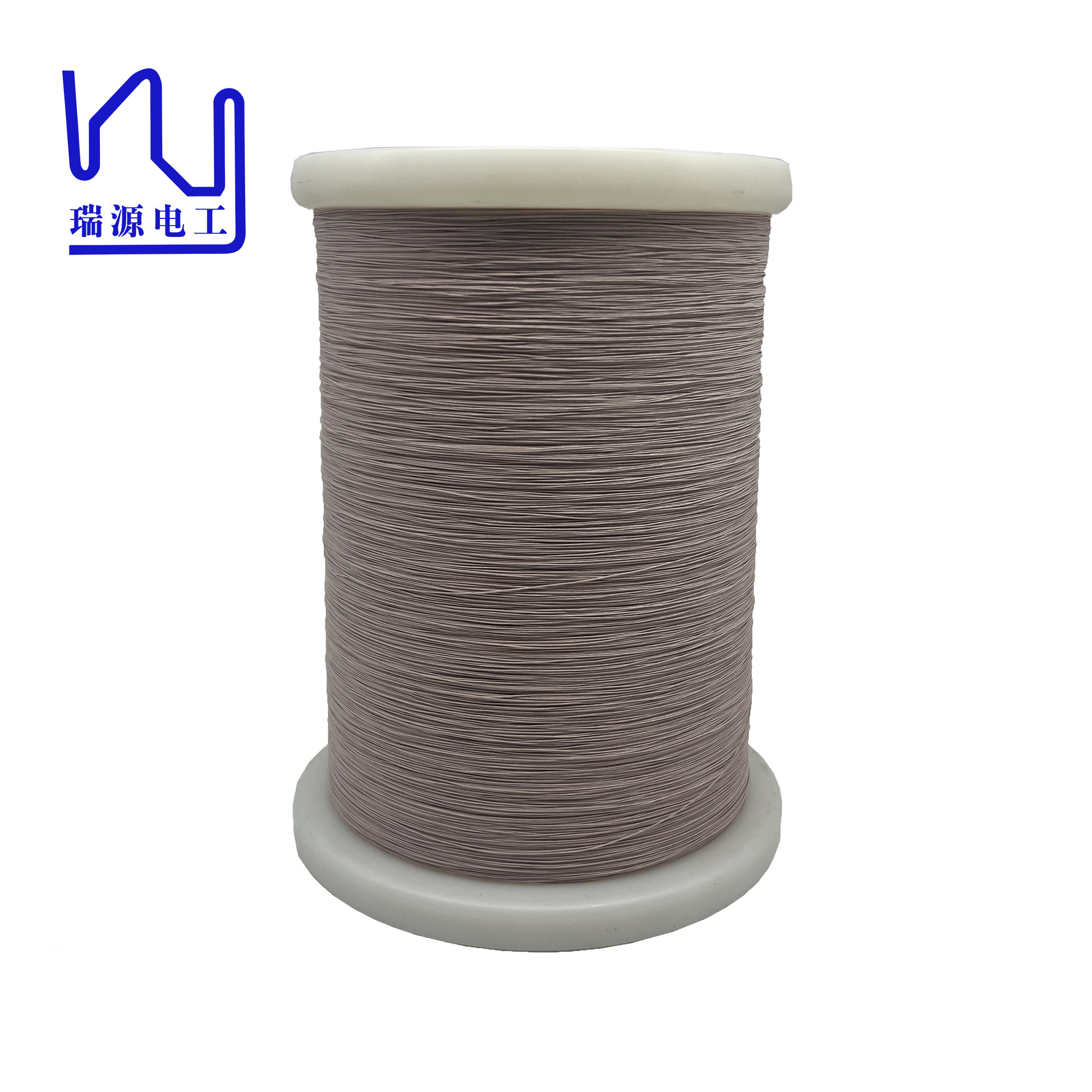

0.03mm to 0.5mm High Frequency Magnet Stranded Twisted silk covered Copper Litz Wire
With our commitment to quality and customization, our silk covered litz wire is the ideal solution for businesses looking for reliable and custom wiring solutions. Whether you require specific specifications, a unique configuration, or flat silk covered litz wire, we have the expertise and capabilities to meet your needs. Contact us today to discuss your requirements and experience the difference our custom silk covered litz wires can make in your industrial application.
|
Description Conductor diameter*Strand number |
1USTC-F 0.08*10 |
|
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.007 | |
| Maximal overall diameter (mm) | 0.120 | |
| Thermal Class (℃) | 155 | |
Strand Composition |
Strand number | 10 |
| Pitch(mm) | 29±5 | |
| Stranding direction | S | |
Insulation layer |
Category | Polyester |
| UL | / | |
| Material specs(mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
Characteristics |
Max O. D (mm) | 0.45 |
| Max pin holes 个/6m | 20 | |
| Max resistance (Ω/Km at20℃) | 377.5 | |
| Mini breakdown voltage (V ) | 2000 | |
