| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.08mm | Number Of Strands: | 10 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver | Key Word: | High Frequency Stranded Silk Covered Litz Wire |
| Product Name: | High Frequency Stranded Silk Covered Litz Wire | ||
| Highlight: | Silk Covered Litz Wire,Stranded Silk Covered Litz Wire,High Frequency Litz Wire |
||

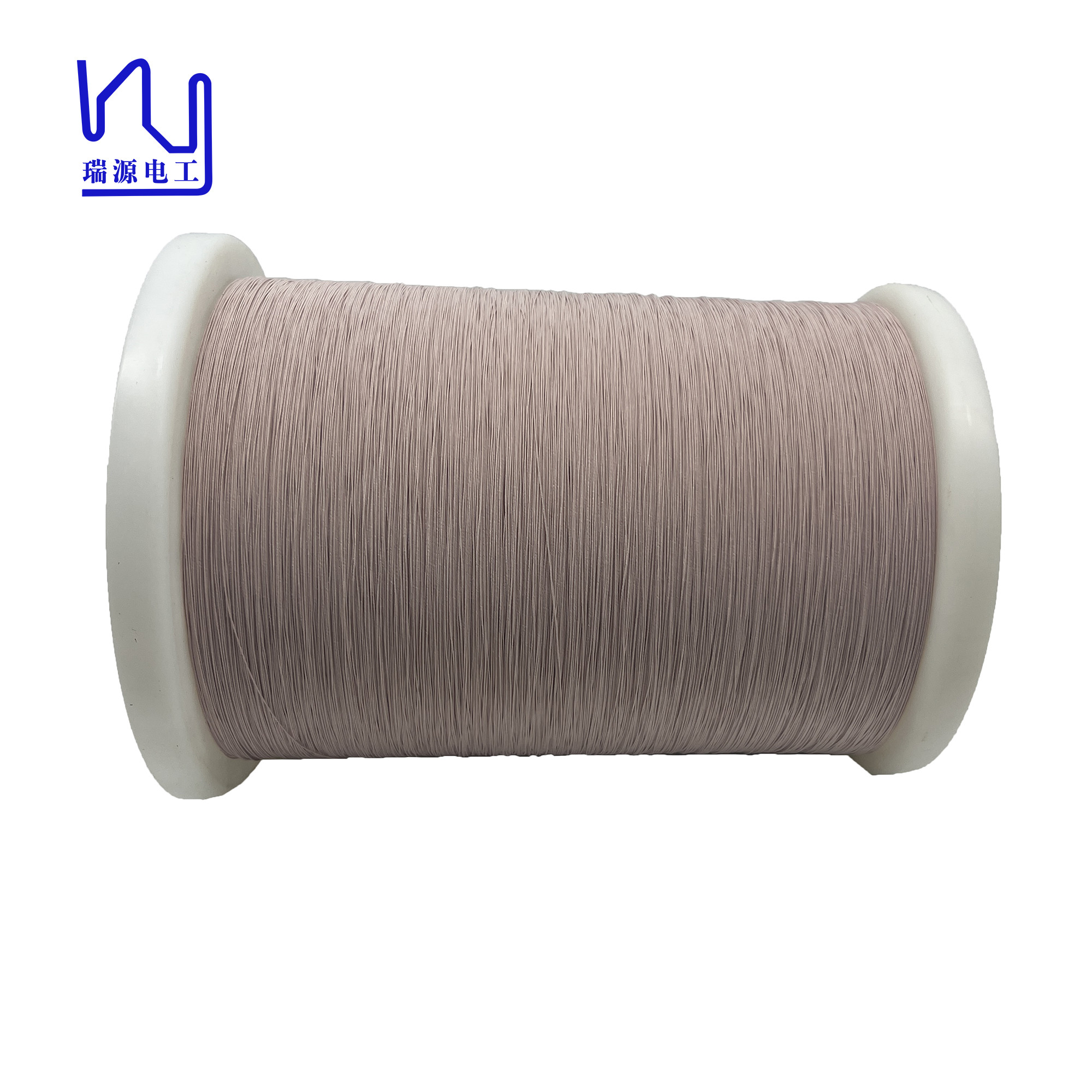

High Frequency Stranded Silk Covered Litz Wiree
Of course, when designing new litz wire, the number of strands is chosen with the size of the individual wires in mind. More important is the resistance it need to achieve, the outer diameter, etc. We have a team of professionals who can support you in this regard.
Whether you require specific specifications or a unique configuration, we can produce custom silk-covered wire to your design. Additionally, we are able to press the wire into flat wire covered litz wire, allowing further customization to your width and thickness preferences.
|
Description Conductor diameter*Strand number |
1USTC-F 0.08*10 |
|
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.007 | |
| Maximal overall diameter (mm) | 0.120 | |
| Thermal Class (℃) | 155 | |
Strand Composition |
Strand number | 10 |
| Pitch(mm) | 29±5 | |
| Stranding direction | S | |
Insulation layer |
Category | Polyester |
| UL | / | |
| Material specs(mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
Characteristics |
Max O. D (mm) | 0.45 |
| Max pin holes 个/6m | 20 | |
| Max resistance (Ω/Km at20℃) | 377.5 | |
| Mini breakdown voltage (V ) | 2000 | |
