| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.08mm | Number Of Strands: | 10 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver | Key Word: | Insulated Wire Winding Litz Wire Stranded Copper House Electrical Cable Wire |
| Product Name: | Insulated Wire Winding Litz Wire Stranded Copper House Electrical Cable Wire | ||
| Highlight: | House Electrical Cable Litz Wire,Insulated Wire Winding Litz Wire,Stranded Copper Litz Wire |
||

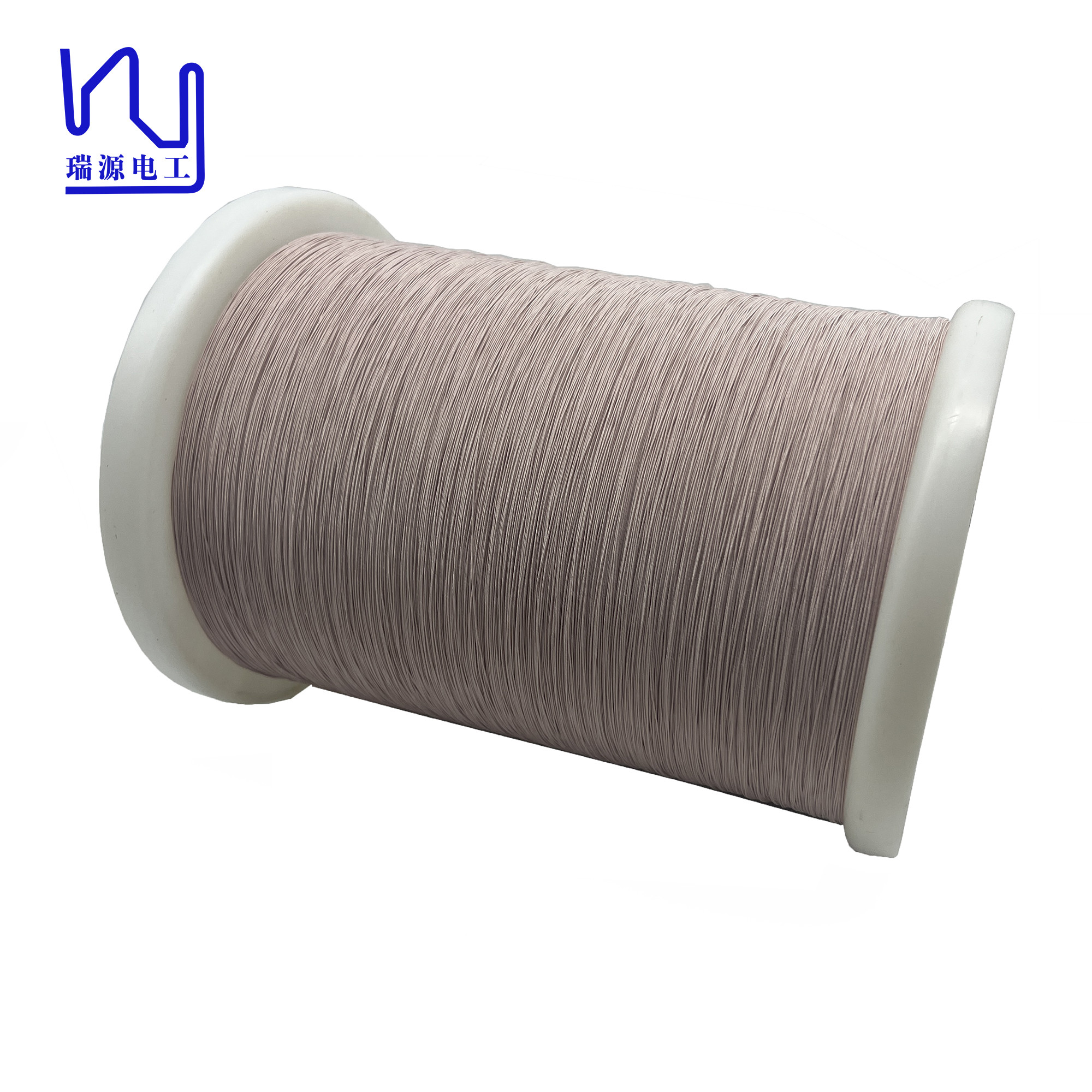

Insulated Wire Winding Litz Wire Stranded Copper House Electrical Cable Wire
Our silk covered litz wire is a fully customizable product with flexibility in both wire size and strand count.
The smallest single wire we can use for making litz wire is 0.03mm enameled copper wire, and the maximum number of strands is 10,000.
|
Description Conductor diameter*Strand number |
1USTC-F 0.08*10 |
|
Single wire |
Conductor diameter(mm) | 0.080 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.007 | |
| Maximal overall diameter (mm) | 0.120 | |
| Thermal Class (℃) | 155 | |
Strand Composition |
Strand number | 10 |
| Pitch(mm) | 29±5 | |
| Stranding direction | S | |
Insulation layer |
Category | Polyester |
| UL | / | |
| Material specs(mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
Characteristics |
Max O. D (mm) | 0.45 |
| Max pin holes 个/6m | 20 | |
| Max resistance (Ω/Km at20℃) | 377.5 | |
| Mini breakdown voltage (V ) | 2000 | |
