| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.05mm | Number Of Strands: | 8125 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver | Key Word: | Motor Winding Wire High Frequency High Voltage Flat Litz Wire For Transformer |
| Product Name: | Motor Winding Wire High Frequency High Voltage Flat Litz Wire For Transformer | ||
| Highlight: | High Frequency Flat Litz Wire,High Voltage Flat Litz Wire,Transformer Flat Litz Wire |
||

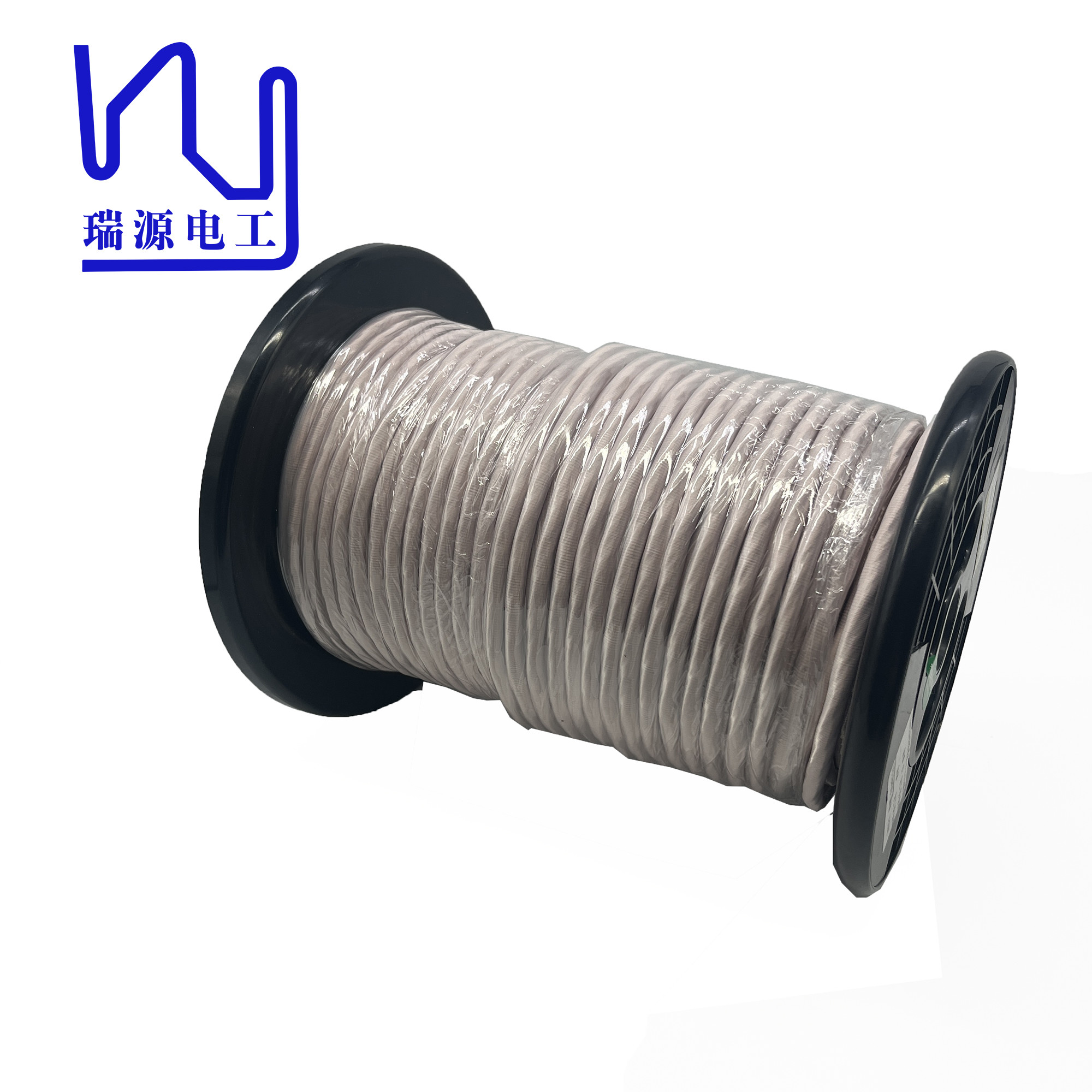

Motor Winding Wire High Frequency High Voltage Flat Litz Wire For Transformer
This is a type of litz wire specifically designed for use in transformers and high-frequency, high-voltage applications. Litz wire is known for its ability to reduce AC resistance and minimize skin effect, making it suitable for such applications. If you have more specific questions about this type of litz wire or its applications, feel free to ask!
|
Type Conductor diameter*Strand number |
1USTC-F 0.05*8125 | |
|
Single wire(strand) |
Conductor diameter(mm) | 0.050±0.003 |
| overall diameter (mm) | 0.057-0.086 | |
| Thermal Class(℃) | 155 | |
| Strands construction |
Strands number | 13*5*5*5*5 |
| Pitch(mm) | 78±10 | |
| bunching direction | S | |
|
Insulation layer |
Material type | Nylon |
| Material specs(mm*mm or D) | 840 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.055 | |
| Wrapping direction | Z | |
|
Characteristics |
Max O. D(mm) | 8.55 |
| Max pinholes fault/6m | 180 | |
| Max resistance (Ω/Km at20℃) | 1.260 | |
| Breakdown voltage Mini (V) | 1100 | |
