| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.05mm | Number Of Strands: | 8125 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver | Key Word: | 8125/0.05mm USDC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire |
| Product Name: | 8125/0.05mm USDC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire | ||
| Highlight: | High Temperature Litz Wire,0.05mm USDC Litz Wire,High Frequency Litz Wire |
||

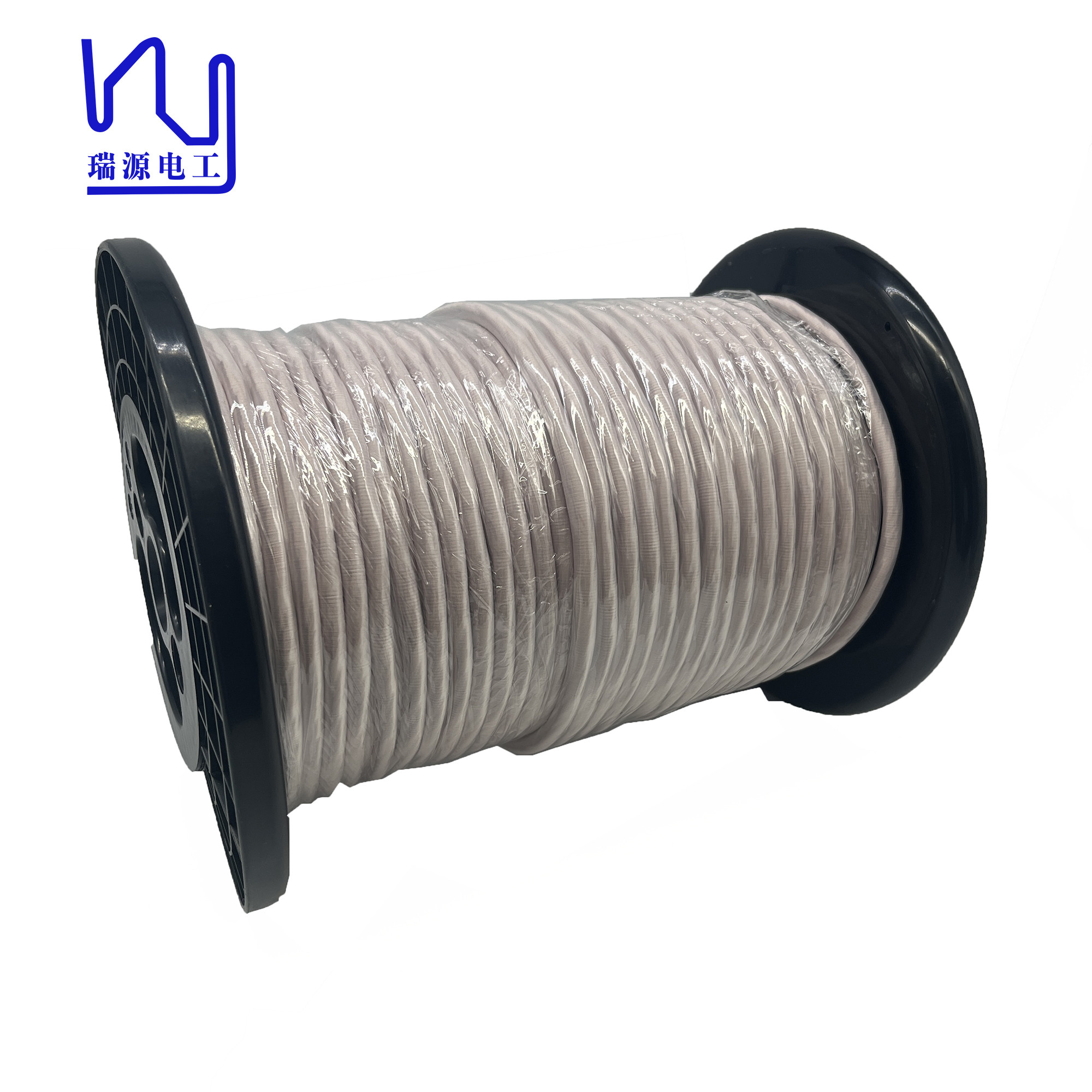

8125/0.05mm USDC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
At our factory, we prioritize quality and precision in litz wire manufacturing. Each wire is carefully crafted to meet the highest standards, ensuring consistent performance and reliability. Our commitment to customization means we can tailor litz wire to meet our customers' exact specifications, providing them with a solution that perfectly matches their unique requirements.
|
Type Conductor diameter*Strand number |
1USTC-F 0.05*8125 | |
|
Single wire(strand) |
Conductor diameter(mm) | 0.050±0.003 |
| overall diameter (mm) | 0.057-0.086 | |
| Thermal Class(℃) | 155 | |
| Strands construction |
Strands number | 13*5*5*5*5 |
| Pitch(mm) | 78±10 | |
| bunching direction | S | |
|
Insulation layer |
Material type | Nylon |
| Material specs(mm*mm or D) | 840 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.055 | |
| Wrapping direction | Z | |
|
Characteristics |
Max O. D(mm) | 8.55 |
| Max pinholes fault/6m | 180 | |
| Max resistance (Ω/Km at20℃) | 1.260 | |
| Breakdown voltage Mini (V) | 1100 | |
