| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.05mm | Number Of Strands: | 8125 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver | Key Word: | 1100V 8125/0.05mm High Frequency Motor Winding Silk Covered Copper Litz Wire |
| Product Name: | 1100V 8125/0.05mm High Frequency Motor Winding Silk Covered Copper Litz Wire | ||
| Highlight: | 1100V Litz Wire,High Frequency Litz Wire,0.05mm Litz Wire |
||

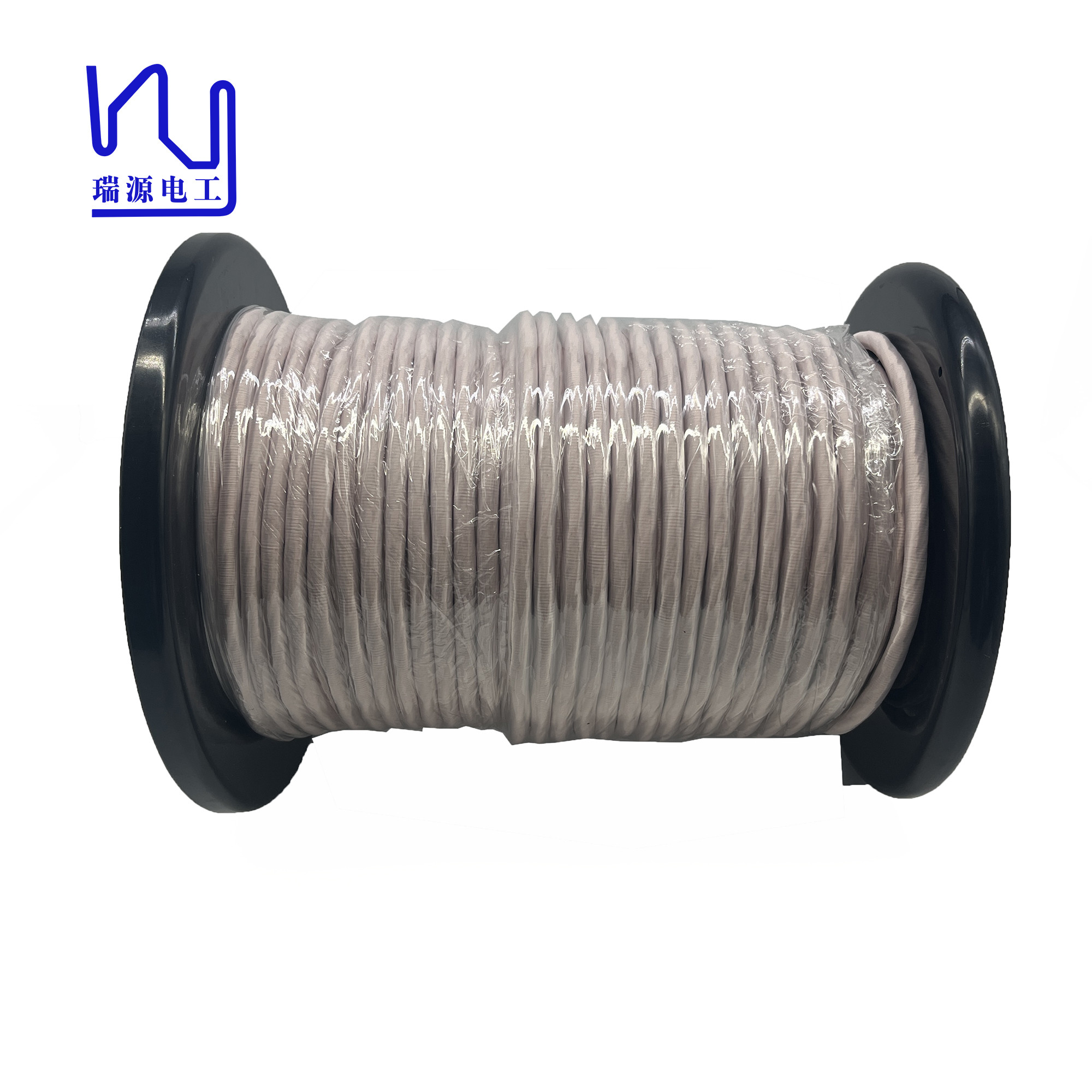

1100V 8125/0.05mm High Frequency Motor Winding Silk Covered Copper Litz Wire
The large number of strands in this Litz wire ensures enhanced conductivity and reduced skin effect, making it an excellent choice for high frequency applications. Its customizable nature allows custom solutions to meet specific design requirements, providing engineers and designers with the flexibility to optimize their electrical systems.
|
Type Conductor diameter*Strand number |
1USTC-F 0.05*8125 | |
|
Single wire(strand) |
Conductor diameter(mm) | 0.050±0.003 |
| overall diameter (mm) | 0.057-0.086 | |
| Thermal Class(℃) | 155 | |
| Strands construction |
Strands number | 13*5*5*5*5 |
| Pitch(mm) | 78±10 | |
| bunching direction | S | |
|
Insulation layer |
Material type | Nylon |
| Material specs(mm*mm or D) | 840 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.055 | |
| Wrapping direction | Z | |
|
Characteristics |
Max O. D(mm) | 8.55 |
| Max pinholes fault/6m | 180 | |
| Max resistance (Ω/Km at20℃) | 1.260 | |
| Breakdown voltage Mini (V) | 1100 | |
