| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.05mm | Number Of Strands: | 8125 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver | Key Word: | 100% Natural Silk Covered Copper Wire Pure Silk Coated Copper Wire Silk Litz Wire |
| Product Name: | 100% Natural Silk Covered Copper Wire Pure Silk Coated Copper Wire Silk Litz Wire | ||
| Highlight: | Pure Silk Coated Copper Wire,Silk Litz Wire,100% Natural Silk Covered Copper Wire |
||

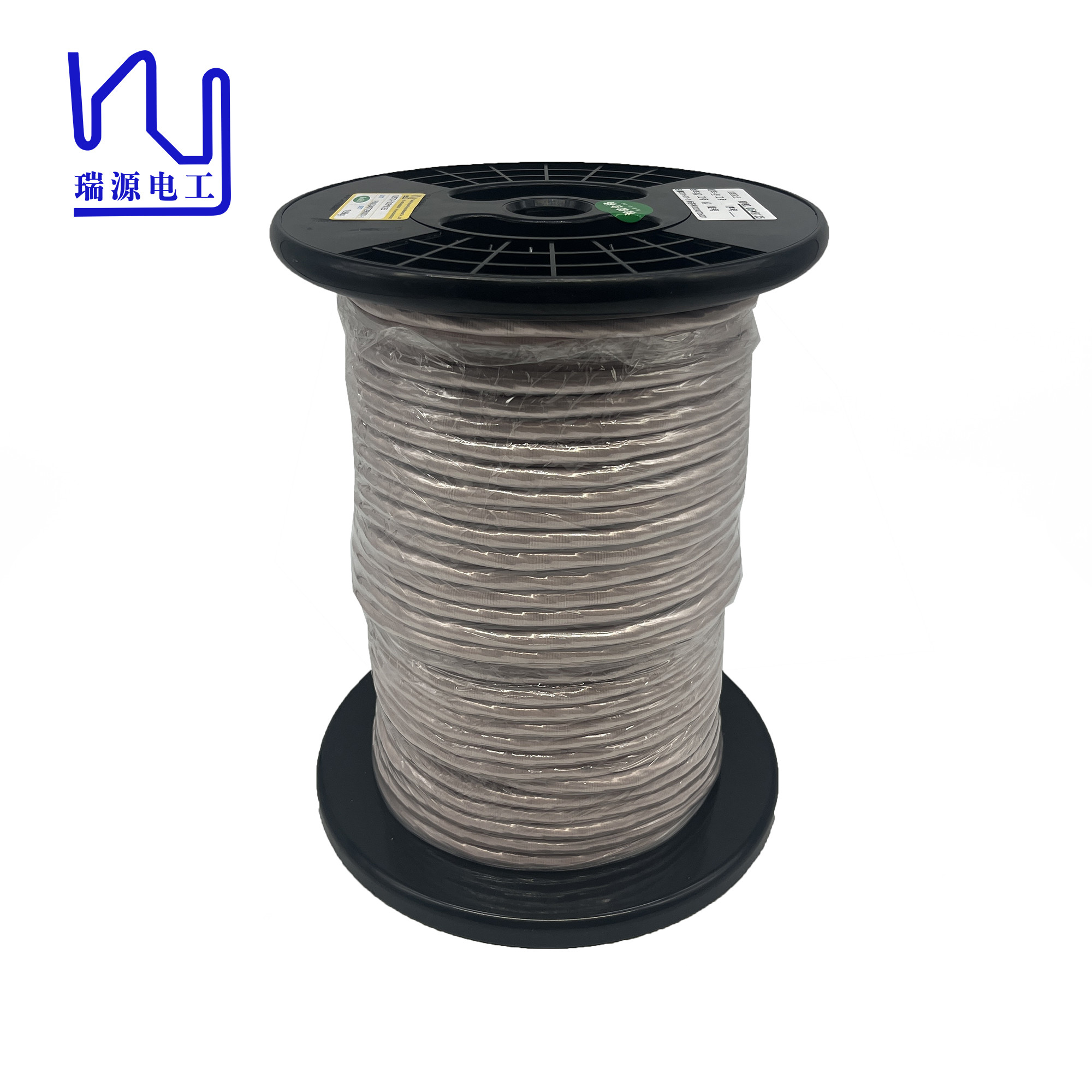

100% natural silk covered copper wire pure silk coated copper wire silk litz wire
This nylon served litz wire is ideal for applications requiring high performance and reliability. Its excellent temperature resistance and durable construction make it suitable for use in a variety of industries, including aerospace, automotive, telecommunications and medical equipment. Whether it's power transmission, signal transmission, or other electrical applications, our Litz wire delivers consistent, reliable performance.
|
Type Conductor diameter*Strand number |
1USTC-F 0.05*8125 | |
|
Single wire(strand) |
Conductor diameter(mm) | 0.050±0.003 |
| overall diameter (mm) | 0.057-0.086 | |
| Thermal Class(℃) | 155 | |
| Strands construction |
Strands number | 13*5*5*5*5 |
| Pitch(mm) | 78±10 | |
| bunching direction | S | |
|
Insulation layer |
Material type | Nylon |
| Material specs(mm*mm or D) | 840 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.055 | |
| Wrapping direction | Z | |
|
Characteristics |
Max O. D(mm) | 8.55 |
| Max pinholes fault/6m | 180 | |
| Max resistance (Ω/Km at20℃) | 1.260 | |
| Breakdown voltage Mini (V) | 1100 | |
