| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.05mm | Number Of Strands: | 8125 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver | Key Word: | 1USTCF 0.05mmx8125 Silk Covered Litz Wire For High Frequency Applications |
| Product Name: | 1USTCF 0.05mmx8125 Silk Covered Litz Wire For High Frequency Applications | ||
| Highlight: | 0.05mmx8125 silk covered litz wire,high frequency silk covered litz wire,1USTCF silk covered litz wire |
||

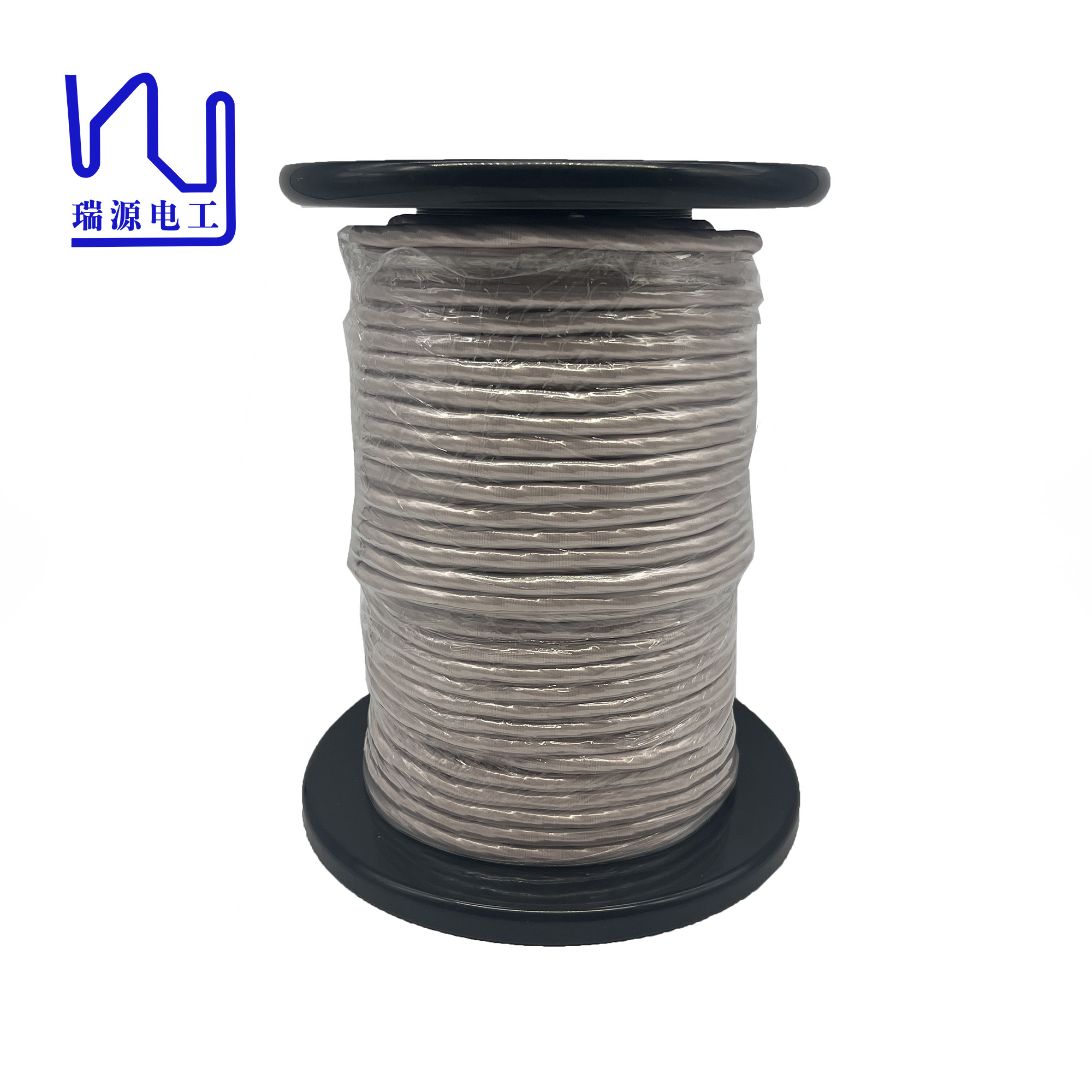

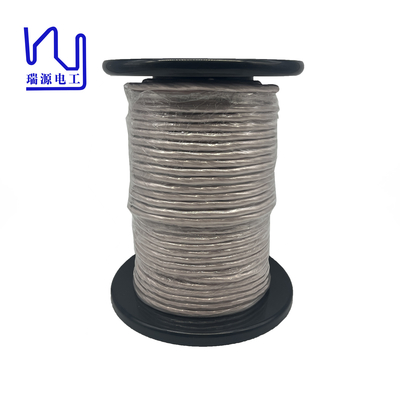

1USTCF 0.05mmx8125 silk covered litz wire for high frequency applications
This Litz wire is made of solderable 0.05mm ultra-fine enameled wire to ensure superior performance and durability. It has a temperature rating of 155 degrees and is designed to withstand harsh conditions, making it suitable for a wide range of applications.
|
Type Conductor diameter*Strand number |
1USTC-F 0.05*8125 | |
|
Single wire(strand) |
Conductor diameter(mm) | 0.050±0.003 |
| overall diameter (mm) | 0.057-0.086 | |
| Thermal Class(℃) | 155 | |
| Strands construction |
Strands number | 13*5*5*5*5 |
| Pitch(mm) | 78±10 | |
| bunching direction | S | |
|
Insulation layer |
Material type | Nylon |
| Material specs(mm*mm or D) | 840 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.055 | |
| Wrapping direction | Z | |
|
Characteristics |
Max O. D(mm) | 8.55 |
| Max pinholes fault/6m | 180 | |
| Max resistance (Ω/Km at20℃) | 1.260 | |
| Breakdown voltage Mini (V) | 1100 | |
