| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | ISO9001/ISO14001/UL/SGS |
| Model Number: | Diameter 0.04 - 0.30mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Key Word: | 180 Rated TemperatureSelf Adhesive Copper Litz Wire Solid Conductor | No. Of Strands: | 7 |
|---|---|---|---|
| Diameter: | 0.1mm | Pitch(mm): | 9.18±15% |
| Insulation: | Enamel | Construction (strands*single Wire): | 7/0.10 |
| Single Wire Outer Diameter: | 0.118-0.14 | Item: | 180 Rated TemperatureSelf Adhesive Copper Litz Wire Solid Conductor |
| Highlight: | Self Adhesive Copper Litz Wire,Solid Conductor Copper Litz Wire,180 Rated Temperature Copper Litz Wire |
||

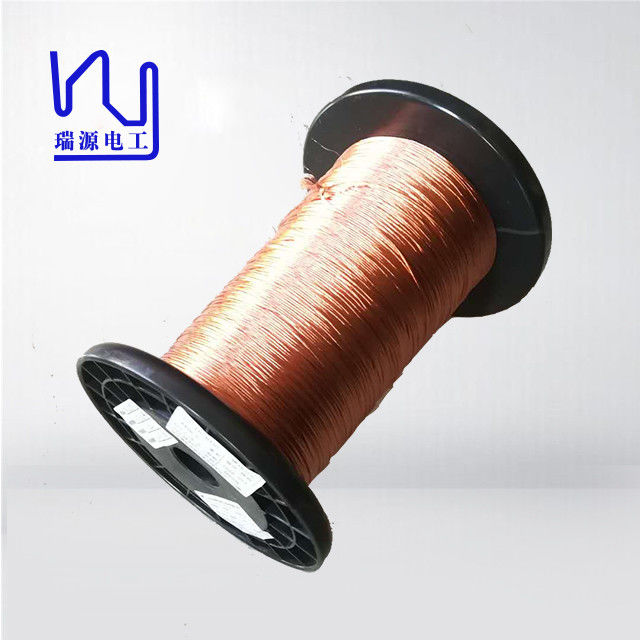

180 Rated TemperatureSelf Adhesive Copper Litz Wire Solid Conductor
One of the standout features of this wire is its 0.1mm thickness, which allows for high frequency use. Additionally, the self adhesive property of this wire makes it easy to handle and work with.
Whether you're working on a small project or a large-scale production, this Copper Litz Wire provides a reliable and efficient option for your motor coil needs. Its high frequency capabilities and smooth appearance make it a versatile choice for a variety of applications.
Features:
Product Name: 0.1mmx7 self adhesive copper litz wire for motor coils
Construction (strands*single wire): 7/0.10
Appearance: Smooth
Pinhole: <7
Conductor: Copper
Features:
Stranded copper wire for increased flexibility and durability
Litz wire for high frequency application for improved performance
Self-adhesive for easy installation
Hot wind self-adhesive litz wire for use in motor coils
|
Item |
Standard |
Test value |
||
|
Apperance |
Smooth |
OK |
OK |
OK |
|
Single wire outer diameter |
0.118-0.14 |
0.120 |
0.122 |
0.123 |
|
Conductor diameter |
0.100±0.008 |
0.10 |
0.10 |
0.10 |
|
Construction (strands*single wire) |
7/0.10 |
7/0.10 |
7/0.10 |
7/0.10 |
|
Stranding direction |
S |
S |
S |
S |
|
Pitch(mm) |
9.18±15% |
9.18 |
9.18 |
9.18 |
|
Pinhole |
<7 |
0 |
1 |
0 |
|
Breakdown voltage |
>2000V |
3900V |
3800V |
4000V |
