| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Diameter 0.04 - 0.30mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Insulation: | Enamel | Construction (strands*single Wire): | 7/0.10 |
|---|---|---|---|
| Key Word: | 0.1mm*7 Self Bonding Stranded Wire High Breakdown Voltage Copper Litz Wire For Transformer | Single Wire Outer Diameter: | 0.118-0.14 |
| Breakdown Voltage: | >2000V | Product Name: | 0.1mm*7 Self Bonding Stranded Wire High Breakdown Voltage Copper Litz Wire For Transformer |
| Diameter: | 0.1mm | Rated Temperature: | 180 |
| Highlight: | 0.1mm*7 Copper Litz Wire,High Breakdown Voltage Copper Litz Wire,transformer Copper Litz Wire |
||

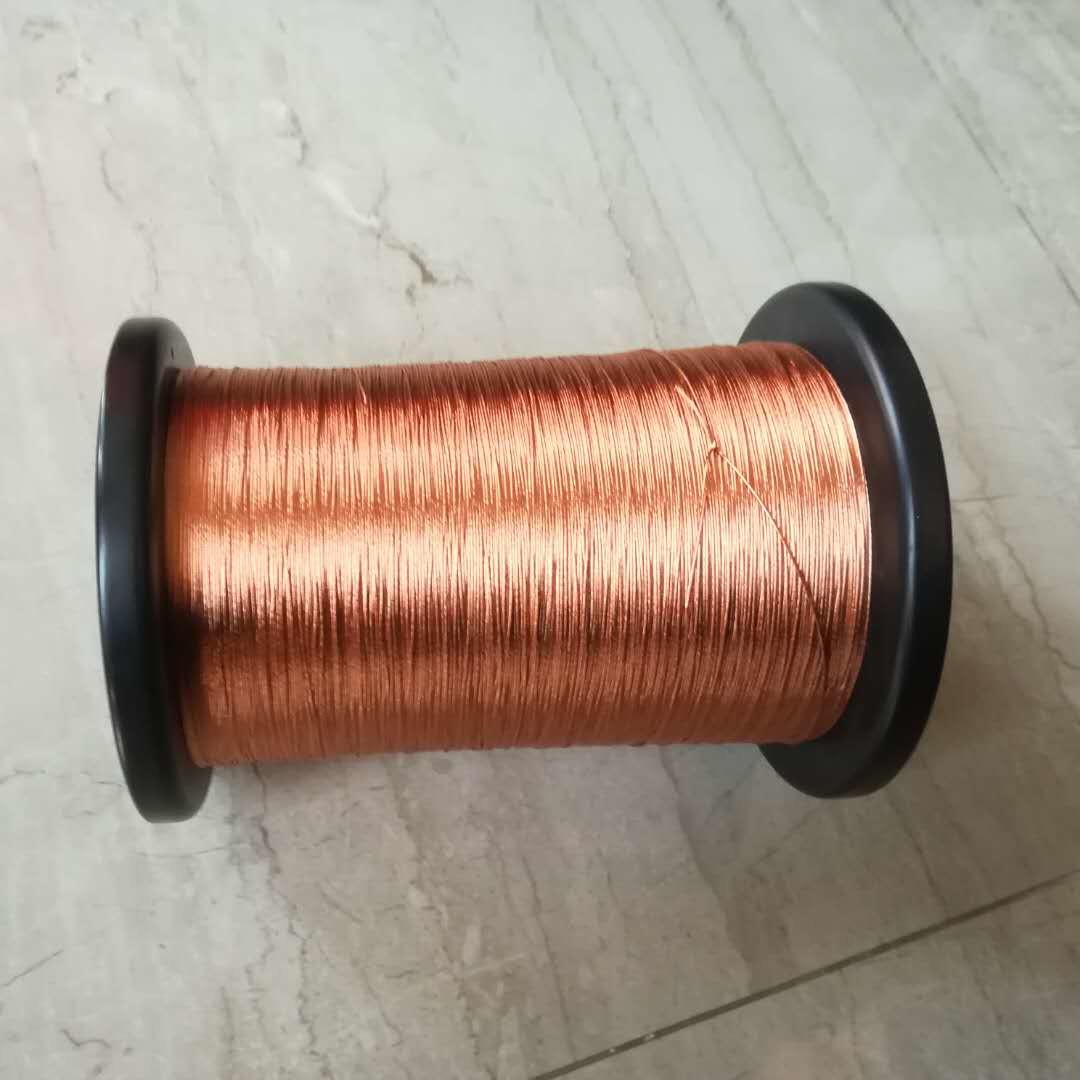

0.1mm*7 Self Bonding Stranded Wire High Breakdown Voltage Copper Litz Wire For Transformer
our custom self-adhesive copper Litz wire represents a cutting-edge solution for demanding electrical and electronic applications. With its superior splicing performance, low-volume customization and superior performance characteristics, the wire is expected to raise the bar for connectivity and reliability across industries. Whether you need hot air self-adhesive or alcohol self-adhesive stranded wire, our products can meet and exceed your expectations. Trust our self-adhesive litz wire to deliver the performance, durability and versatility you need for your most critical applications.
|
Item |
Standard |
Test value |
||
|
Apperance |
Smooth |
OK |
OK |
OK |
|
Single wire outer diameter |
0.118-0.14 |
0.120 |
0.122 |
0.123 |
|
Conductor diameter |
0.100±0.008 |
0.10 |
0.10 |
0.10 |
|
Construction (strands*single wire) |
7/0.10 |
7/0.10 |
7/0.10 |
7/0.10 |
|
Stranding direction |
S |
S |
S |
S |
|
Pitch(mm) |
9.18±15% |
9.18 |
9.18 |
9.18 |
|
Pinhole |
<7 |
0 |
1 |
0 |
|
Breakdown voltage |
>2000V |
3900V |
3800V |
4000V |
