| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | ISO9001/ISO14001/UL/SGS |
| Model Number: | Diameter 0.04 - 0.30mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Appearance: | Smooth | Conductor: | Copper |
|---|---|---|---|
| Product Category: | Copper Litz Wire | Diameter: | 0.1mm |
| Conductor Diameter: | 0.100±0.008 | Breakdown Voltage: | >2000V |
| Construction (strands*single Wire): | 7/0.10 | Key Word: | 0.1mmx7 Self Adhesive Copper Litz Wire For Motor Coils 0.118-0.14mm Wire OD |
| Highlight: | 0.1mmx7 Self Adhesive Copper Litz Wire,0.14mm Self Adhesive Copper Litz Wire,0.118-0.14mm copper litz wire |
||

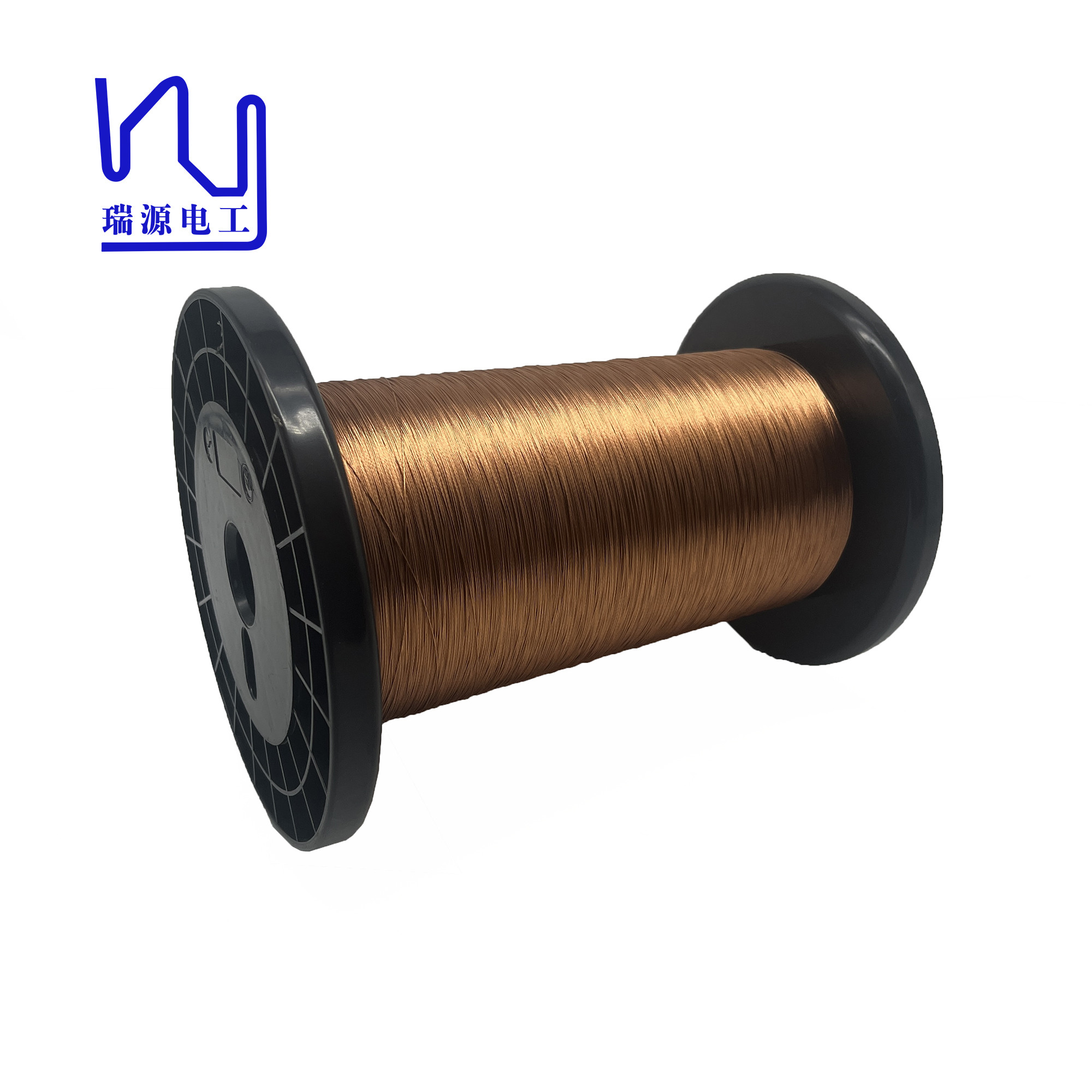

0.1mmx7 Self Adhesive Copper Litz Wire for Motor Coils 0.118-0.14mm Wire OD
One of the standout features of the Copper Litz Wire is its construction. The 7/0.10 stranded copper wire design ensures that the wire is flexible, easy to work with, and can handle a wide range of applications. Whether you need it for electronics, automotive, or other projects, this wire is up to the task.
Another key feature of this wire is the use of solvent self adhesive litz wire technology. This technology ensures that the wire is easy to handle, and that it will stay in place once it is installed. The self adhesive copper litz wire is also resistant to heat and other environmental factors, making it ideal for use in harsh conditions.
Overall, if you are looking for a high quality stranded copper wire that is flexible, durable, and easy to work with, the Copper Litz Wire is an excellent choice. With its 7/0.10 construction, enamel insulation, and solvent self adhesive litz wire technology, this wire is sure to meet your needs and exceed your expectations.
|
Item |
Standard |
Test value |
||
|
Apperance |
Smooth |
OK |
OK |
OK |
|
Single wire outer diameter |
0.118-0.14 |
0.120 |
0.122 |
0.123 |
|
Conductor diameter |
0.100±0.008 |
0.10 |
0.10 |
0.10 |
|
Construction (strands*single wire) |
7/0.10 |
7/0.10 |
7/0.10 |
7/0.10 |
|
Stranding direction |
S |
S |
S |
S |
|
Pitch(mm) |
9.18±15% |
9.18 |
9.18 |
9.18 |
|
Pinhole |
<7 |
0 |
1 |
0 |
|
Breakdown voltage |
>2000V |
3900V |
3800V |
4000V |
