| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Diameter 0.04 - 0.30mm |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation, T/T, L/C |
| Supply Ability: | Satisfy your demand |
| Single Wire Outer Diameter: | 0.118-0.14 | Pitch(mm): | 9.18±15% |
|---|---|---|---|
| Pinhole: | <7 | Rated Temperature: | 180 |
| Conductor Diameter: | 0.100±0.008 | Construction (strands*single Wire): | 7/0.10 |
| Conductor: | Copper | No. Of Strands: | 7 |
| Key Word: | 7 Strands Self Bonding Stranded Wire For Winding Coils | ||
| Highlight: | Winding coils Self Bonding Stranded Wire,7 Strands Self Bonding Stranded Wire,Winding Coil self bonding stranded wire |
||

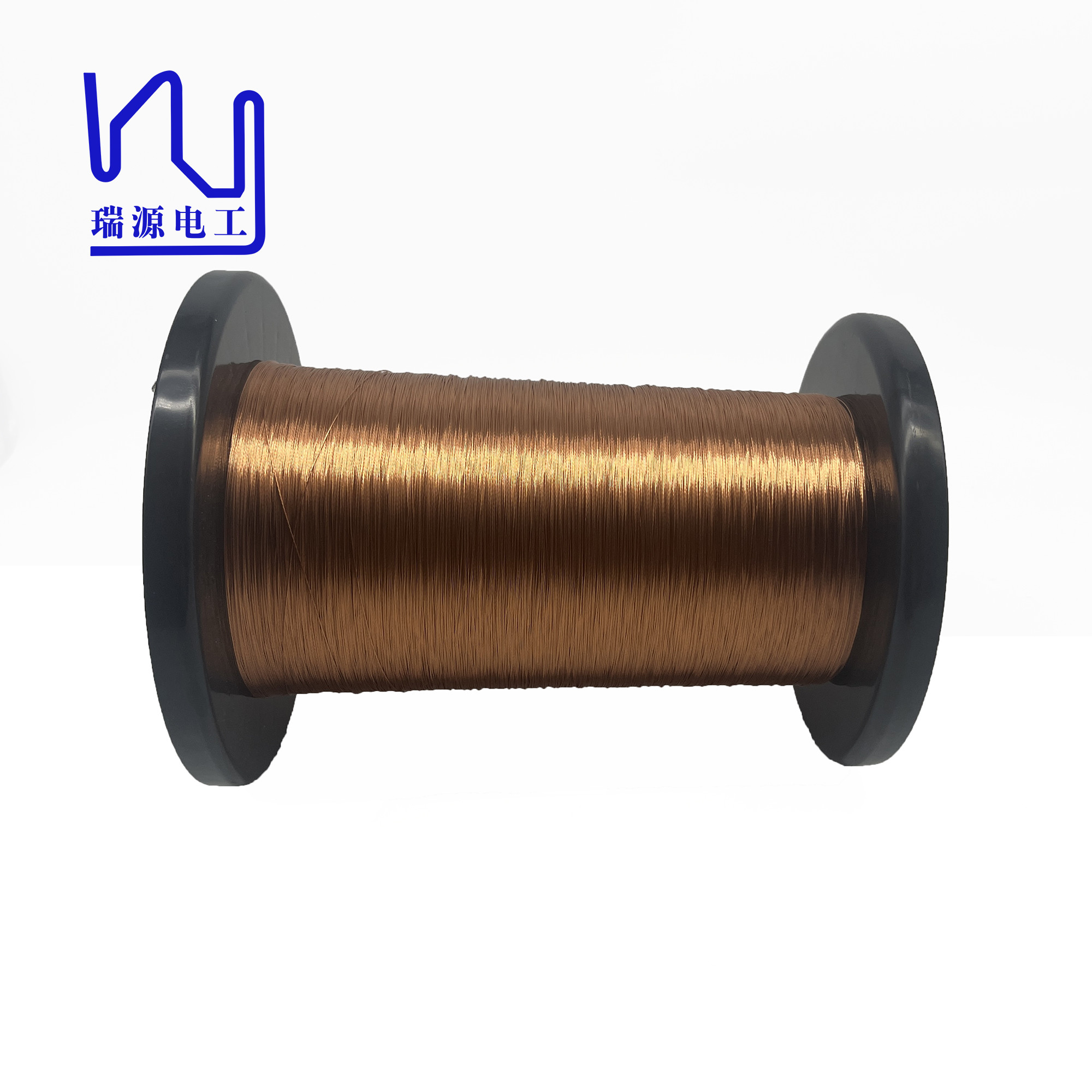

7 Strands Self Bonding Stranded Wire for Winding coils
The stranding direction of this wire is S, ensuring that it is easy to wind and work with. The conductor diameter of 0.100±0.008 also ensures that it is easy to handle and work with. The pitch of this wire is 9.18±15%, providing the perfect balance between flexibility and durability.
Our hot wind self adhesive litz wire is designed to make your work easier and save you time. With its self-adhesive properties, it is easy to apply and secure. This ensures that your motor coils are well insulated and protected from damage.
This stranded copper wire is the perfect choice for those looking for a reliable and durable solution for their motor coil needs. It is designed to provide excellent performance and longevity, ensuring that your motor coils are able to function optimally for a long time.
Overall, our 0.1mmx7 self adhesive copper litz wire for motor coils is a great choice for those looking for a high-quality, reliable, and durable solution for their motor coil needs. With its excellent conductivity, easy handling, and self-adhesive properties, it is sure to make your work easier and more efficient.
|
Product Name: |
0.1mmx7 self adhesive copper litz wire for motor coils |
|
Product Category: |
Copper Litz Wire |
|
Key Word: |
0.1mmx7 Self Adhesive Copper Litz Wire For Motor Coils |
|
Diameter: |
0.1mm |
|
Conductor diameter: |
0.100±0.008 |
|
Single wire outer diameter: |
0.118-0.14 |
|
Appearance: |
Smooth |
|
Insulation: |
Enamel |
|
Breakdown voltage: |
>2000V |
