| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.1mm | Number Of Strands: | 600 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Silver | Key Word: | Custom 0.1mm USTC Stranded Copper Wire Self Bonding Silk Covered Litz Wire |
| Product Name: | Custom 0.1mm USTC Stranded Copper Wire Self Bonding Silk Covered Litz Wire | ||
| Highlight: | Self Bonding USTC Stranded Copper Wire,Silk Covered USTC Stranded Copper Wire,0.1mm USTC Stranded Copper Wire |
||

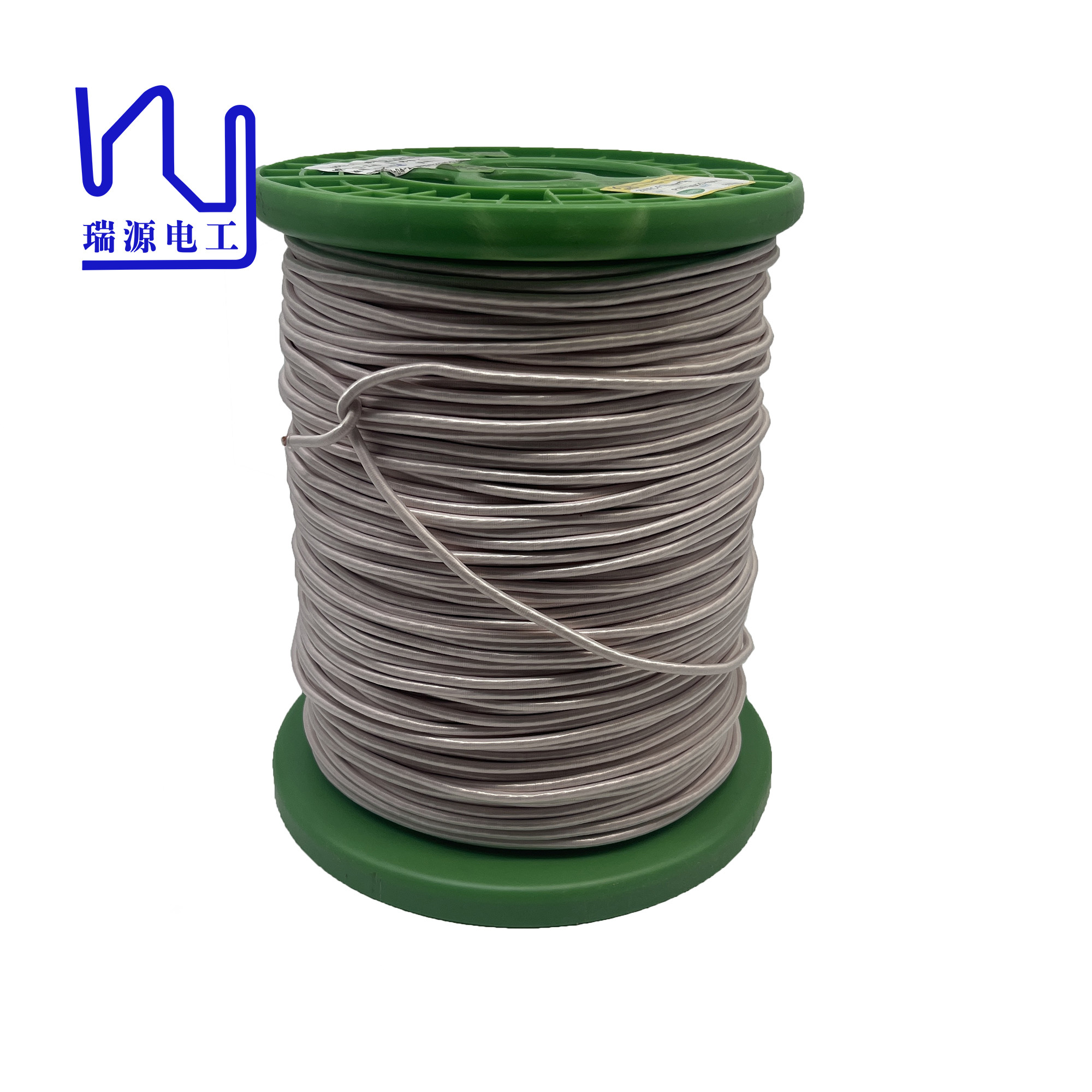

Custom 0.1mm USTC Stranded Copper Wire Self Bonding Silk Covered Litz Wire
Our custom nylon served litz wire is a versatile and reliable solution for a variety of industrial applications. With its superior performance and customizable features, it is ideal for transformers, inductors and other electrical components. Trust our commitment to quality and customization and experience the difference our litz wire can make for your industrial operations.
|
Description Conductor diameter* Strand number |
2UDTC-F 0. 10*600 |
|
|
Single wire |
Conductor diameter( mm) | 0.100 |
| Conductor diameter tolerance ( mm) | ±0.003 | |
| Minimal insulation thickness( mm) | 0.005 | |
| Maximal overall diameter ( mm) | 0.125 | |
| Thermal Class(℃) | 155 | |
|
Strand Composition |
Strand number (strands ) | 100*6 |
| Pitch(mm) | 65±10 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Nylon |
| Material specs( mm* mm or D) | 300+300 | |
| Times of Wrapping | 2 | |
| Overlap(%) or thickness( mm) , mini | 0.05 | |
| Wrapping direction | Z ,S | |
|
Characteristics |
Max O. D (mm) | 3.78 |
| Max pin holes 个/6m | 98 | |
| Max resistance (Ω/Km at20℃) | 3.968 | |
| Mini breakdown voltage (V ) | 1100 | |
