| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.1mm | Number Of Strands: | 600 |
|---|---|---|---|
| Jacket: | Nylon | Color: | Natural |
| Conductor Material: | Copper | Key Word: | Conductivity Real Silver Litz Wire 84 Strands 0.071mm Single Wire2UDTC-F 0. 10mm*600 Nylon Served Litz Wire Silk Covered Copper Stranded Wire |
| Product Name: | 2UDTC-F 0. 10mm*600 Nylon Served Litz Wire Silk Covered Copper Stranded Wire | ||
| Highlight: | 2UDTC-F Nylon Served litz wire,Silk Covered Nylon Served litz wire,2UDTC-F custom litz wire |
||

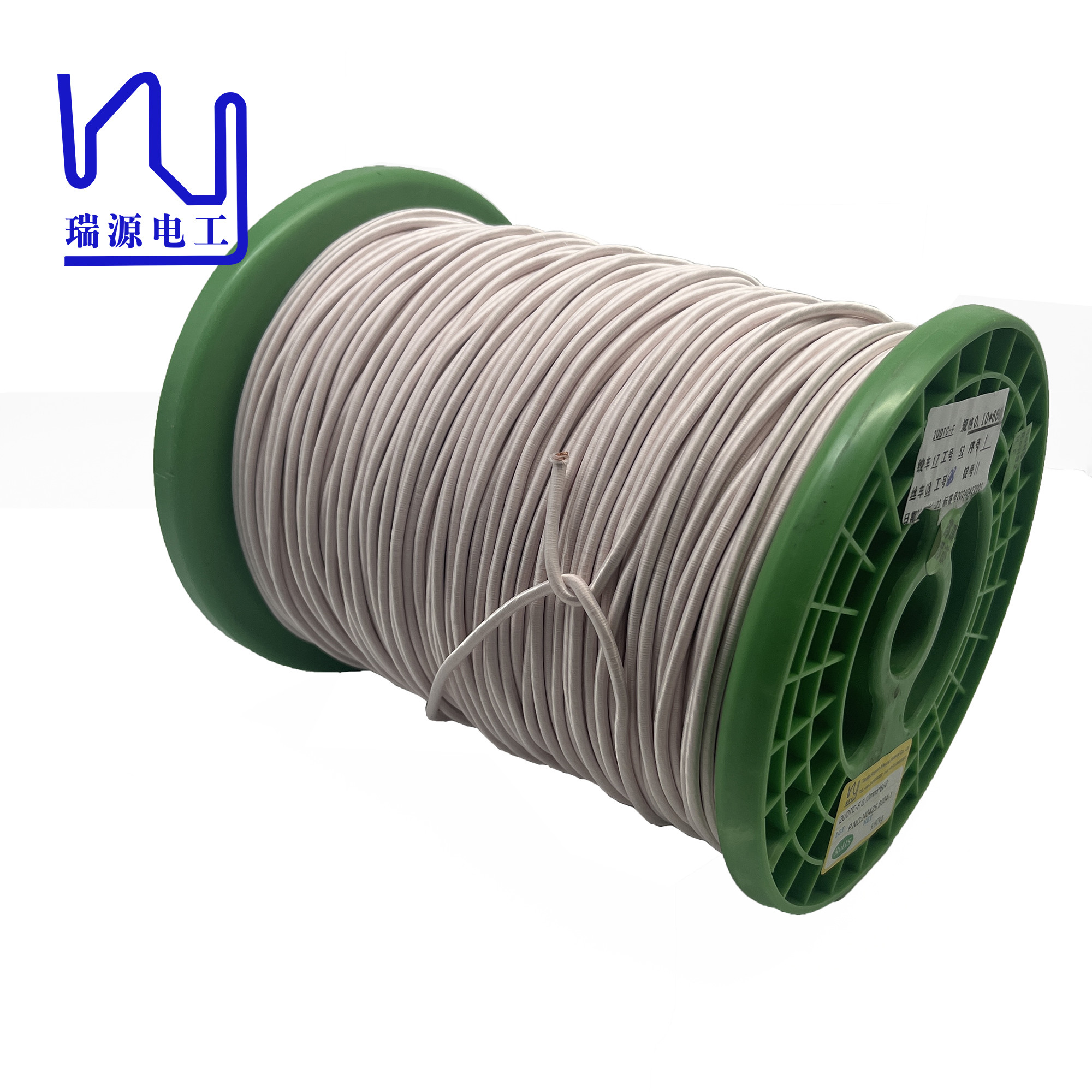

2UDTC-F 0. 10mm*600 Nylon Served litz wire Silk Covered Copper Stranded Wire
Single wire diameter: 0.1mm
No. Of strands: 600
Temperature resistance: F
Jacket: nylon yarn
Our commitment to customization means we can meet your specific requirements, offering small batches with MOQ of 20KG.This nylon served litz wire is designed to meet the needs of a variety of industrial applications, providing superior performance and reliability. Whether used in transformers, inductors or other electrical components, this Litz wire has excellent conductivity and efficiency, making it ideal for demanding industrial environments.
|
Description Conductor diameter* Strand number |
2UDTC-F 0. 10*600 |
|
|
Single wire |
Conductor diameter( mm) | 0.100 |
| Conductor diameter tolerance ( mm) | ±0.003 | |
| Minimal insulation thickness( mm) | 0.005 | |
| Maximal overall diameter ( mm) | 0.125 | |
| Thermal Class(℃) | 155 | |
|
Strand Composition |
Strand number (strands ) | 100*6 |
| Pitch(mm) | 65±10 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Nylon |
| Material specs( mm* mm or D) | 300+300 | |
| Times of Wrapping | 2 | |
| Overlap(%) or thickness( mm) , mini | 0.05 | |
| Wrapping direction | Z ,S | |
|
Characteristics |
Max O. D (mm) | 3.78 |
| Max pin holes 个/6m | 98 | |
| Max resistance (Ω/Km at20℃) | 3.968 | |
| Mini breakdown voltage (V ) | 1100 | |
