| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom PET Flat Taped Litz Wire Copper Stranded Wire For Motor | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Conductor: | Copper |
| Insulation: | PET Film | Rated Temperature: | 180 |
| Key Word: | Custom PET Flat Taped Litz Wire Copper Stranded Wire For Motor | No. Of Strands: | 120 |
| Highlight: | Custom PET Flat Taped Litz Wire,Motor PET Flat Taped Litz Wire,Copper Stranded Wire For Motor |
||

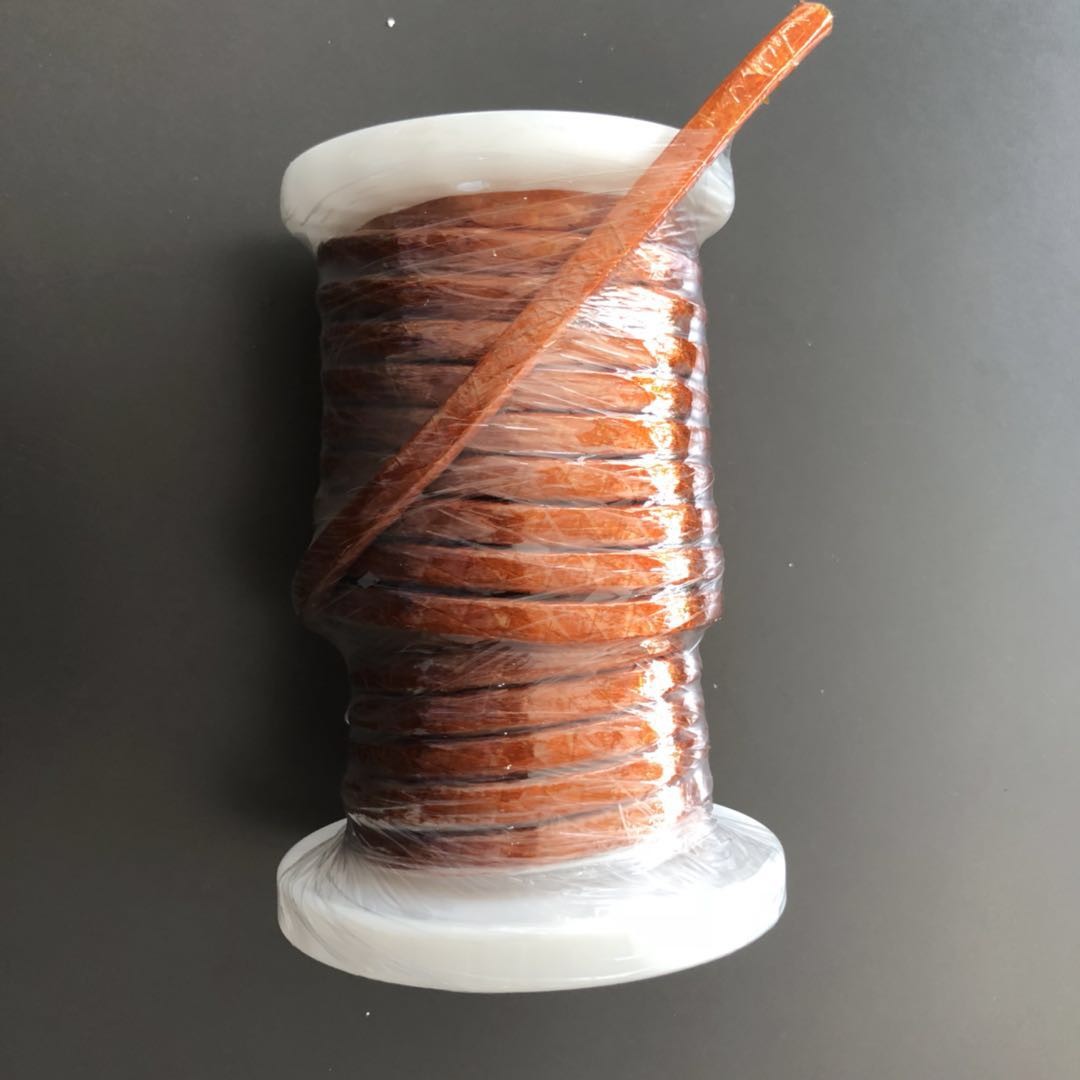

Custom PET Flat Taped Litz Wire Copper Stranded Wire For Motor
Flat taped litz wire can be used in motors. Litz wire is often used in applications where high-frequency currents are present, and motors can generate these currents due to the switching action of the magnetic fields. In motors, litz wire helps to reduce the skin and proximity effects, which can be particularly significant at high frequencies.
By using flat taped litz wire in motors, the efficiency can be improved, and losses due to high-frequency currents can be minimized. This can result in better performance and higher power output for the motor. Additionally, the flexibility of litz wire allows for easier installation and integration within a motor assembly.
|
Item
|
Conductor diameter mm |
Single wire diameter mm |
O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitc (mm) |
No. Of strands |
Tape/overlap % |
|
Tech requirement |
0.4 |
0.422-0.439 |
6.87 |
0.001181 |
6000 |
130 |
120 |
50 |
|
± |
0.005
|
|
Max |
Max. |
Min |
20 |
|
Min |
|
1 |
0.396-0.40 |
0.424-0.432 |
6.04-6.64 |
0.001116 |
13000 |
130 |
120 |
55 |
