| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom Flat Taped Litz Wire Kapton Served Copper Conductor For Motor | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Conductor: | Copper |
| Insulation: | PI Film | Rated Temperature: | 180 |
| Key Word: | Custom Flat Taped Litz Wire Kapton Served Copper Conductor For Motor | No. Of Strands: | 120 |
| Highlight: | Copper Conductor flat Taped litz wire,Custom flat Taped litz wire,Motor flat Taped litz wire |
||

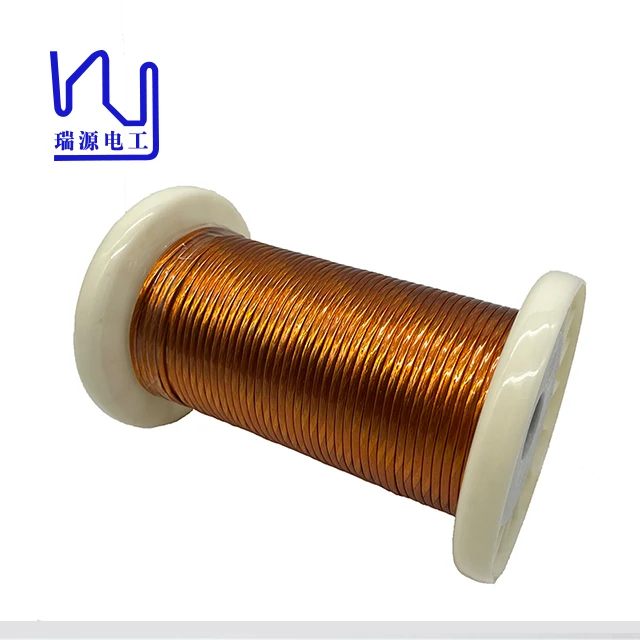

Custom flat Taped litz wire Kapton served Copper Conductor For Motor
Flat taped litz wire refers to a type of electrical wire that is made up of several thin strands of wire that are individually insulated and then twisted together to form a single bundle. his type of wire is commonly used in high-frequency applications, such as inductors and transformers, where minimizing electrical losses is important.
The main purpose of using litz wire is to reduce skin and proximity effect. These effects can cause increased resistance and power losses at high frequencies due to the uneven distribution of electrical current through the wire. By dividing the current-carrying strands into smaller units and twisting them together, the effects of skin and proximity are minimized, resulting in lower resistance and improved efficiency.
|
Item
|
Conductor diameter mm |
Single wire diameter mm |
O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitc (mm) |
No. Of strands |
Tape/overlap % |
|
Tech requirement |
0.4 |
0.422-0.439 |
6.87 |
0.001181 |
6000 |
130 |
120 |
50 |
|
± |
0.005
|
|
Max |
Max. |
Min |
20 |
|
Min |
|
1 |
0.396-0.40 |
0.424-0.432 |
6.04-6.64 |
0.001116 |
13000 |
130 |
120 |
55 |
