| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.1mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100kg/week |
| Product Name: | Super 0.1*50 Red Natural Silk Served Litz Wire For High Frequency Transformer | Insulation: | Polyurethane |
|---|---|---|---|
| Size: | 0.1mm | Quantity: | 10kg/roll |
| Key Word: | Super 0.1*50 Red Natural Silk Served Litz Wire For High Frequency Transformer | NO. Of Strands: | 50 |
| Cover: | Natural Silk | ||
| Highlight: | Red Natural Silk Served Litz Wire,Natural Silk Served Litz Wire,High Frequency Transformer Litz Wire |
||

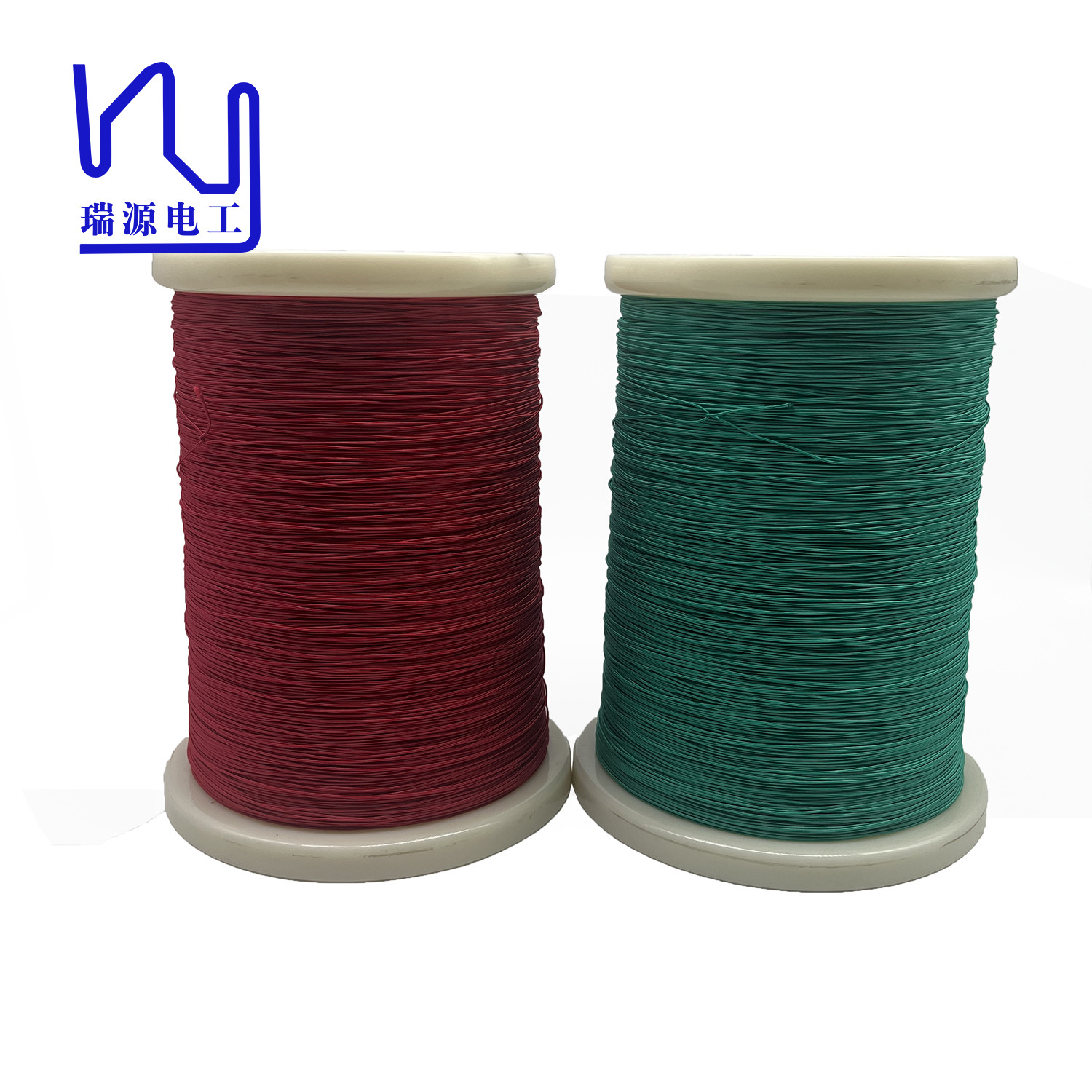

Super 0.1*50 Red Natural Silk Served Litz Wire For High Frequency Transformer
Our silk covered litz wire is the best choice for applications that require superior performance and reliability. The unique combination of natural silk, copper litz wire and customizable options is a testament to our commitment to providing high quality solutions to our customers.
We invite you to experience the difference our professional litz wire can make in your application, and we're confident it will exceed your expectations in terms of quality, durability and performance.
|
Item |
Unit |
Technical requests |
Reality Value |
|
|
Conductor Diameter |
mm |
0.1±0.003 |
0.098 |
0.100 |
|
Single wire diameter |
mm |
0.107-0.125 |
0.110 |
0.114 |
|
O.D. |
mm |
Max. 1.20 |
0.88 |
0.88 |
|
Resistance (20℃) |
Ω/m |
Max.0.04762 |
0.04448 |
0.04464 |
|
Breakdown Voltage |
V |
Min.1100 |
1400 |
2200 |
|
Pitch |
mm |
10±2 |
√ |
√ |
|
No. of strands |
|
50 |
√ |
√ |
|
Pinhole |
faults/6m |
Max. 35 |
6 |
8 |
| Key word |
Super 0.1*50 Red Natural Silk Served Litz Wire For High Frequency Transformer |
|||
