| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.1mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100kg/week |
| Product Name: | Red / Green Color Custom USTC Wire 0.1mm X 50 Copper Conductor Natural Silk Served | Insulation: | Polyurethane |
|---|---|---|---|
| Size: | 0.1mm | Quantity: | 10kg/roll |
| Key Word: | Red / Green Color Custom USTC Wire 0.1mm X 50 Copper Conductor Natural Silk Served | NO. Of Strands: | 50 |
| Cover: | Natural Silk | ||
| Highlight: | Green Color USTC Wire,Natural Silk Served USTC Wire,0.1mm USTC Wire |
||

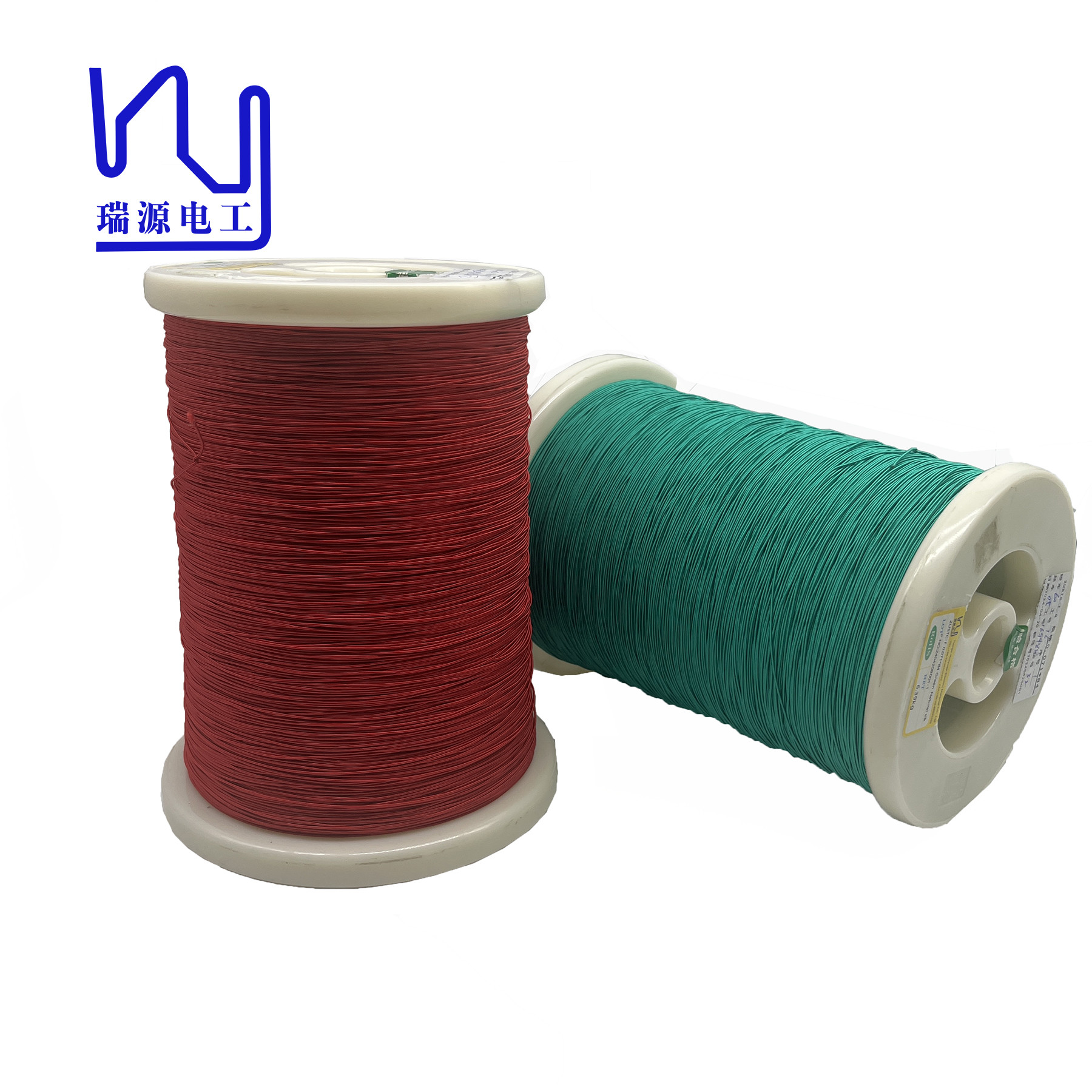

Red / Green Color Custom USTC Wire 0.1mm X 50 Copper Conductor Natural Silk Served
We understand the importance of precision and quality in electrical components, which is why we take great care when producing litz wire to the highest standards.
Our commitment to customization means we can tailor the wire to your exact specifications, ensuring it is seamlessly integrated into your specific application. Whether you require specific specifications, lengths or configurations, we have the expertise and capabilities to provide a custom solution that meets your unique requirements.
|
Item |
Unit |
Technical requests |
Reality Value |
|
|
Conductor Diameter |
mm |
0.1±0.003 |
0.098 |
0.100 |
|
Single wire diameter |
mm |
0.107-0.125 |
0.110 |
0.114 |
|
O.D. |
mm |
Max. 1.20 |
0.88 |
0.88 |
|
Resistance (20℃) |
Ω/m |
Max.0.04762 |
0.04448 |
0.04464 |
|
Breakdown Voltage |
V |
Min.1100 |
1400 |
2200 |
|
Pitch |
mm |
10±2 |
√ |
√ |
|
No. of strands |
|
50 |
√ |
√ |
|
Pinhole |
faults/6m |
Max. 35 |
6 |
8 |
| Key word |
Red / Green Color Custom USTC Wire 0.1mm X 50 Copper Conductor Natural Silk Served |
|||
