| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.1mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100kg/week |
| Product Name: | Red Silk Covered Wire 0.1mmx50 Litz Wire Served Natural Silk For Electric Motor Winding Wire | Insulation: | Polyurethane |
|---|---|---|---|
| Size: | 0.1mm | Quantity: | 10kg/roll |
| Key Word: | Red Silk Covered Wire 0.1mmx50 Litz Wire Served Natural Silk For Electric Motor Winding Wire | NO. Of Strands: | 50 |
| Cover: | Natural Silk | ||
| Highlight: | electric motor winding wire,Red silk covered wire,0.1mmx50 litz wire |
||

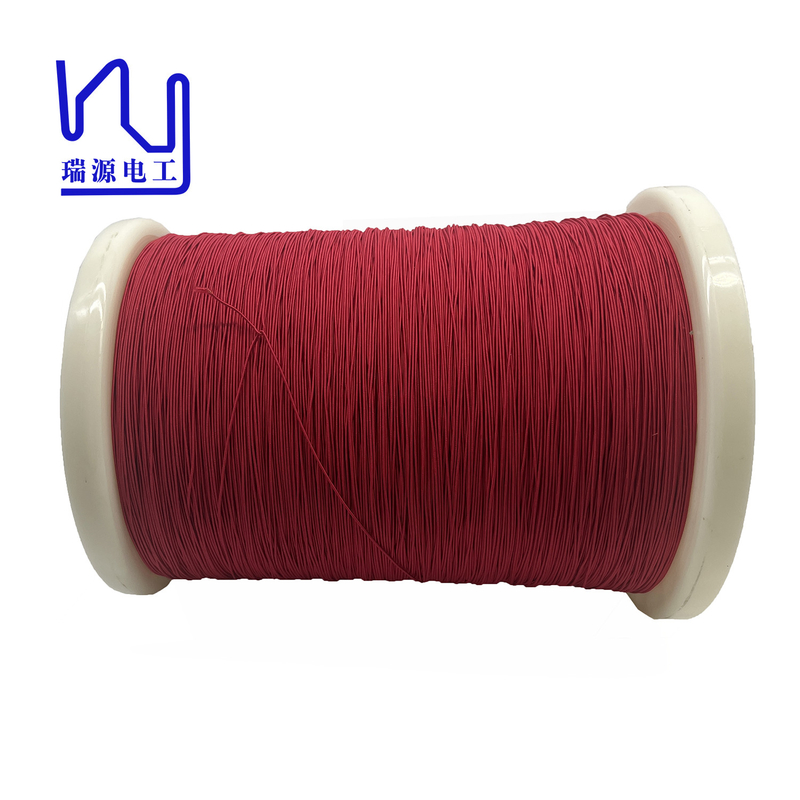

Red silk covered wire 0.1mmx50 litz wire served natural silk for electric motor winding wire
This red silk covered litz wire is a unique high quality product designed for a wide range of applications.
This litz wire is served with natural silk for superior durability and performance. 0.1mmx50 Copper Litz Wire along with natural silk provides excellent conductivity and insulation, making it ideal for motor winding wire applications. We are proud to offer custom litz wire solutions based on your specific technical requirements, and we are happy to support sample orders for your convenience.
|
Item |
Unit |
Technical requests |
Reality Value |
|
|
Conductor Diameter |
mm |
0.1±0.003 |
0.098 |
0.100 |
|
Single wire diameter |
mm |
0.107-0.125 |
0.110 |
0.114 |
|
O.D. |
mm |
Max. 1.20 |
0.88 |
0.88 |
|
Resistance (20℃) |
Ω/m |
Max.0.04762 |
0.04448 |
0.04464 |
|
Breakdown Voltage |
V |
Min.1100 |
1400 |
2200 |
|
Pitch |
mm |
10±2 |
√ |
√ |
|
No. of strands |
|
50 |
√ |
√ |
|
Pinhole |
faults/6m |
Max. 35 |
6 |
8 |
