| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Breakdown Voltage: | Min. 2000V | Number Of Strands: | 84 |
|---|---|---|---|
| Jacket: | Real Silk | Theraml Grade: | 155 |
| Key Word: | 0.2mm X 84 High Frequency Nylon Serving Copper Litz Wire | Conductor Material: | Copper |
| Product Name: | 0.2mm X 84 High Frequency Nylon Serving Copper Litz Wire | Single Wire: | 0.2mm |
| Highlight: | High Frequency Copper Litz Wire,0.2mm X 84 Copper Litz Wire,Nylon Serving Copper Litz Wire |
||

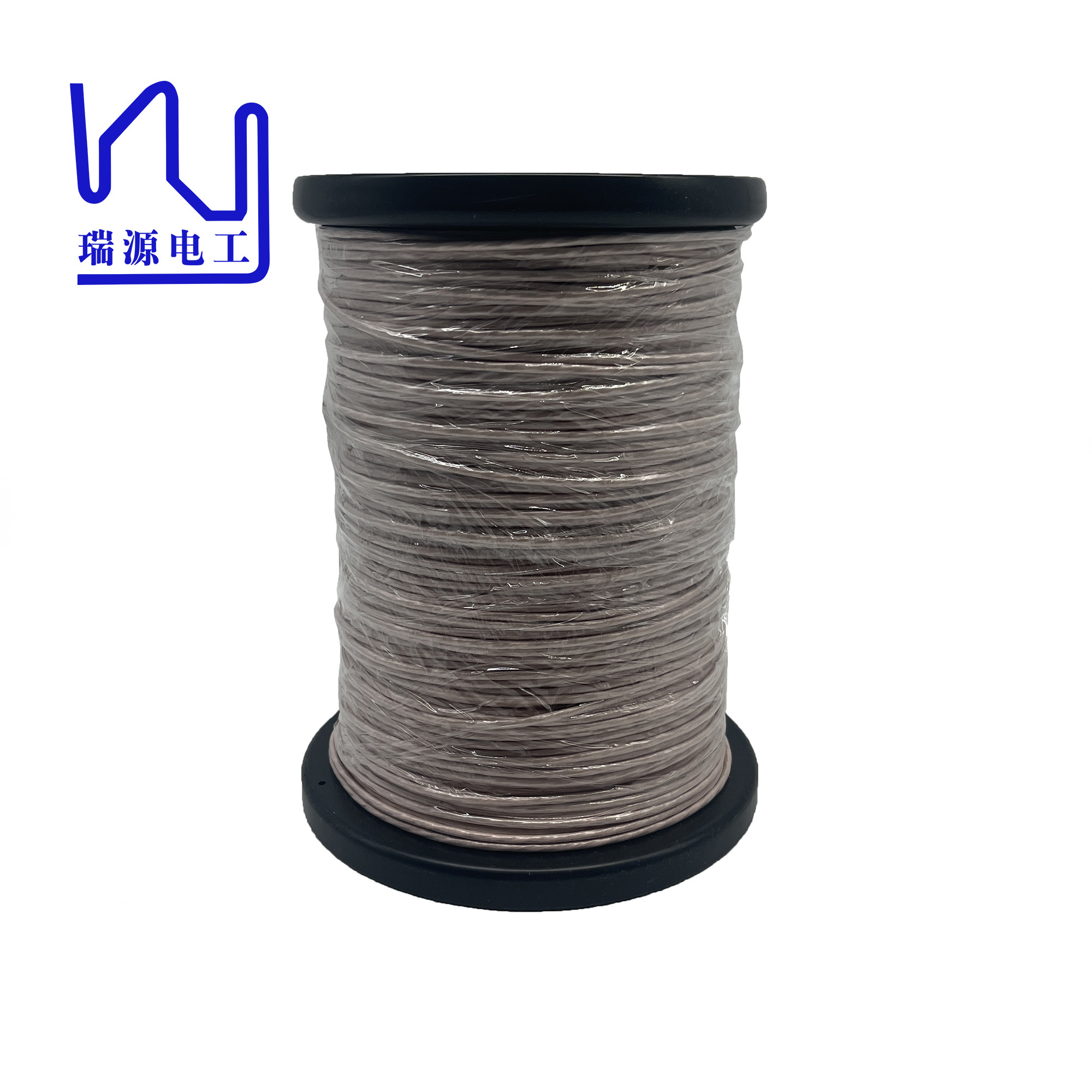

0.2mm X 84 High Frequency Nylon Serving Copper Litz Wire
One of the main advantages of nylon served litz wire is its enhanced mechanical strength and durability. The nylon covering provides protection to each wire from damage caused by external factors such as abrasion, bending, and stretching. This ensures the longevity and reliability of the wire, making it suitable for demanding applications, especially in high-frequency transformers where consistent performance is critical.
| Item | Standard | Test value | ||
| Sample 1 | Sample 2 | Sample 3 | ||
| Single wire diameter mm | 0.224-0.246 | 0.225 | 0.227 | 0.228 |
| Conductor Diameter mm | 0.2±0.003 | 0.2 | 0.2 | 0.2 |
| O.D. mm | Max. 2.74 | 2.65 | 2.6 | 2.63 |
| Resistance (20℃) Ω/m | 6.87 | ok | ok | ok |
| Breakdown Voltage V | Min.2000 | 3900 | 3800 | 3700 |
| Pitch mm | 44±5% | 44 | 44 | 44 |
